B2410 • B2710 • B291 0 WSM, 12271
12010P80230
12010P80240
11900P80100
11900P80110
3

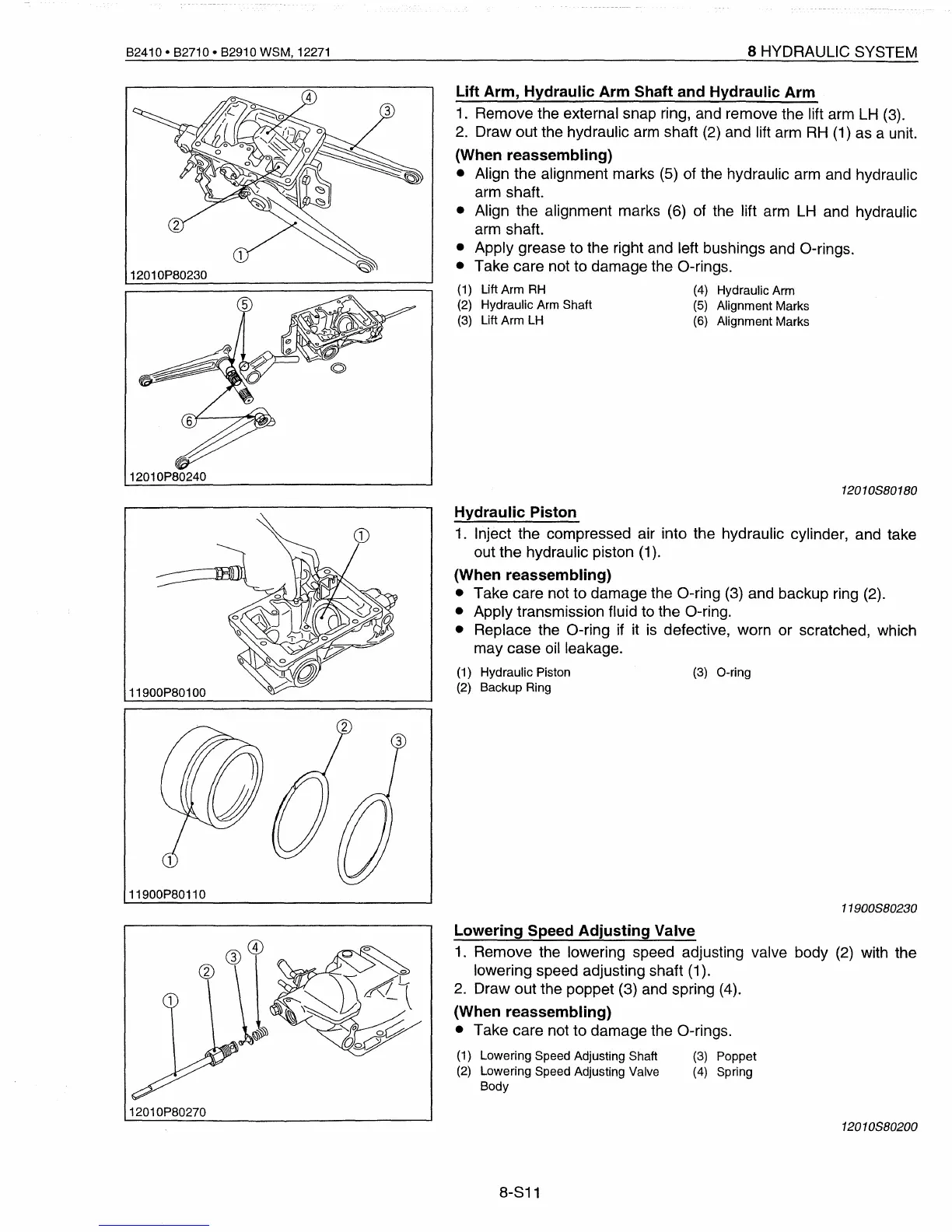

8 HYDRAULIC SYSTEM
Lift Arm, Hydraulic Arm Shaft and Hydraulic Arm
1. Remove the external snap ring, and remove the lift arm LH (3).
2. Draw out the hydraulic arm shaft (2) and lift arm RH (1) as a unit.
(When reassembling)
• Align the alignment marks (5) of the hydraulic arm and hydraulic
arm shaft.
• Align the alignment marks (6) of the lift arm
LH and hydraulic
arm shaft.
• Apply grease to the right and left bushings and O-rings.
• Take care not to damage the O-rings.
(1) Lift Arm RH (4) Hydraulic Arm
(2) Hydraulic Arm Shaft (5) Alignment Marks
(3) Lift Arm LH (6) Alignment Marks
12010580180
Hydraulic Piston
1. Inject the compressed air into the hydraulic cylinder, and take
out the hydraulic piston
(1).
(When reassembling)
• Take care not to damage the O-ring (3) and backup ring (2).
• Apply transmission fluid to the O-ring.
• Replace the O-ring if it is defective, worn or scratched, which
may case oil leakage.
(1) Hydraulic Piston (3) O-ring
(2) Backup Ring
11900580230
Lowering Speed Adjusting Valve
1. Remove the lowering speed adjusting valve body (2) with the
lowering speed adjusting shaft (1).
2. Draw out the poppet (3) and spring (4).
(When reassembling)
• Take care not to damage the O-rings.
12010P80270
(1) Lowering Speed Adjusting Shaft
(2) Lowering Speed Adjusting Valve
Body
8-S11
(3) Poppet
(4) Spring
12010580200

Kubota B2410 Specifications

General

Engine Type	Diesel
Engine Power	24 hp
Transmission	Hydrostatic
Type	Compact Utility Tractor
Drive	4WD
3-Point Hitch Category	Category I
Weight	1433 lbs
