11ASSEMBLY INSTRUCTIONS

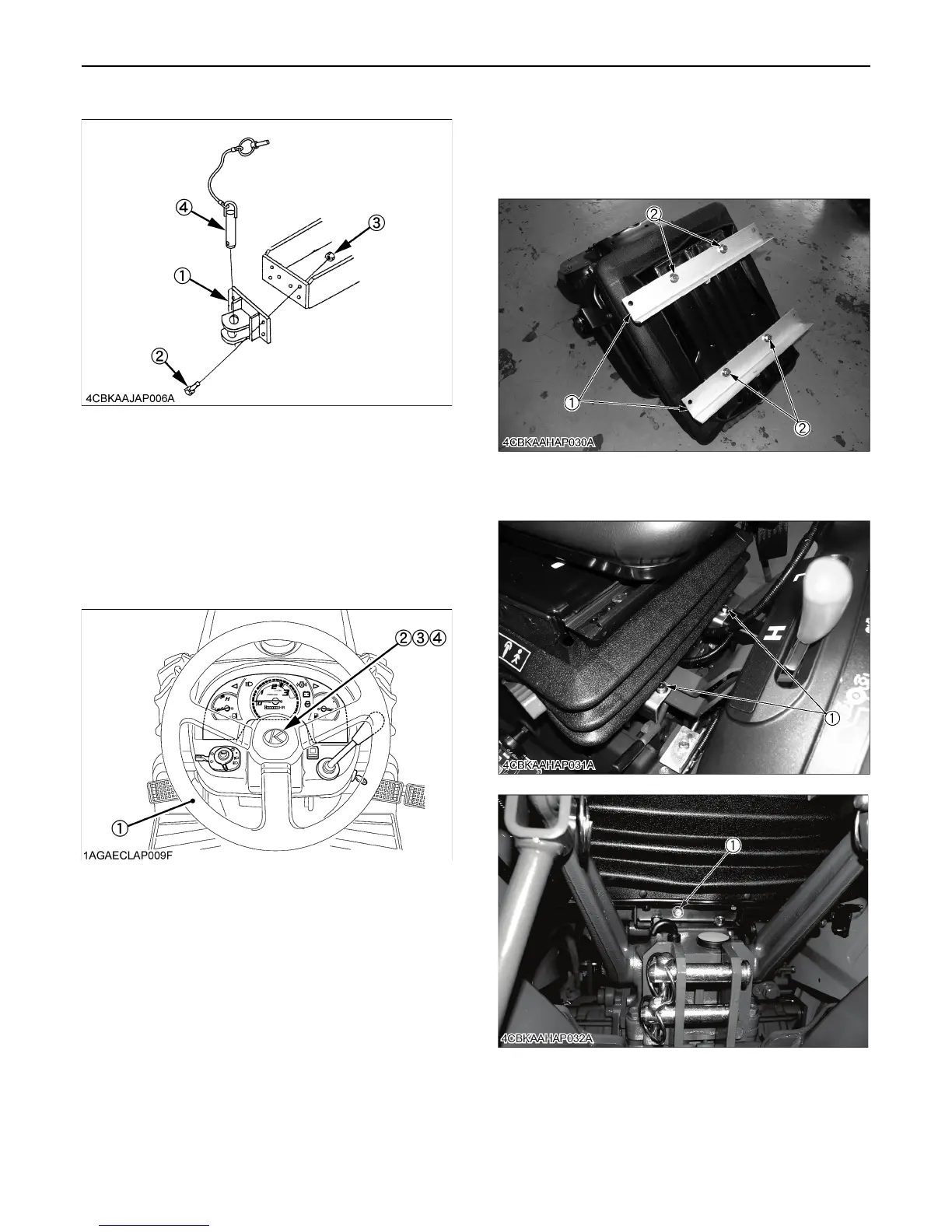

BAttaching the Steering Wheel
1. Attach the steering wheel (1) with one M12 nut (2) and
spring washer (3). The steering wheel should sit flat on
the steering column and be positioned as shown in the
figure.
2. Tightening torque for the M12 nut (2) should be 30 to
49 N-m (3.0 to 5.0 kgf-m).
3. Attach the pad (4).
BAttaching the Seat
1. Attach the upper seat support (1) to the seat with the
two M8 x 30 bolts (2).
2. Place the seat on the tractor and fix it with five M8 x 20
bolts (1).
