29THREE-POINT HITCH & DRAWBAR
BCheck Chains
Remove the snap pin and adjust the turnbuckle to control
horizontal sway of the implement.
After adjustment, re-set the snap pin.
DRAWBAR
[B3300SU : Option]
To avoid personal injury:
A Never pull from the top link, the rear axle or any
point above the drawbar. Doing so could cause
the tractor to tip over rearward causing
personal injury or death.
BAdjusting Drawbar Length
When towing an implement, use of (B) hole in drawbar is
recommended.
The acceptable drawbar load is provided in the
"IMPLEMENT LIMITATIONS" section.

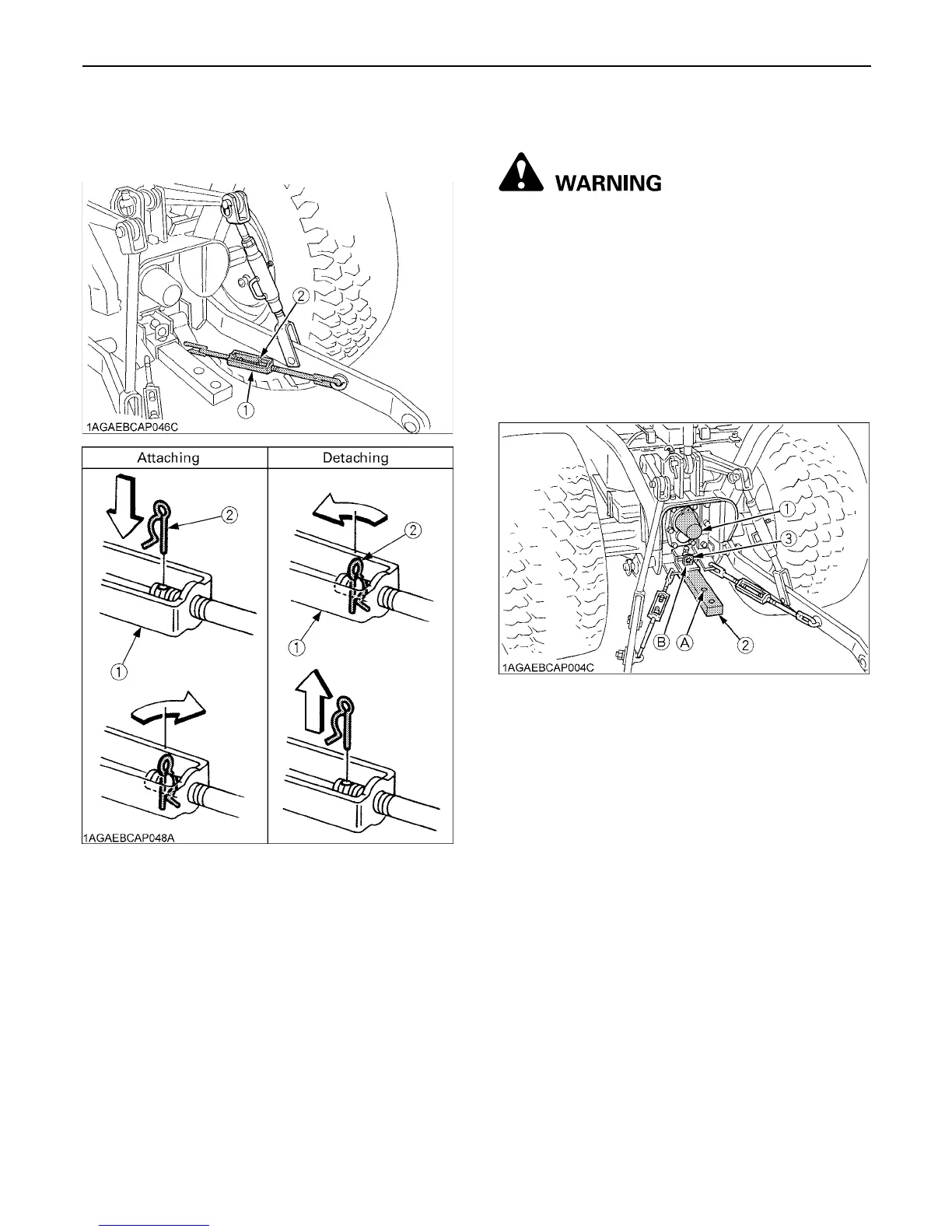

(1) Turnbuckle
(2) Snap pin
(1) PTO shaft
(2) Drawbar
(3) Drawbar pin
Holes : (A),(B)
