Tire sizes Inflation Pressure
Rear
26x12.00-12 Turf
100 kPa
(1.0 kgf/cm
2
)
[14 psi]
26x12.00-12 Bar
120 kPa
(1.2 kgf/cm
2
)
[17 psi]
26x12.00-12 Ind.
120 kPa
(1.2 kgf/cm
2
)
[17 psi]
Front
18x8.50-10 Turf
120 kPa
(1.2 kgf/cm
2
)
[17 psi]
18x8.50-10 Bar
150 kPa
(1.5 kgf/cm
2
)
[22 psi]
18x8.50-10 Ind.
150 kPa
(1.5 kgf/cm
2
)
[22 psi]

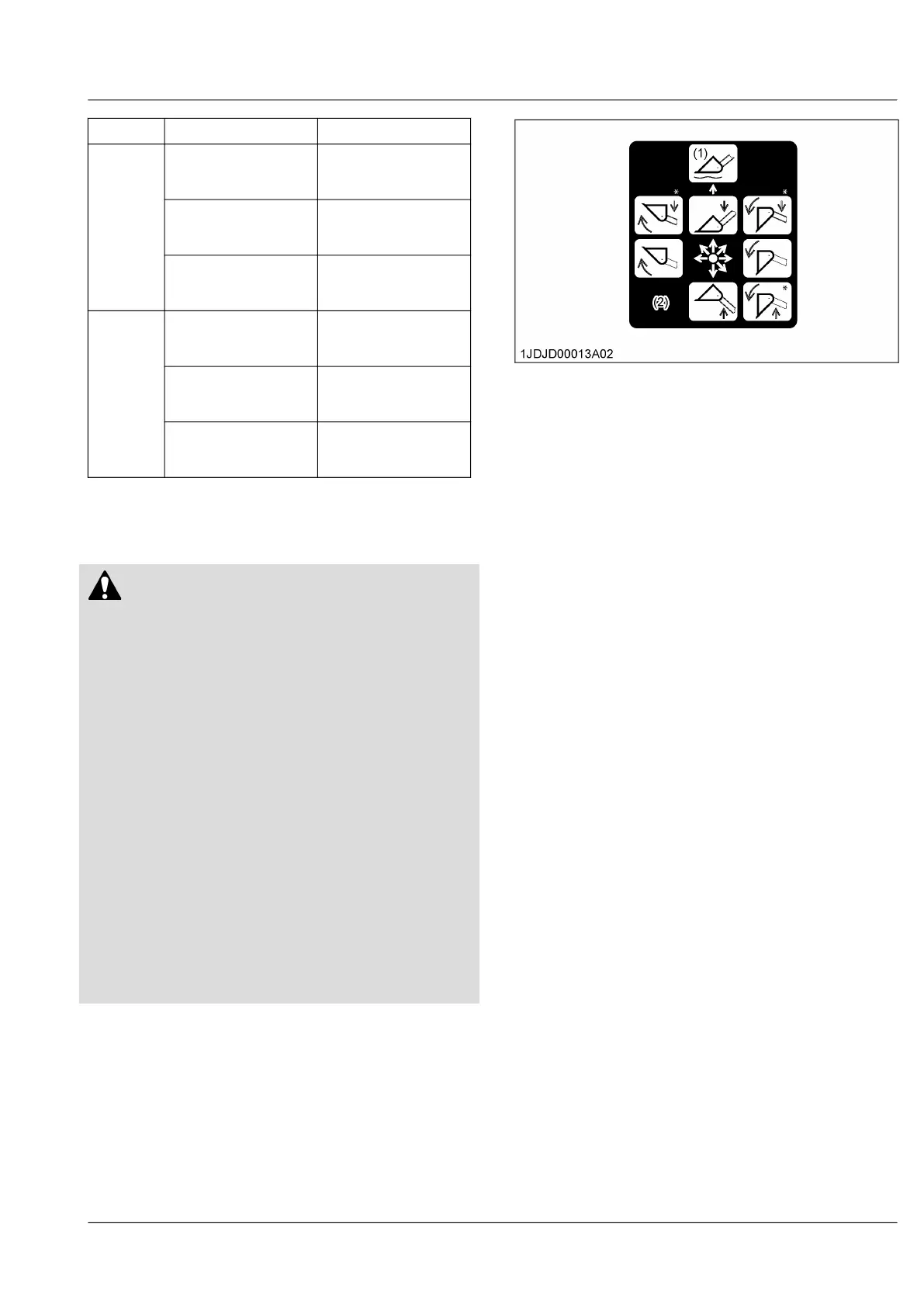

PERFORMING THE TEST
OPERATION OF THE LOADER
WARNING
To avoid personal injury or death:
• Keep engine speed at low idle during the test
operation of the loader.
• Escaping the hydraulic fluid under pressure can
obtain sufficient force to penetrate skin,
causing serious personal injury.
Before disconnecting lines, be sure to relieve all
pressure by moving the controls.
• Before applying pressure to the loader system,
be sure that all connections are tight and that
lines, tubes, and hoses are not damaged.
• Hydraulic fluid escaping from a very small hole
can be almost invisible. Use a piece of
cardboard or wood, rather than hands to search
for suspected leaks.
• If injured by escaping fluid, see a doctor at
once. Serious infection or allergic reaction may
develop if proper medical treatment is not
administered immediately.
• Do not move the loader-control-lever into the
float position when the bucket is off the ground.
To start the test operation, follow the following
procedure.
1. Slightly move the control lever from the “N” position.
2. Slowly raise the boom of the loader just enough for
the bucket to clear the ground when fully dumped.
3. Slowly operate the loader through the dump and roll
back cycles.
(A) Float (B) Blank
NOTE :
• When the lever is at each corner position
marked by asterisk “*”, cylinders of the boom
and bucket work at the same time. However, the
blank position (raise and roll back) is not
recommended for scooping because of
insufficient lift force.
IMPORTANT :
• If the boom or bucket of the loader does not
work in the directions indicated on the label,
follow the following procedure.
1. Lower the bucket to the ground.
2. Stop the engine.
3. Relieve all hydraulic pressure.
4. Recheck and correct all hydraulic
connections.
REMOVING AIR FROM THE
HYDRAULIC SYSTEM
1. Repeat operations of raising and lowering the boom
and the bucket until all the air is removed from the
hydraulic system and the hydraulic system
responds properly.
IMPORTANT :
• Do not move the control lever into the float
position when the bucket is off the ground.
PERFORMING THE TEST OPERATION OF THE LOADER
PRE-OPERATION CHECK OF THE LOADER
