81PERIODIC SERVICE OF THE TRACTOR
BCleaning Panel and Radiator Screen
To avoid personal injury:
A Be sure to stop the engine and remove the key
before removing the screen.
A Before checking or cleaning it, wait long
enough until it cools down.
1. Check panel screen to be sure they are clean from
debris.
2. Detach the radiator screen, and then remove all the
foreign material.
A If the dust or chaff is accumulated in the battery
compartment, open the panel and clean completely.
A Panel and radiator screen must be clean from debris
to prevent engine from overheating and to allow good
air intake for air cleaner.
A Be sure to reinstall the panel on the pillar completely
to prevent the invasion of dust.
A Be sure to stop the engine to avoid personal injury and
to allow good air intake for air cleaner.
BChecking Brake Pedal
1. Inspect the brake pedal for free travel, and smooth
operation.
2. Adjust if incorrect measurement is found:
(See "Adjusting Brake Pedal" in "EVERY 100 HOURS"
in "PERIODIC SERVICE OF THE TRACTOR"
section.)
BChecking Gauges, Meters and Easy
Checker(TM)
1. Inspect the instrument panel for broken gauge(s),
meter(s) and Easy Checker(TM) lamps.
2. Replace if broken.
BChecking Head Light, Hazard Light etc.
1. Inspect the lights for broken bulbs and lenses.
2. Replace if broken.
BChecking Seat Belt and ROPS
1. Always check condition of seat belt and ROPS
attaching hardware before operating tractor.
2. Replace if damaged.

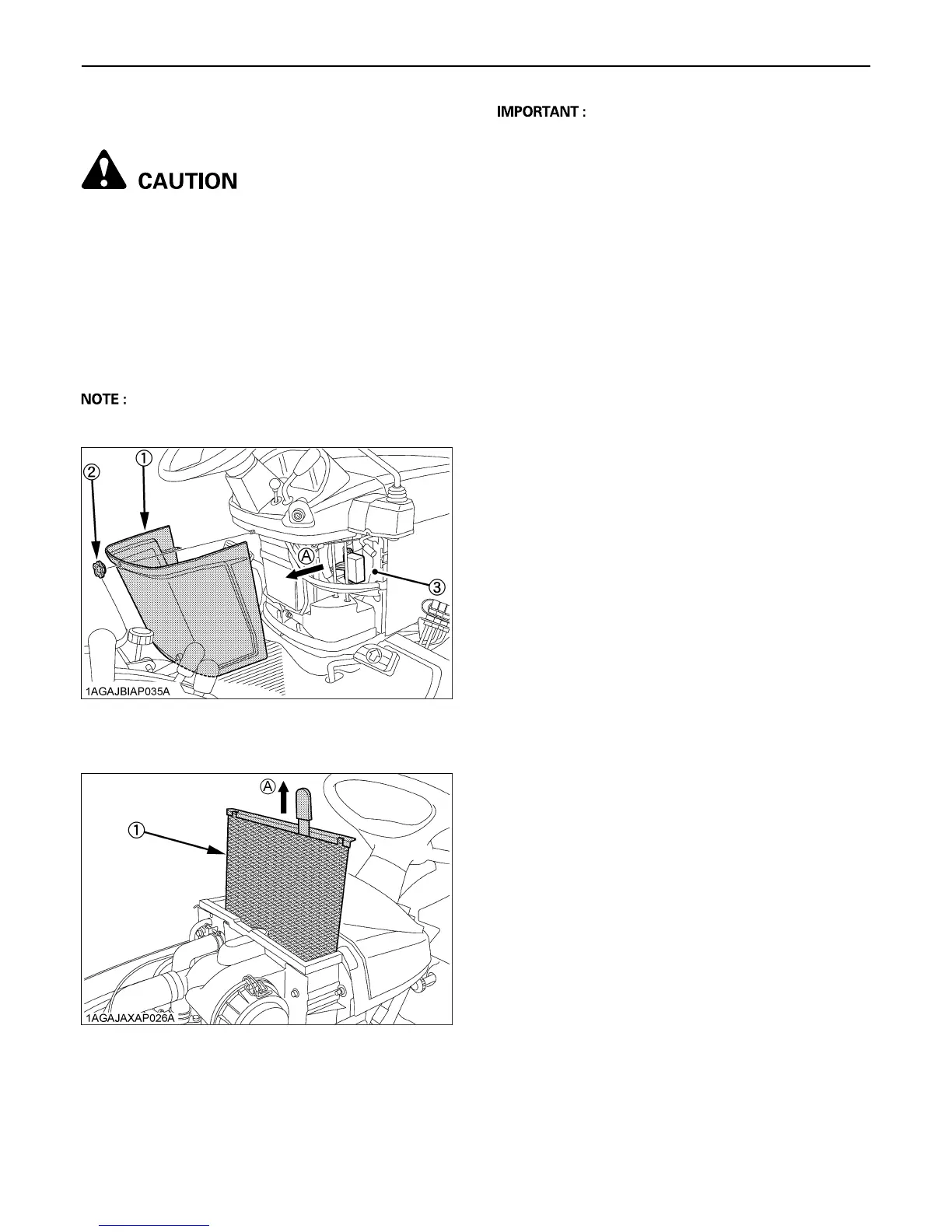

(1) Panel
(2) Knob
(3) Center pillar
(A) "DETACH"
(1) Radiator screen (A) "DETACH"
To Next Page
