Kubota D1102-B - Section V: Service Directions

KiSC issued 09, 2007 A


91

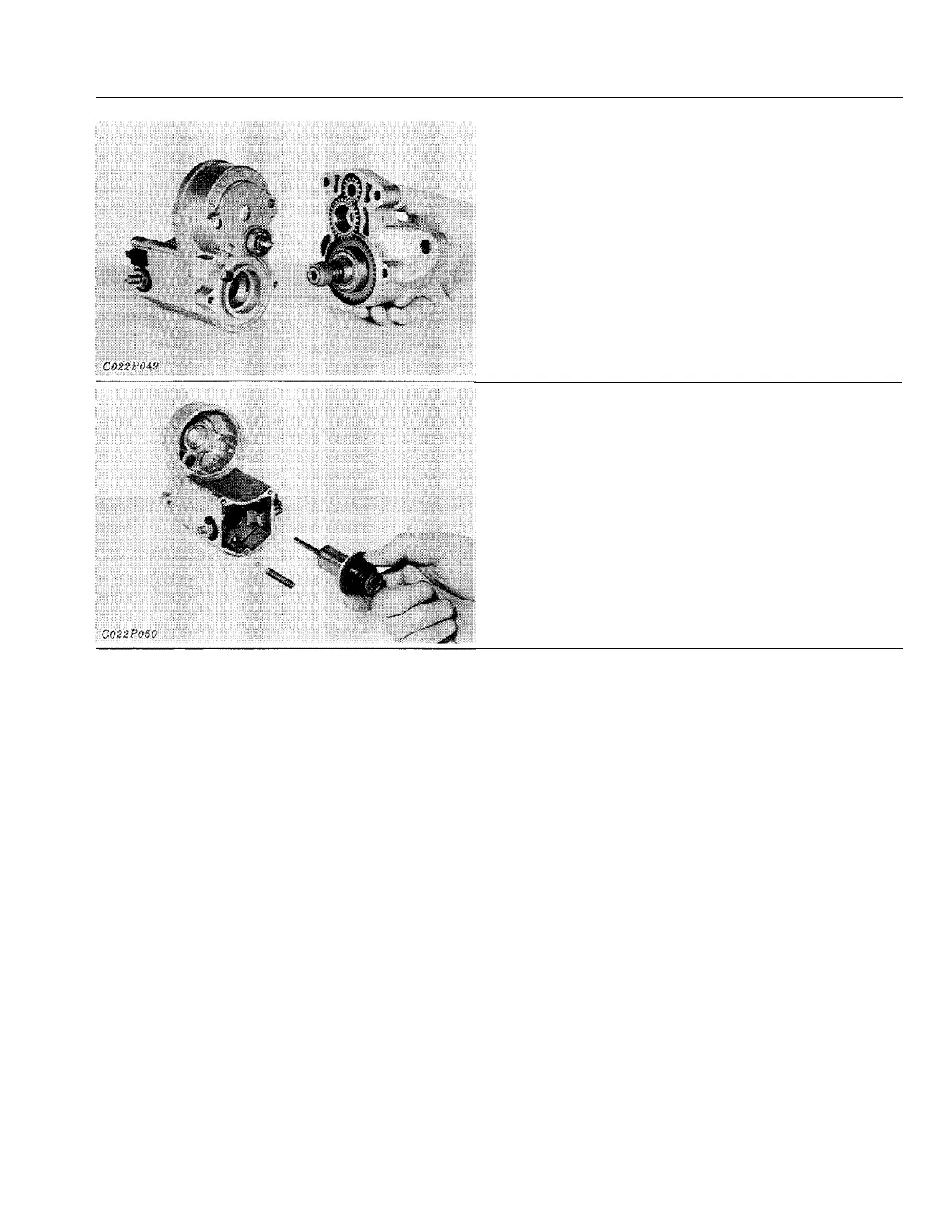

8 Removing Drive End Frame
1) Remove the drive end frame.
2) Remove the gears (drive pinion, idler gear) and clutch.
0 Removing Plunger
1) Remove the end cover from the magnet switch.
2) Draw the plunger out.
3) Remove steel balls.
