Kubota D662-E - Page 176

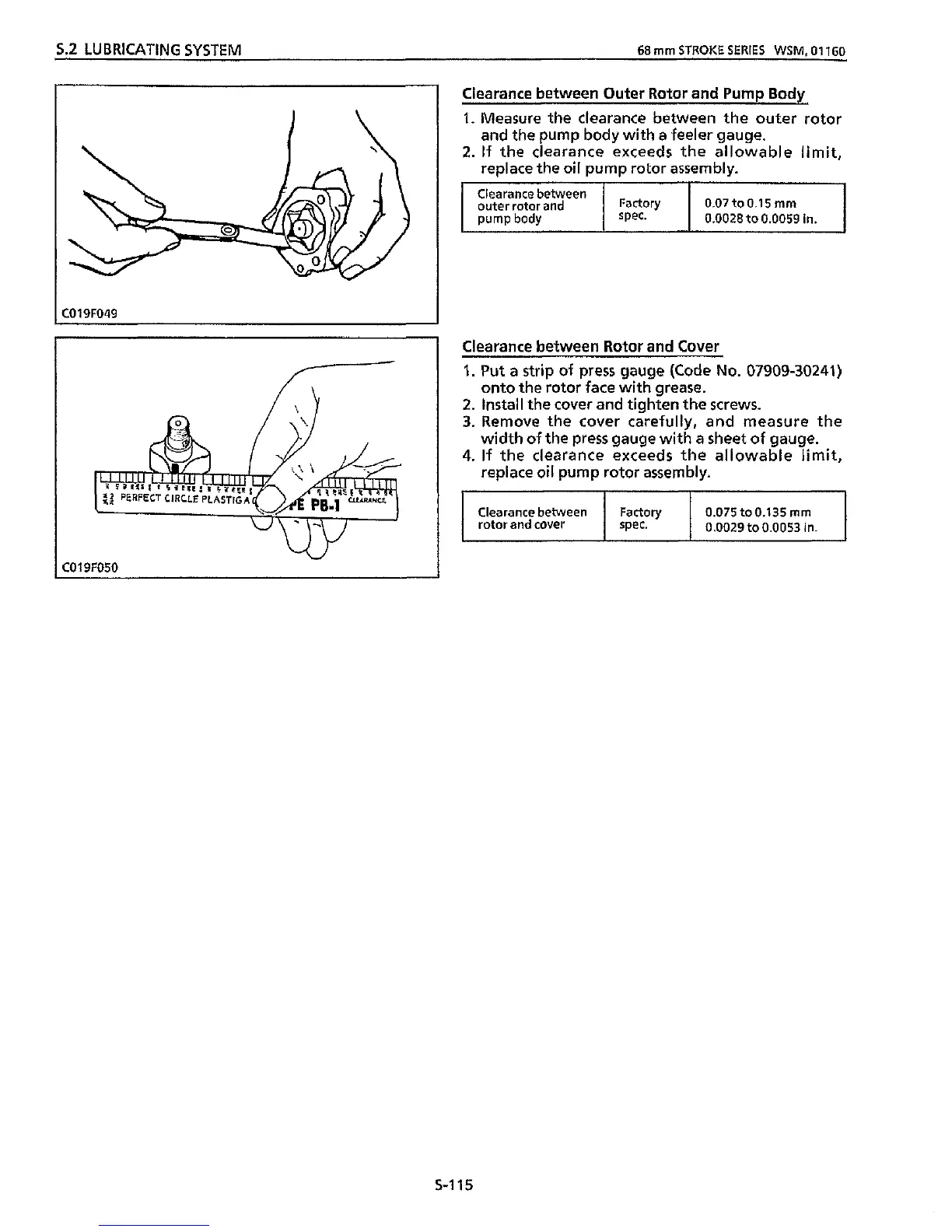

5.2 LUBRICATING SYSTEM
68 mm STROKE SERIES WSM, 01 160
Clearance between
outer rotor and
pump body
I C019F049 I
Factory
spec.
0.07 to 0.1 5 mm
0.0028 to 0.0059 in.
1 C019F050 I
Clearance between
rotor and cover
-
Clearance between Outer Rotor and Pump Body
1. Measure the clearance between the outer rotor
2. If the clearance exceeds the allowable limit,
and the pump body with a feeler gauge.
replace the oil pump rotor assembly.
1
Factory 0.075 to 0.135 mm
spec. 0.0029 to 0.0053 in.
5-1 15
