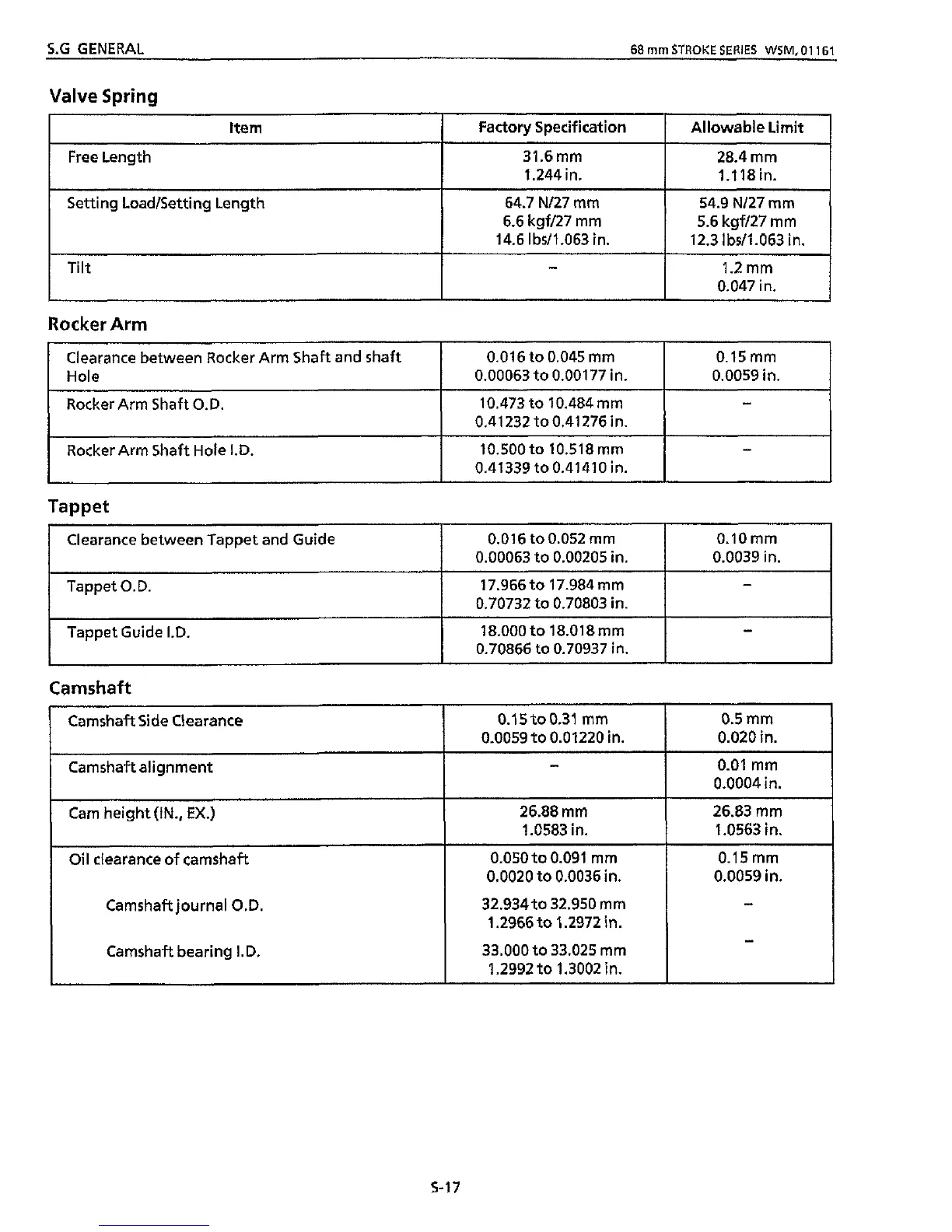

S.G GENERAL
68 mm STROKE SERIES WSM, 01 161
Item
Factory Specification
I Allowable Limit
Free Length
Setting LoadlSetting Length
Tilt
54.9 N127 mm
5.6 kgfl27 mm
12.3 lbs/1.063
in.
31.6 mm
1.244
in.
64.7 N/27 mm
6.6 kgf/27 mm
14.6 Ibd1.063
in.
1.2 mm
I 0.047in.
Clearance between Rocker Arm Shaft and shaft
Hole
Rocker Arm Shaft
O.D.
Rocker Arm Shaft Hole I.D.
Rocker Arm
0.016 to 0.045 mm
0.00063
to 0.00177 in.
10.473 to 10.484 mm -
0.41232 to 0.41276 in.
10.500 to 10.518 mm -
0.41339 to 0.41410 in.
0.15 mm
0.0059
in.
Tappet O.D.
Tappet Guide I.D.
Clearance between Tappet and Guide
17.966 to 17.984 mm
-
0.70732 to 0.70803 in.
18.000 to 18.018 mm -
0.70866 to 0.70937 in.
I
0.016 to 0.052 mm 0.10mm
I 0.00063 to 0.00205 in. I 0.0039in.
Camshaft
Camshaft alignment
I Cam height (IN., EX.)
Oil clearance of camshaft
Camshaft journal
O.D.
Camshaft bearing I.D.
0.1 5 to 0.31 mm
0.0059 to 0.01220 in.
0.5 mm
0.01 mm
I 0.0004in.
26.88mm
1.0583
in.
26.83mm
1.0563
in.
0.050 to 0.091 mm
0.0020 to 0.0036 in.
32.934 to 32.950 mm
1.2966
to 1.2972 in.
33.000 to 33.025 mm
1.2992
to 1.3002 in.
0.15 mm
0.0059
in.
5-17
