Kubota D902-E4B - Inspect the Transformer; Inspect the Volt Meter

19

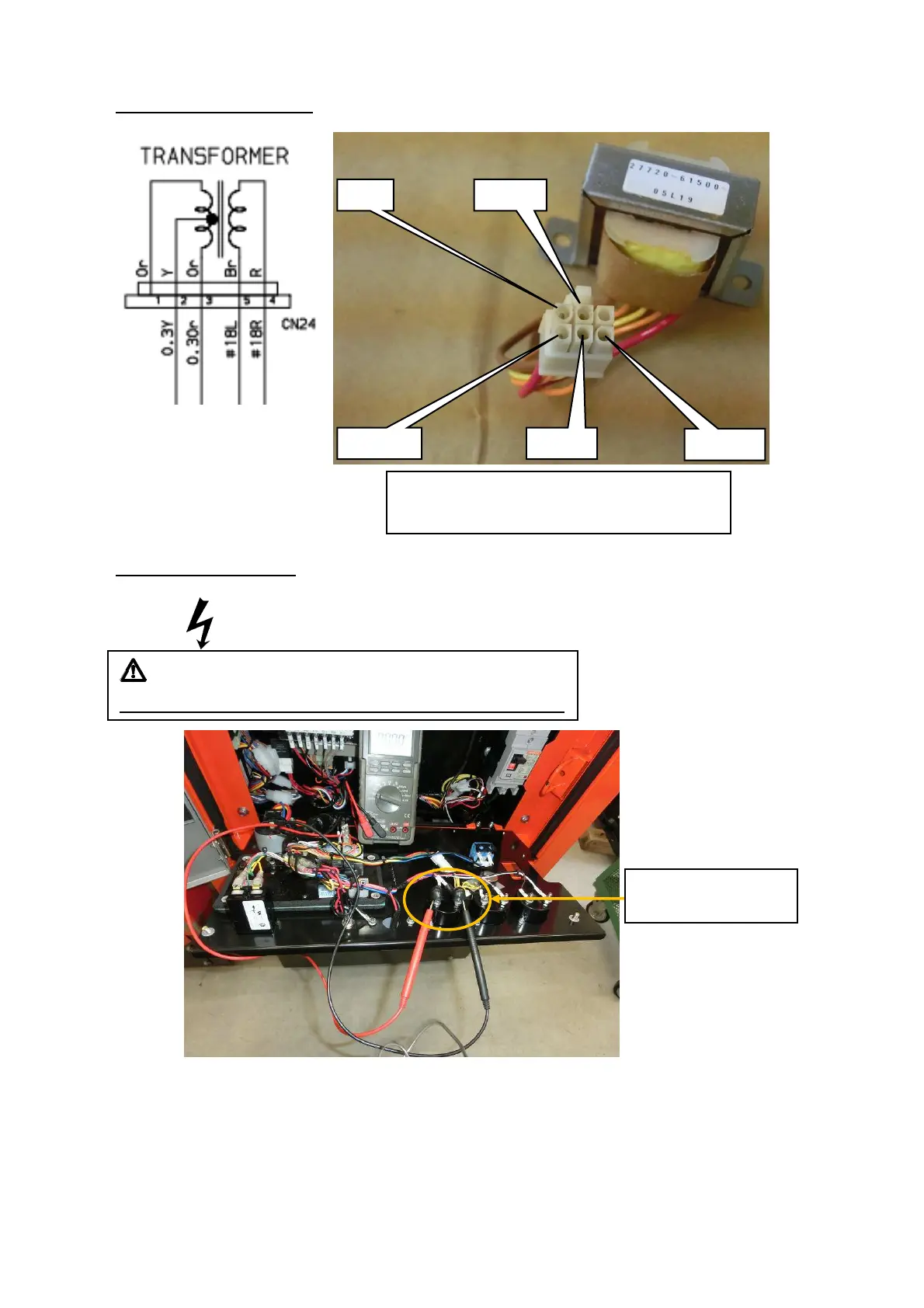

(8) Inspect the Transformer
Red~Brown: There shall be conduction.
Orange~Yellow: There shall be conduction.
Red~Yellow: There shall be no conduction.
(9) Inspect the Volt meter
ELECTRIC SHOCK
WARNING
Never touch the terminals during operation.
1) Start engine.
2) Connect the probe of the tester to the terminals in the back of the volt meter and
measure the voltage among the terminals.
3) The volt meter is a malfunctioning if the needle of the meter does not deflect.
Measure the voltage
of the volt meter.
Red
Orange
Yellow
Brown
Orange
