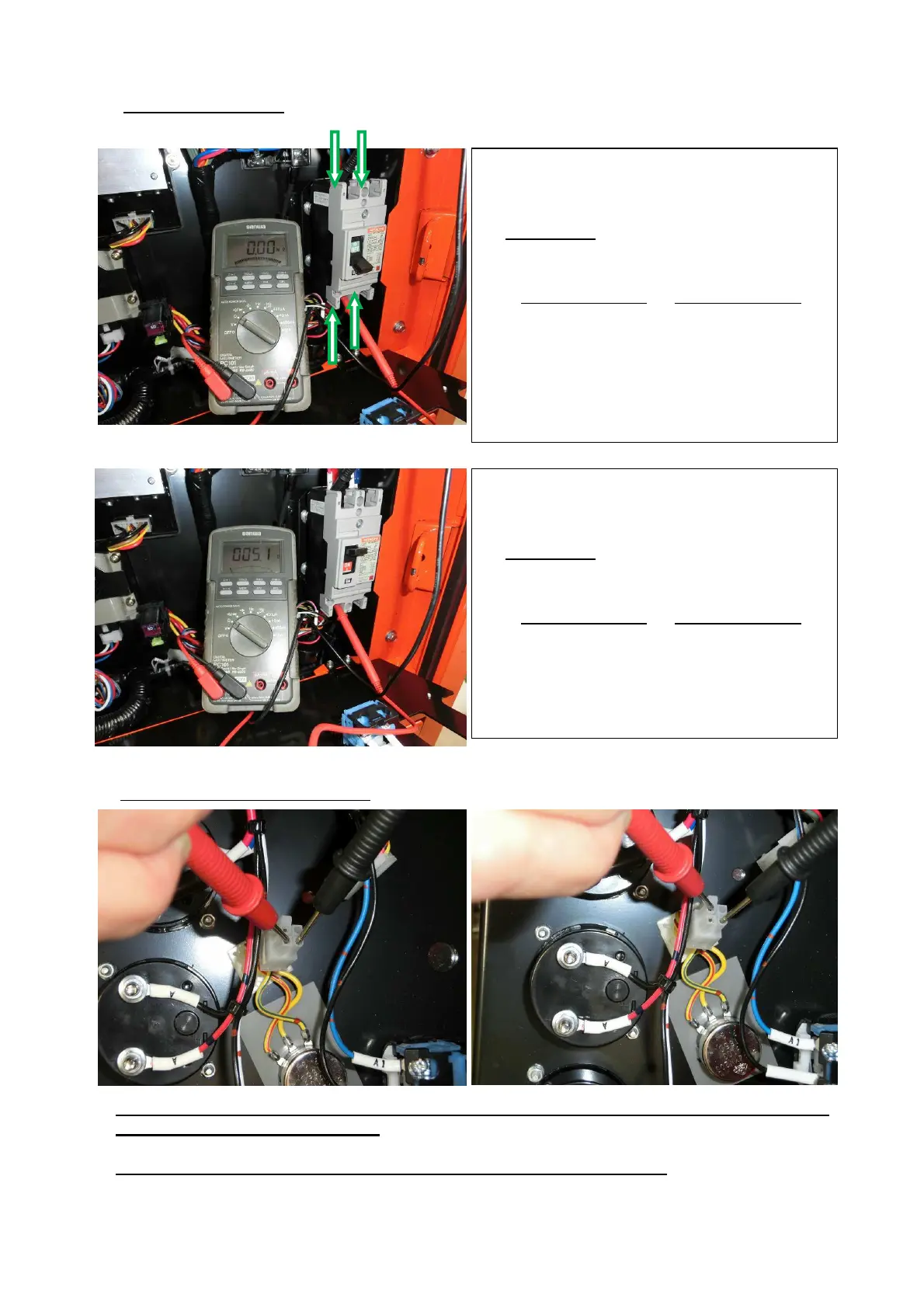

(10) Inspect the Breaker
(11) Inspect The Voltage Regulator
1. Measure the resistance among the leads for “yellow and yellow/red” and “yellow and
yellow/green” by the ohm tester. (Reading may not be accurate when the low resistance
tester is used.)
2. The reading shall be 0~10kΩ when the voltage regulator knob turns.
1. Shut off engine. Turn the main circuit
breaker OFF.
2. Check the resistance with a
ohmmeter between upper terminal
and lower terminal of;
Upper Terminal Lower Terminal
U U
W W
The ohmmeter should display the symbol
of infinity, ∞, or similar per the
ohmmeter that you may use.
1. Shut off engine. Turn the main circuit
breaker ON.
2. Check the resistance with a
ohmmeter between upper terminal
and lower terminal of;
Upper Terminal Lower Terminal
U U
W W
The ohmmeter should display approx. 1
ohms.
U W
