Kubota DG972 E2 - Page 77

3

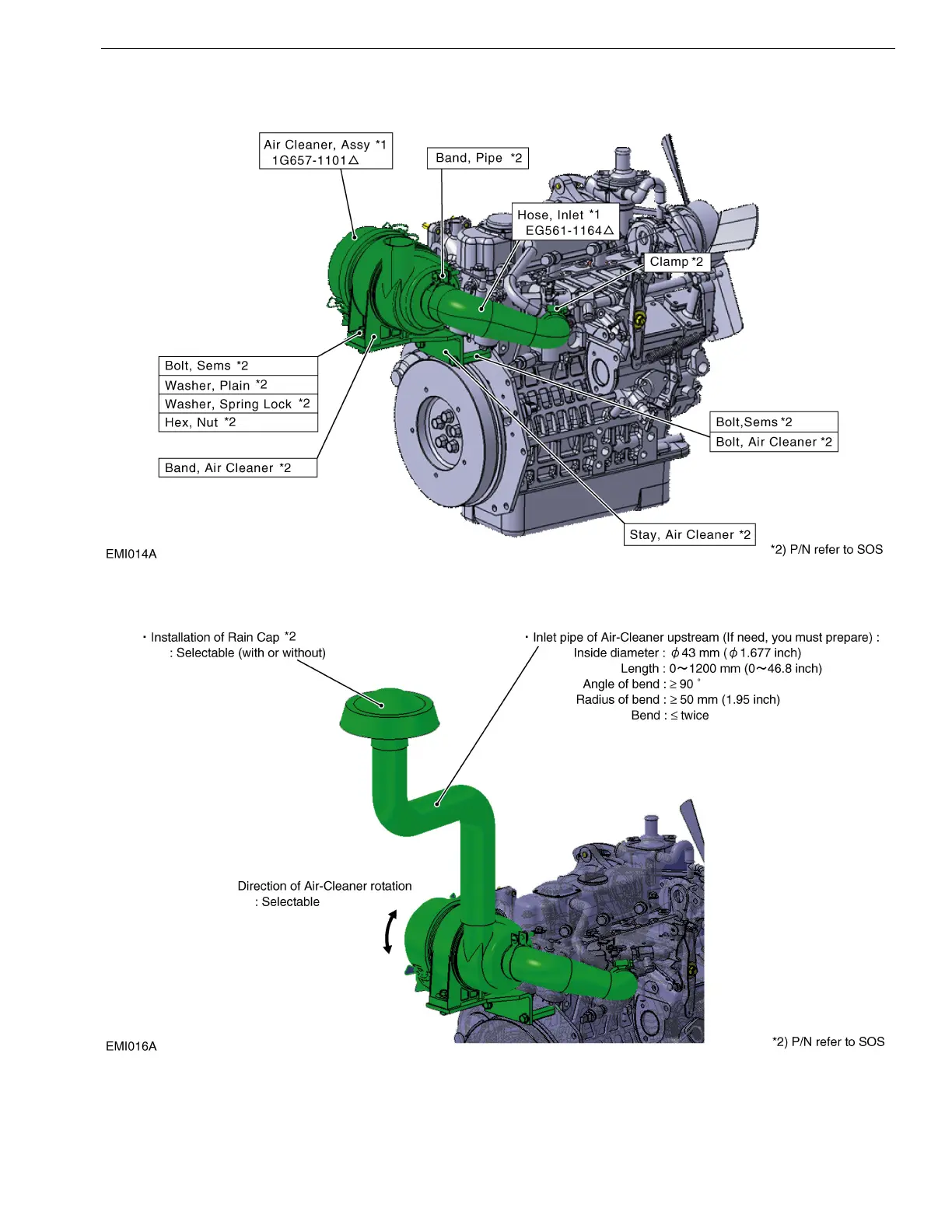

• External view with standard kit.
Kit parts with “*1” must be installed as shown in the figure below.
• Exception
The figure below shows the range of the layout that you can select freely for the standard kit.
