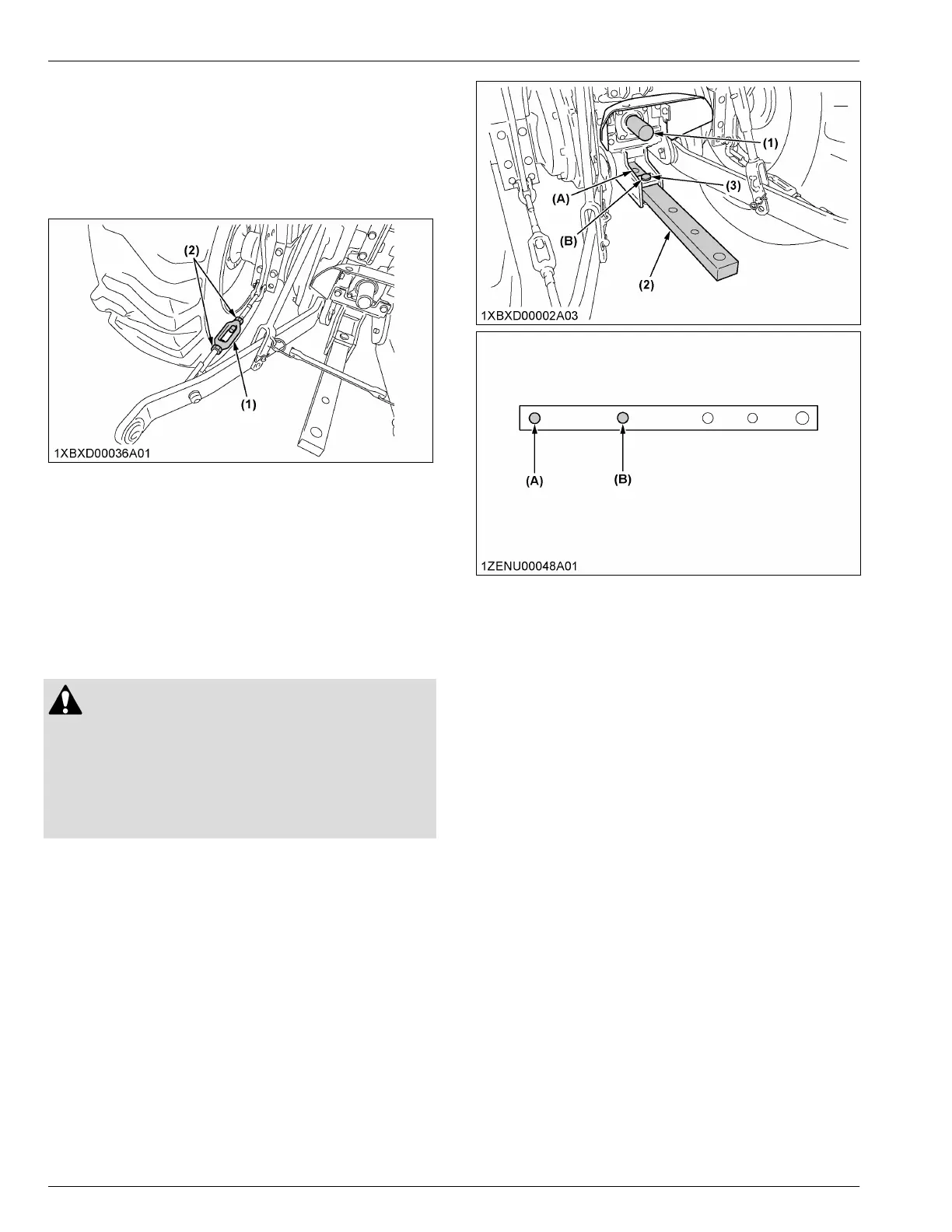

2.4 Adjusting the check chains
1. Adjust the
turnbuckle to control the horizontal sway
of the implement.
(See Hydraulic control unit use reference chart on
page 81)
2. After adjustment, re-set the lock nut.
(1) Turnbuckle (2) Lock nut
2.5 Dealing with the lower link holder
1. Holds the lower links with the lower-link-holder.
When operating
the tractor without an implement, it
is necessary to lock the lower links to prevent them
from hitting the rear wheels of the tractor.
DRAWBAR
WARNING
To avoid personal injury or death:
•
Never pull from the top link, the rear axle, or any
point above the drawbar. Pulling from the top
link, the rear axle, or any point above the
drawbar could cause the tractor to tip over
rearward.
1. Adjusting the drawbar length
1. Adjust the length of the drawbar.
When towing
an implement, it is recommended that
the (B) hole in drawbar to be utilized.
For information about the drawbar load, read the
IMPLEMENT LIMITATION TABLES on page 26.
(1) PTO shaft
(2)
Drawbar
(3)
Pivot pin
(A) Hole-A
(B) Hole-B
3-POINT HITCH AND DRAWBAR 3-POINT HITCH
78
L3301,L3901

Kubota L3301 Specifications

General

Engine Type	Diesel
Engine Horsepower	33 HP
Fuel Type	Diesel
Drive	4WD
Cylinders	3
Hydraulic System Type	Open center
3-Point Hitch Category	Category I
Width	55.1 inches
Tire Size (Rear)	11.2-24
Transmission	Gear Drive / HST
Fuel Capacity	11.1 gal
Lift Capacity	1433 lbs (24" behind lift point)
Displacement	91.5 cu in
Height	91.7 inches
Tire Size (Front)	7-16
Number of Gears	8 forward and 8 reverse (Gear Drive), Infinite (HST)
