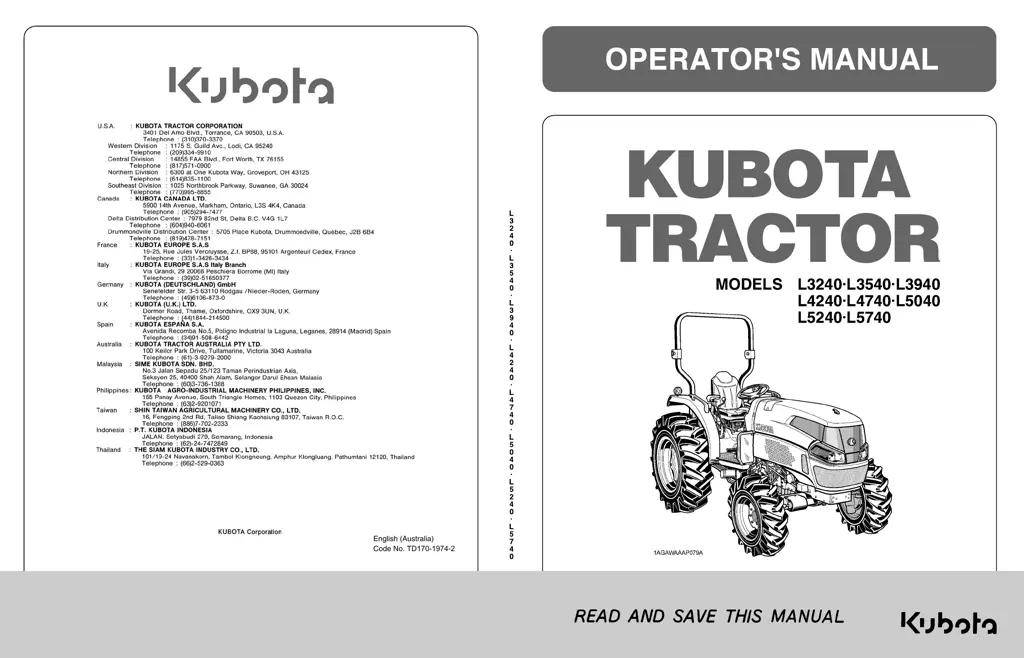

TRACTOR
OPERATOR'S MANUAL
MODELS L3240áL3540áL3940
L4240áL4740áL5040
L5240áL5740
English (Australia)
Code No. TD170-1974-2
