Kubota LA243 - Speed Set Linkage

2-M9
BX1860, BX2360, BX2660, RCK48(P)-18BX, RCK54(P)-23BX, RCK60B-23BX, LA203, LA243, WSM
TRANSAXLE
(4) Speed Set Linkage
Q Speed Set
W1020771
When pushing and holding the speed set rod (1) and depressing the speed control pedal (3), the desired speed is
set.
When pushing the speed set rod (1), the cruise arm (7) is rotated counter clockwise.
When depressing the speed control pedal (3) forward, the HST pedal link clockwise.
Since both the cruise lock (5) of the cruise arm (7) and the cruise lock (6) of HST pedal link (8) are locked, the
speed control pedal (3) is held at a selected position.

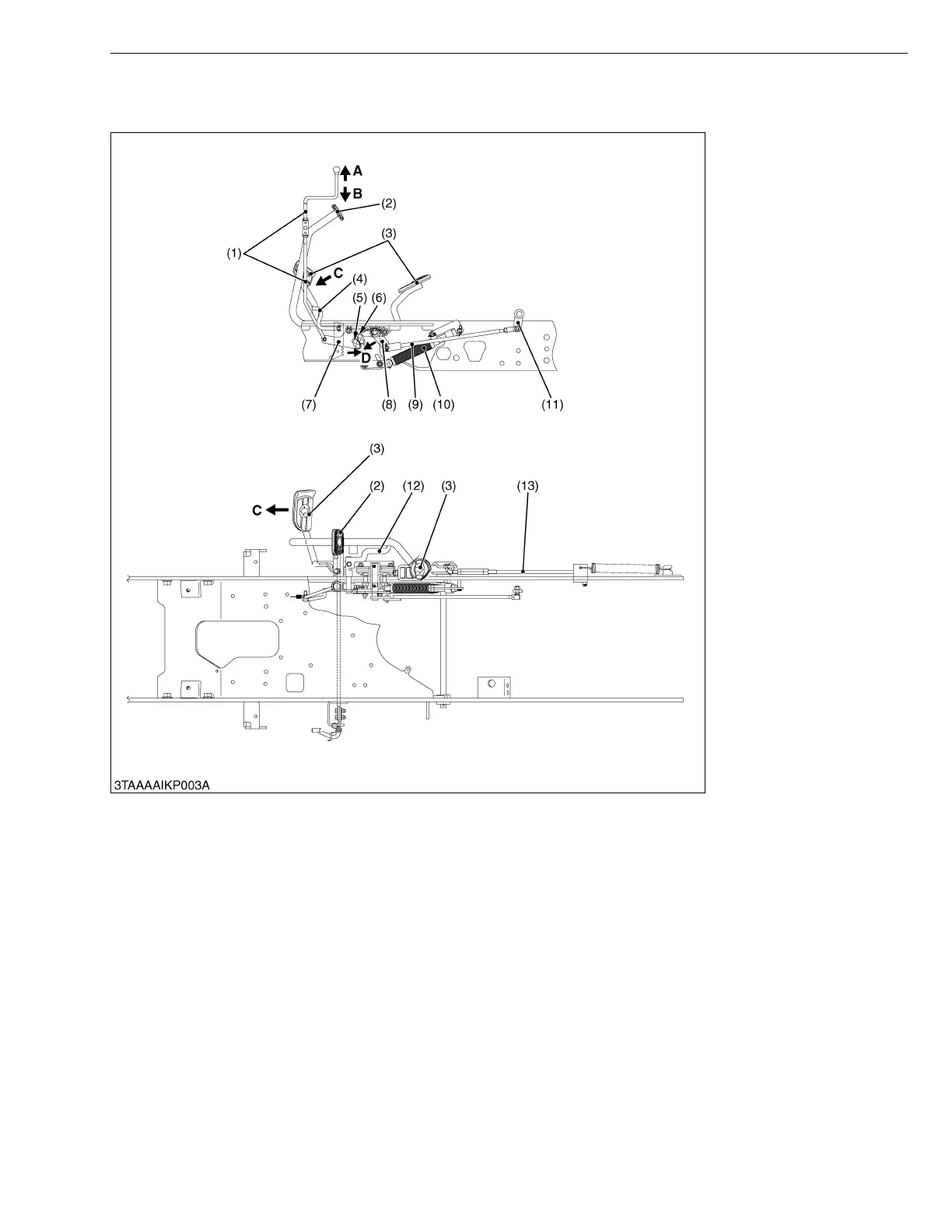

(1) Speed Set Rod
(2) Brake Pedal
(3) Speed Control Pedal
(4) Parking Brake Lock Pedal
(5) Cruise Lock
(6) Cruise Lock
(7) Cruise Arm
(8) HST Pedal Link
(9) Speed Change Rod
(10) Damper
(11) Trunnion Arm
(12) Release Plate
(13) Brake Rod
A : Speed Set Rod “OFF”
B : Speed Set Rod “ON”
C : Speed Control Pedal
“Forward”
D : Cruise Lock “Locked”
KiSC issued 06, 2009 A
