TRANSAXLE
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RCK54D, WSM
2-M15
3. PTO SYSTEM
[1] PTO CLUTCH AND VALVE
The BX 70 series equipped with hydraulic independent PTO clutch (wet multi-plates type). Therefore, the engine
power engages or disengages to the PTO shafts without stopping the tractor movement.
The PTO clutch pack (2) has four clutch discs, four drive plates, pressure plate, clutch piston and so on.
The clutch piston is actuated by hydraulic oil flow from the power steering controller.
The PTO clutch valve (5) controls the hydraulic oil flow from power steering controller to the PTO clutch pack (2)
by operating the PTO clutch lever through the linkage.
9Y1210855TXM0016US0

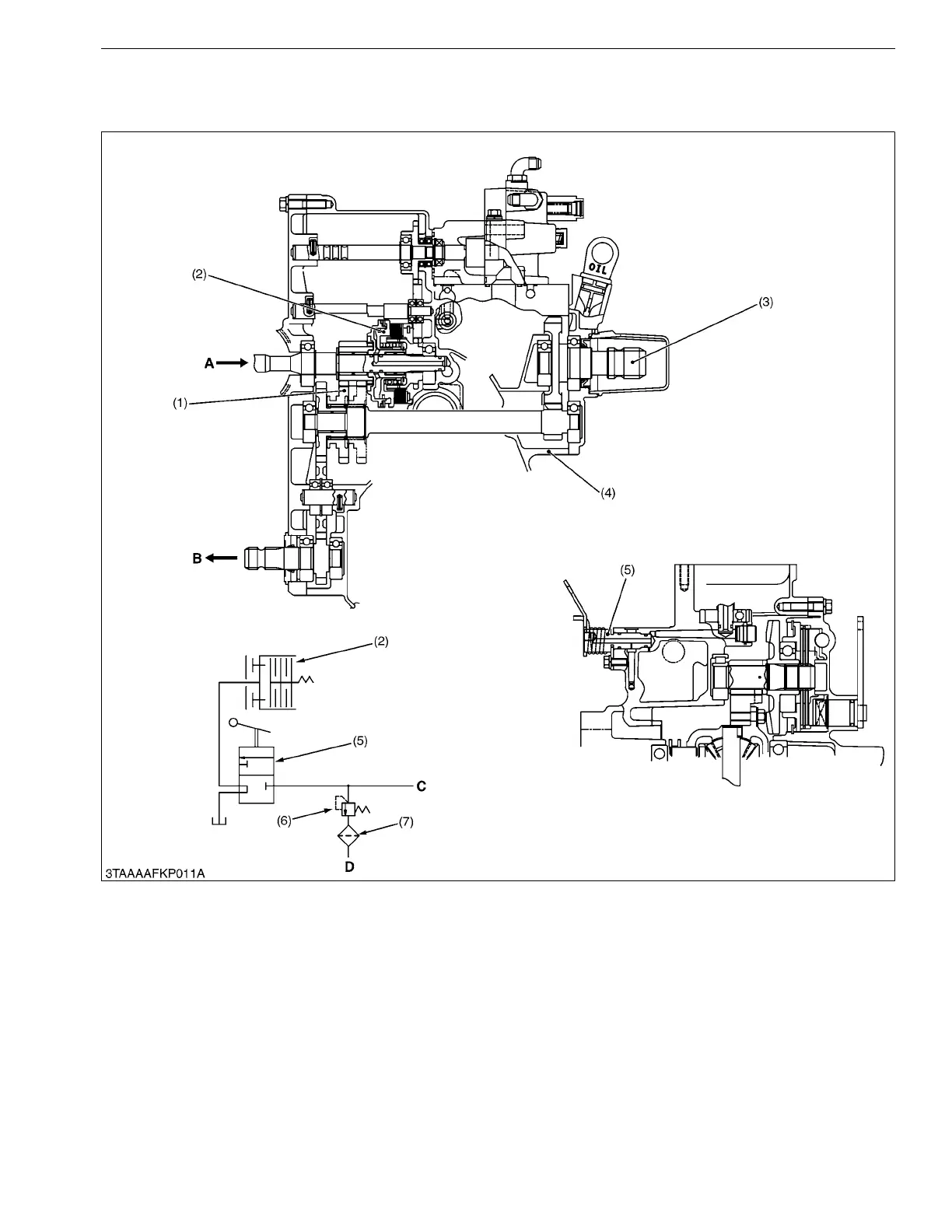

(1) PTO Select Gear
(2) PTO Clutch Pack
(3) Rear PTO Shaft
(4) Transmission Case
(5) PTO Clutch Valve
(6) PTO Clutch Relief Valve
(7) Oil Filter Cartridge
A: From HST Pump Shaft
B: To Mid-PTO
C: From Power Steering
Controller
D: To Hydrostatic
Transmission
To Next Page
