FRONT LOADER
BX1870,BX2370,BX2670,LA203A,LA243A,RCK48(P),RCK54(P),RCK60B,RCK60D,RC
K54D, WSM
8-S10
[3] SERVICING

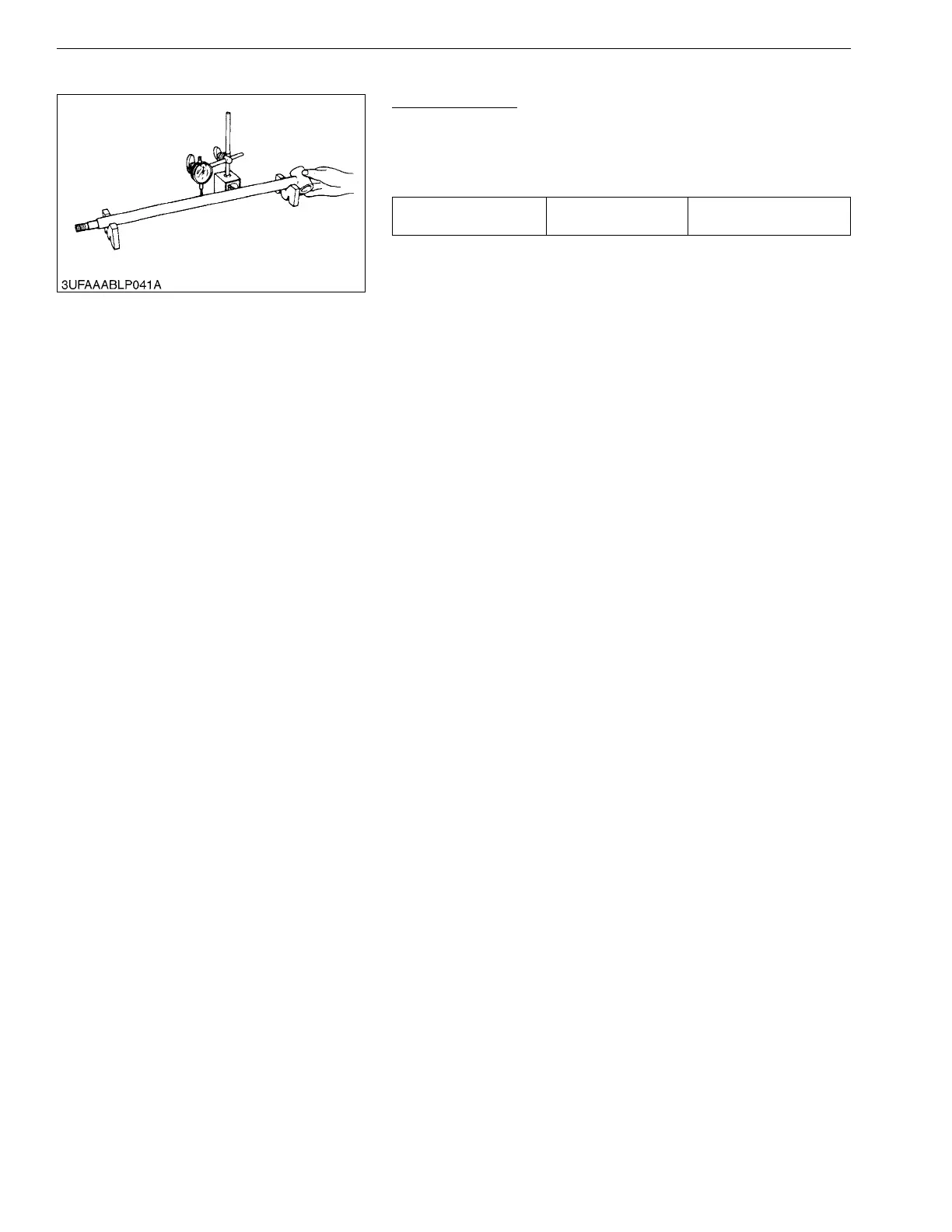

Piston Rod Bend
1.
Place piston rod on V blocks.
2.
Set a dial indicator on the center of the rod.
3.
Turn the piston rod and read the dial indicato
r.
4.
If the measurement exceeds the allowable limit, replace it.
9Y1210855FLS0016US0
Piston rod bend
Allowable limit
0.25 mm
0.0098 in.
KiSC issued 02, 2017 A
415
417
