OPERATING THE LOADER26

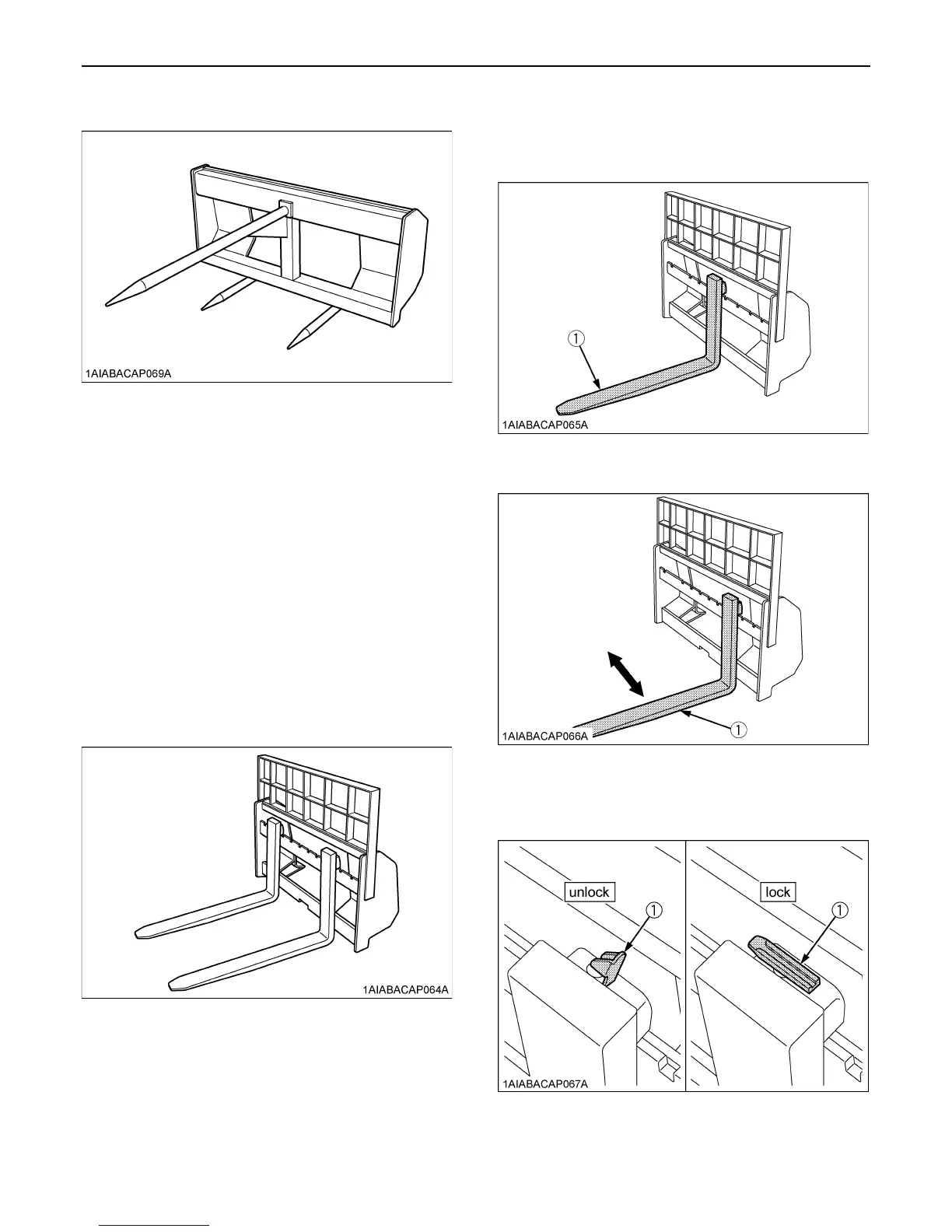

BBale spear
OVERALL HEIGHT
524mm (20.63in.)
OVERALL WIDTH
1149mm (45.24in.)
OVERALL LENGTH (INCLUDING MAIN SPEAR)
1376mm (54.17in.)
USEABLE LENGTH OF MAIN SPEAR
1008mm (39.69in.)
USEABLE LENGTH OF SPEAR 2
356mm (14.02in.)
MAXIMUM DIAMETER OF MAIN SPEAR
51mm (2.00in.)
DIAMETER OF SPEAR 2
32mm (1 1/4in.)
WEIGHT OF IMPLEMENT
74kg (163lbs)
BPallet fork
ASSEMBLE PALLET FORK
1. Install the fork to the middle of the frame.
(fit the lower hook of the fork to the center notch of the
frame)
2. Slide the fork to the desired position.
3. Push the lock lever and slide the fork slightly until the
lock pin engages with one of the notches to lock the
folk.
LOADER MODEL RATED CAPACITY
LA555 800 LBS.
LA805 1000 LBS.
LA1055 1300 LBS.
(1) Fork
(1) Fork
(1) Lock lever
