REMOVING THE LOADER
To avoid personal injury:
A Make sure an approved bucket is attached
before removing the loader from the tractor.
A For removing the loader, choose flat and hard
ground, preferably concrete.
A If the ground surface is soft, place suitable
planks on the ground for the bucket and
stands.
A Before starting the engine or using the
hydraulic control valve, always sit in the
operator's seat.
A Make sure the bucket and stands are at ground
level.
1. Raise the boom until the stands can be rotated.
2. Stop the engine.
3. Remove the spring pins holding the stands to the
boom.
4. Rotate the stands until the pin on the stand and hole in
the boom are aligned.
Then slide the stands outward and insert the spring pin
as shown.
5. Start the engine and run at idle.
6. Dump the bucket approximately 20 degrees.
7. Lower the boom and raise the front wheels slightly.
A Lift the weight off the front wheels with the bucket. Do
not attempt to lift them with the stands.
8. Stop the engine.
9. Remove the mounting pins from the loader main frame
and store them on boom.
10.Start the engine and run at idle. Slowly move the
hydraulic control lever to rollback position to raise the
loader side frames up and out of the receivers of the
main frames as shown.
11.Stop the engine.
12.Slowly release all hydraulic pressure by moving the
hydraulic control lever in all directions.

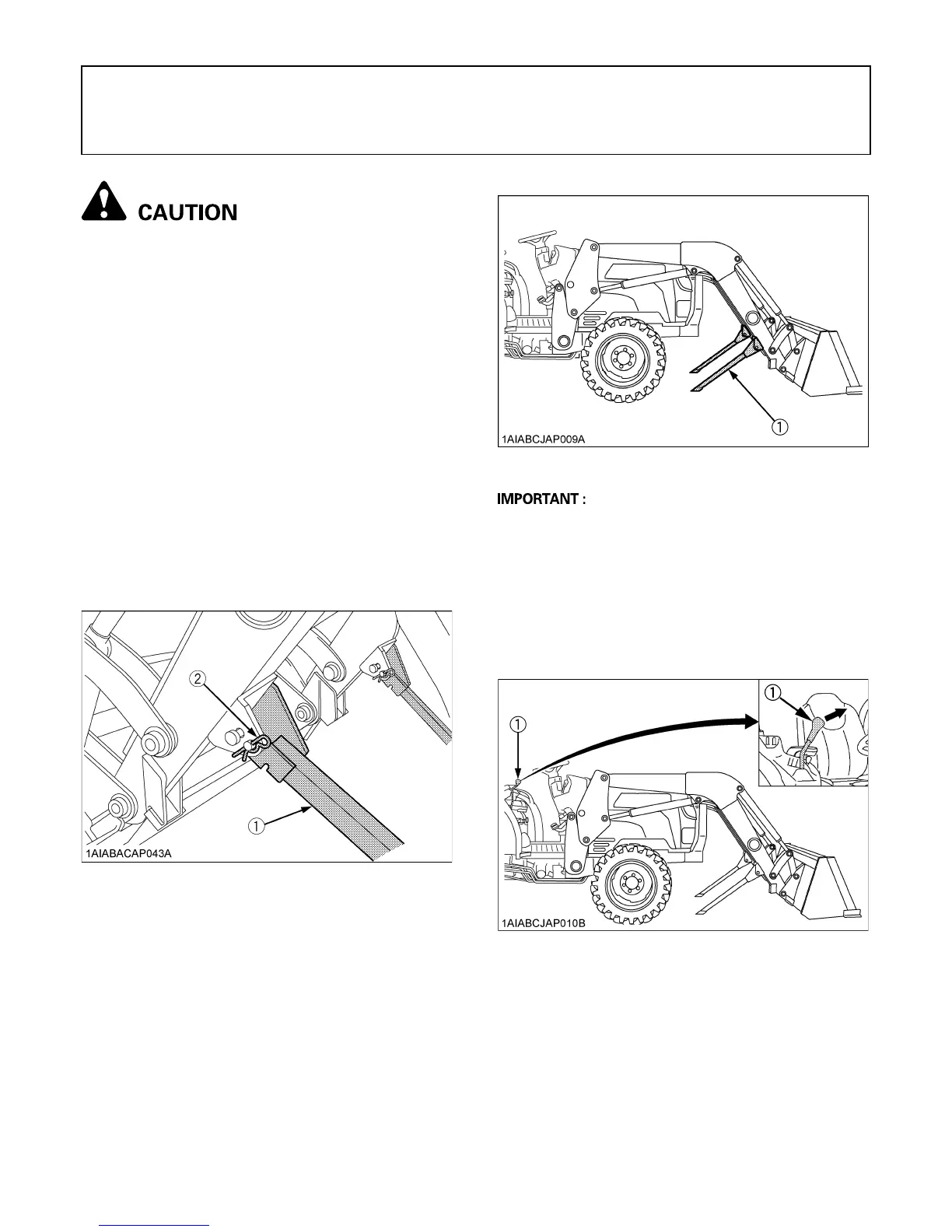

(1) Stand
(2) Spring pin
(1) Stand
(1) Hydraulic control lever
