75PERIODIC SERVICE

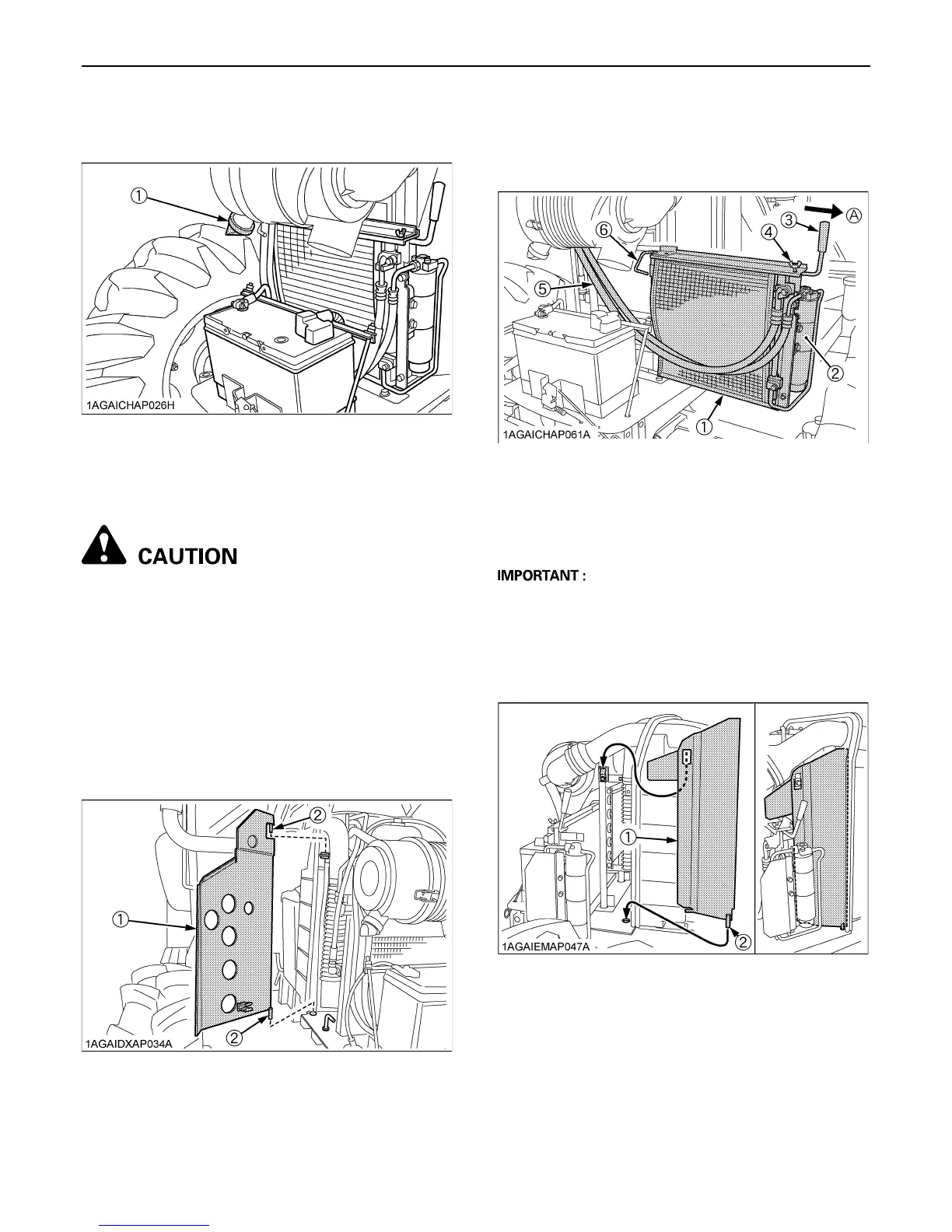

BCleaning Evacuator Valve
Open the evacuator valve to get rid of large particles of
dust and dirt.
BCleaning Grill, Radiator Screen,
Intercooler and Oil Cooler
To avoid personal injury:
A Be sure to stop the engine before removing the
screen.
A The condenser and receiver become hot while
the air conditioner is running. Before checking
or cleaning them, wait long enough until they
cool down.
C Detaching the Panel [RH]
1. To open the panel (RH), pull its front outward.
2. Lift the panel until pin (A) clears the hole.
3. Pull the panel.
4. Attaching the panel is performed vice versa.
C Detaching the Panel (LH)
1. Release the air conditioner hoses off the hook.
2. Loosen the wing nut.
3. Hold the handle, slide the air conditioner condenser
assembly toward yourself.
A Do not hold the air conditioner receiver or the air
conditioner pipes when sliding out the condenser for
cleaning.
4. Lift the panel (LH) until pin (A) clears the hole.
5. Pull the panel (LH).
6. Attaching the panel is performed vice versa.
(1) Evacuator valve
(1) Panel (RH)
(2) Pin (A)
(1) Condenser
(2) Receiver
(3) Handle
(4) Wing nut
(5) Air conditioner hose
(6) Hook
(A) "PULL"
(1) Panel (LH)
(2) Pin (A)
To Next Page
