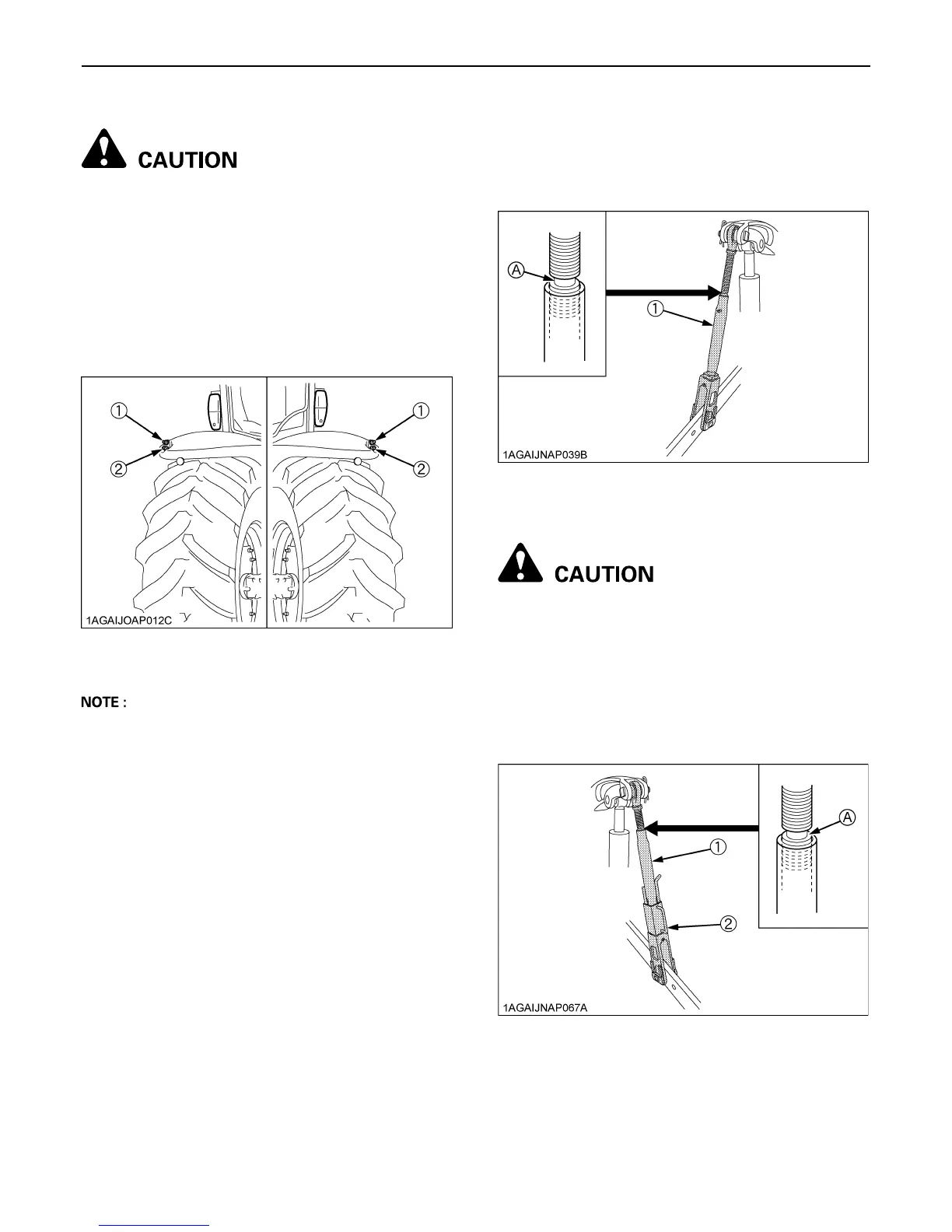

71THREE-POINT HITCH & DRAWBAR
BRemote Hitch UP / DOWN Switch
To avoid personal injury:
A Do not use the Remote hitch up / down switch
when the implement is attached on the 3-point
hitch.
These switches are used to raise and lower the 3-point
hitch for aligning the arm with the implement only. Press
the "UP" switch and 3-point hitch goes up. Press the
"DOWN" switch and the 3-point hitch comes down.
Movement of the 3-point hitch stops when the switch is
released.
A If these switches are pushed, the 3-point hitch's
position lock is activated and 3-P. Lifting / Lowering
indicator starts flashing (two or so flash every second).
If it flashing, press the 3-P. quick raise switch or 3-P.
quick lower switch to release the position lock. (The
indicator goes off or turns on.)
BLifting Rod (Left)
By turning the rod itself, the lifting rod varies its length.
When extending the rod, do not exceed the groove on the
rod thread.
BLifting Rod (Right)
To avoid personal injury:
A Do not extend lifting rod beyond the groove on
the thread rod.
1. To adjust the length of the lifting rod, lift the adjusting
handle and turn to desired length.
2. After adjusting, lower the lifting rod adjusting handle to
the lock position.
3. When extending the rod using adjusting handle, do not
exceed the groove on the rod thread.
(1) "UP" switch
(2) "DOWN" switch
(1) Lifting rod (A) "GROOVE"
(1) Lifting rod
(2) Adjusting handle
(A) "GROOVE"
