9-M16
M5040, M6040, M7040, WSM
ELECTRICAL SYSTEM
4. INSTRUMENT PANEL

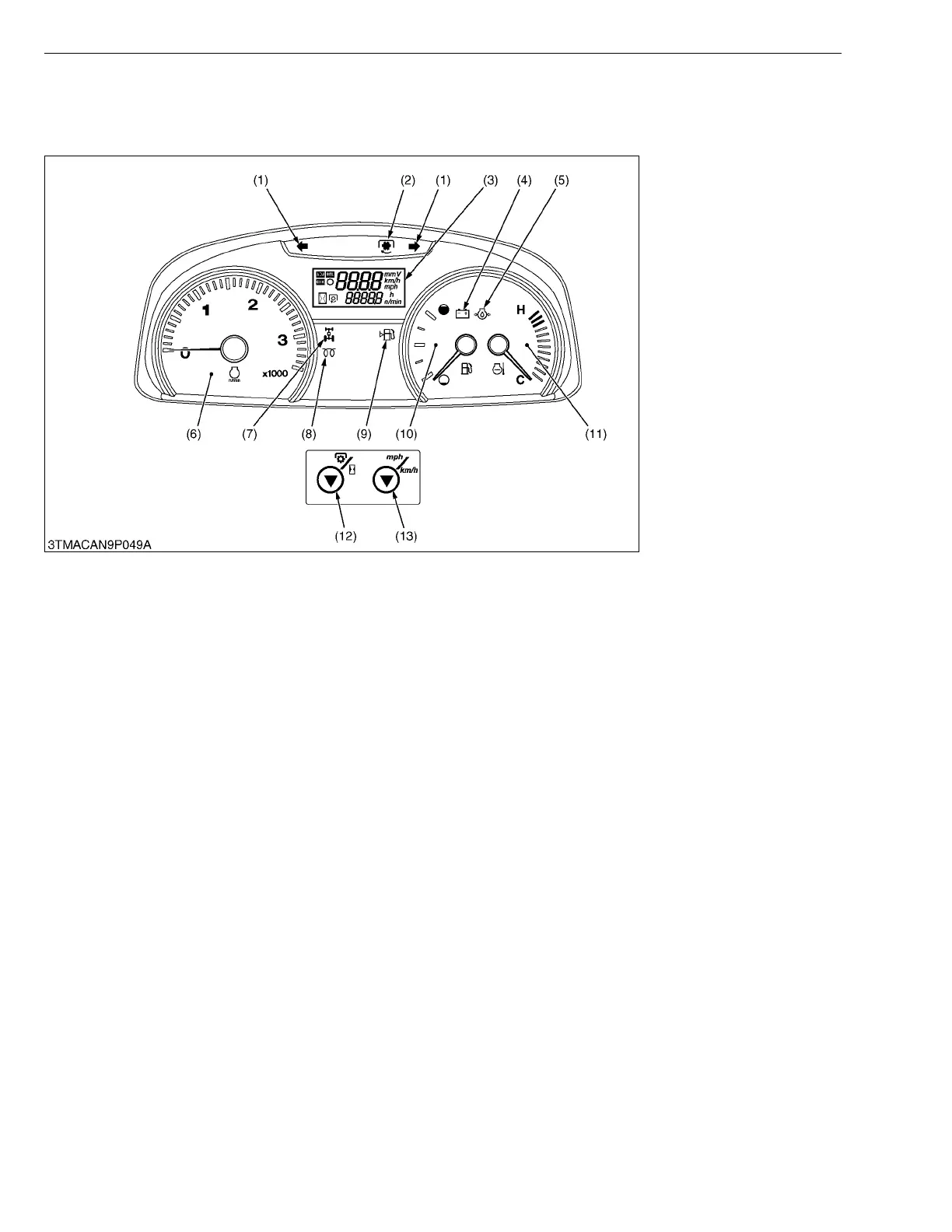

[1] INDICATION ITEMS OF METER PANEL
W1014393
(1) Hazard/Turn Signal Indicator
(2) PTO Clutch Indicator
(3) Liquid Crystal Display
(4) Electrical Charge Indicator
(5) Engine Oil Pressure
Indicator
(6) Tachometer
(7) 4WD Indicator
(8) Heater Indicator
(9) Fuel Level Indicator
(10) Fuel Gauge
(11) Coolant Temperature Gauge
(12) PTO/Hour Meter Select
Switch
(13) Travel Speed Select Switch
To Next Page
