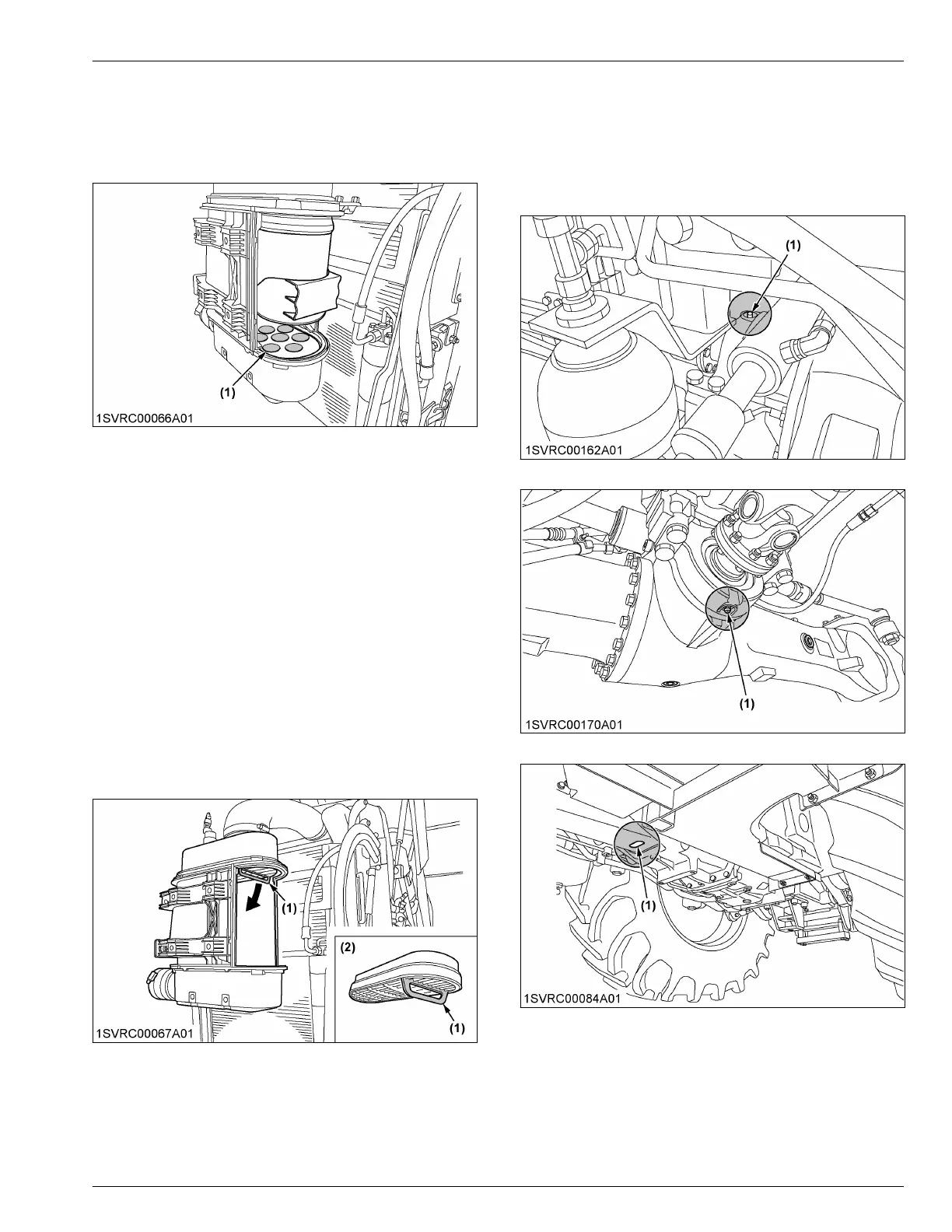

2. T
o clean the pre-cleaner tubes, remove the housing
service cover and leave the element installed (to
prevent dust from entering the air induction outlet).
Use a low volume of compressed air to gently blow
out the separator tubes.
(1) Pre-cleaner tubes
IMPORTANT :
• The
air cleaner uses a dry element, so never
apply oil.
• Do not run the engine with filter element
removed.
• Do not touch the secondary element except in
cases where replacing is required.
1.2 Replacing secondary element
The secondary element should be replaced every 1000
hours or yearly
, whichever comes first.
1. To remove the secondary element, use the plastic
handle on the face of the secondary element. Pull
the element toward the center of the housing and
remove it. Ensure that the outlet tube sealing area
is clean and undamaged.
(1) Plastic handle
(2)
Secondary element
2. Lubricating grease fittings
Apply
a small amount of multipurpose grease to the
following points every 100 hours.
If you have been operating the machine in extremely
wet and muddy conditions, lubricate the grease fittings
more often.
(1) Grease fitting (front axle support)
(1) Grease fitting (front axle support)
(1) Grease fitting (front axle drive shaft)
EVERY 100 HOURS PERIODIC SERVICE
