8 INSTRUMENT PANEL AND CONTROLS

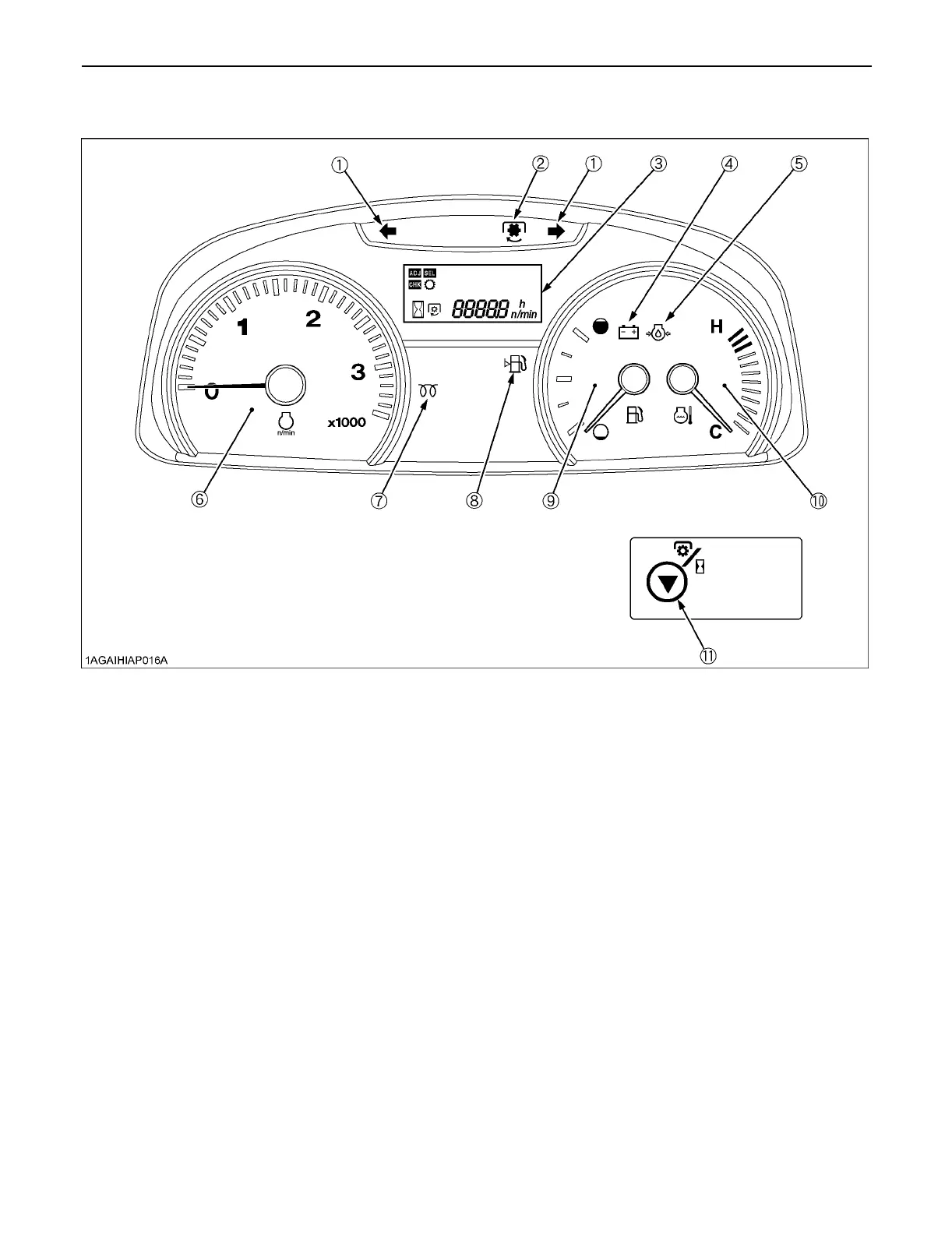

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Hazard / Turn signal indicator ............................ 18 (7) Glow plug indicator ........................................... 13
(2) PTO clutch indicator .......................................... 30 (8) Fuel level indicator............................................ 22
(3) Liquid crystal display.......................................... 24 (9) Fuel gauge...................................................... 22
(4) Electrical charge indicator .................................. 22 (10) Coolant temperature gauge ........................... 23
(5) Engine oil pressure indicator .............................. 22 (11) PTO / Hour meter select switch ...................... 24
(6) Tachometer ....................................................... 23
