9INSTRUMENT PANEL AND CONTROLS
B Foot and Hand Controls

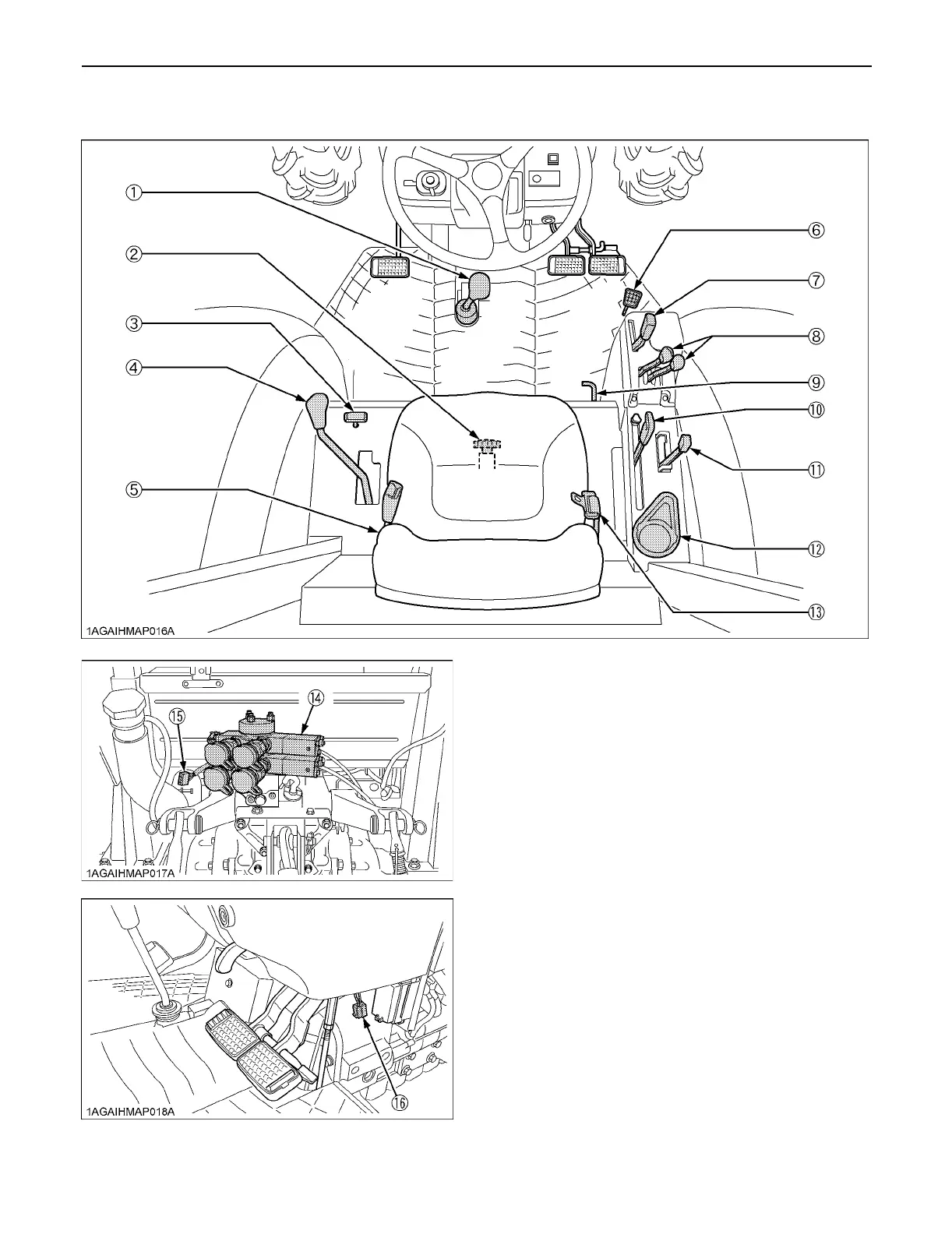

ILLUSTRATED CONTENTS
(1) Main gear shift lever........................................... 20
(2) 3-Point hitch lowering speed knob...................... 36
(3) Front wheel drive lever....................................... 20
(4) Range gear shift lever........................................ 20
(5) Operator's seat................................................... 17
(6) Foot throttle........................................................ 21
(7) Hand throttle lever ............................................. 21
(8) Remote control valve lever (if equipped)............. 36
(9) Differential lock pedal......................................... 27
(10) Position control lever........................................ 36
(11) PTO clutch control lever................................... 30
(12) Cup holder........................................................ -
(13) Seat belt........................................................... 17
(14) Remote control valve coupler (if equipped)....... 37
(15) Trailer Electrical outlet ..................................... 28
(16) Electrical outlet ................................................ 29
