75CAB OPERATION
CIGARETTE LIGHTER
Push the lighter knob down to activate, with the key switch
in the "ON" or "ACC" positions.
Lighter will move up when ready to use.
INSTALLING THE IMPLEMENT CONTROL
BOX
1. Make an opening in each of the rubber caps or corner
plug. Introduce the implement control cable and
hydraulic hose through these openings into the CAB.

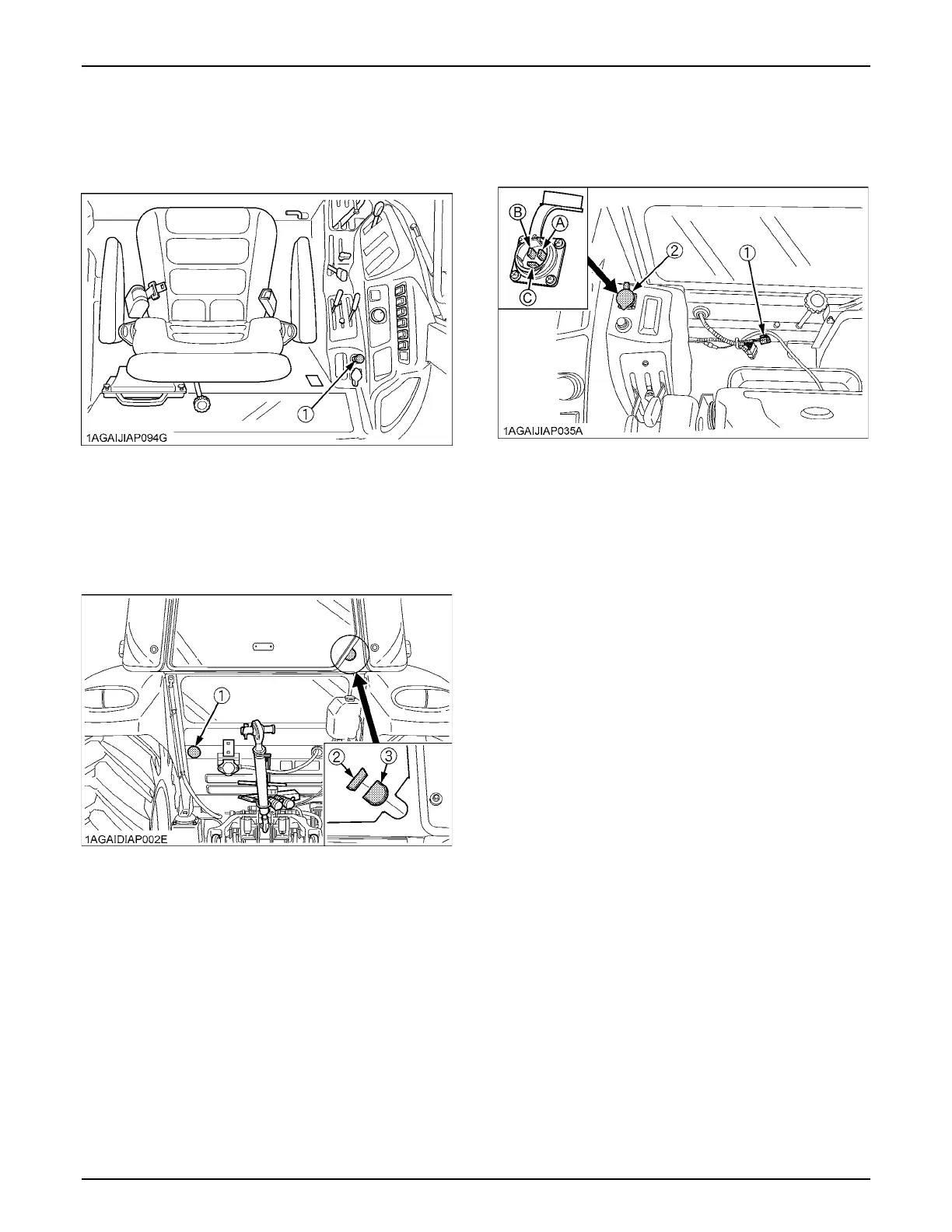

ELECTRICAL OUTLET
BElectrical Outlet
An electrical outlet is supplied for use with implement.
(1) Cigarette lighter
(1) Rubber cap
(2) Cap
(3) Corner plug
(1) Accessory electrical outlet (Max 15A)
(2) Accessory electrical outlet
(A) Terminal: Through the ACC position of the key switch
(Max 5 A)
(B) Terminal: Through the battery direct (Max 25A)
(C) Terminal: Ground
