10 INSTRUMENT PANEL AND CONTROLS
B Foot and Hand Controls
C Manual Transmission Type

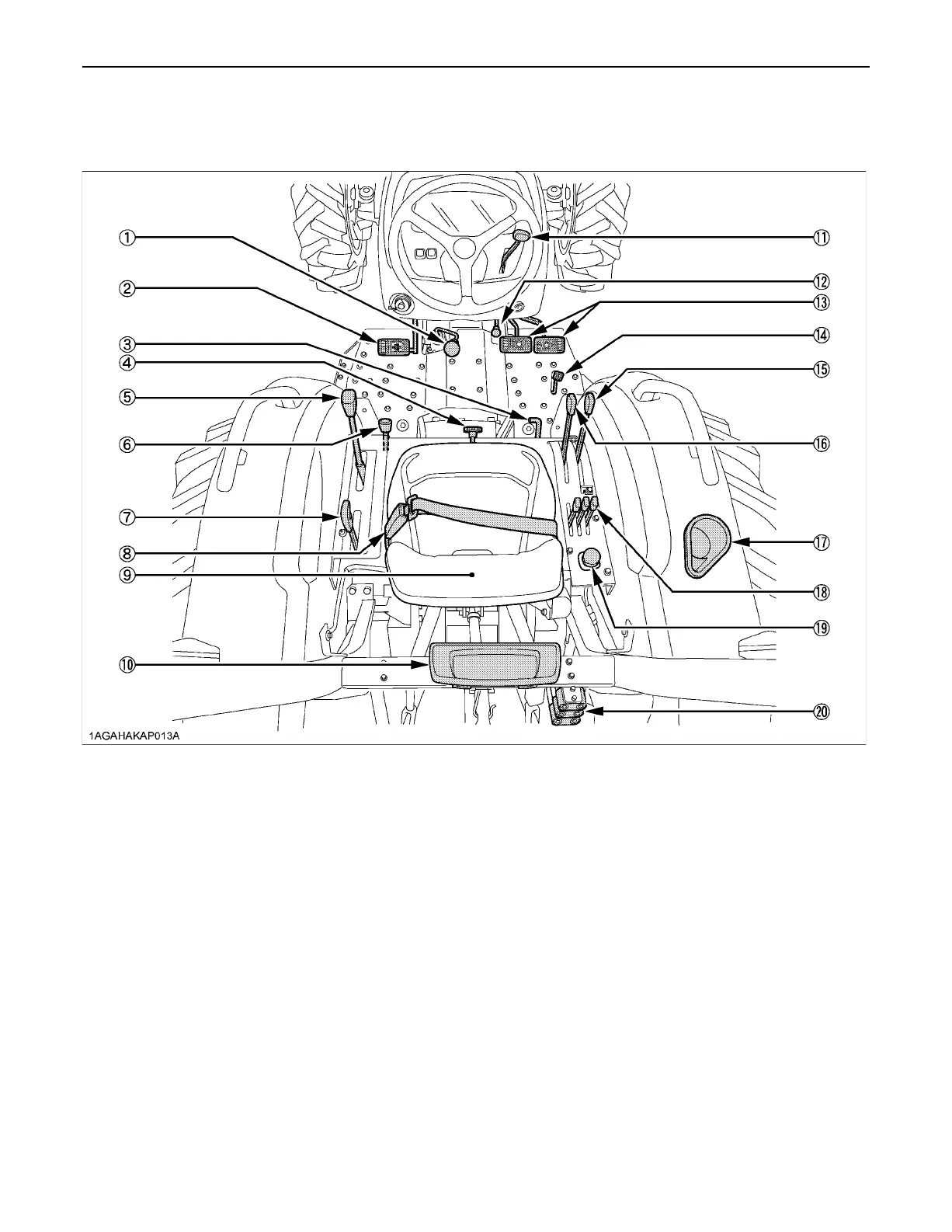

ILLUSTRATED CONTENTS ILLUSTRATED CONTENTS
(1) Main gear shift lever........................................ 33 (11) Hand throttle lever........................................... 34
(2) Clutch pedal.................................................... 32 (12) Parking brake lever.......................................... 42
(3) Differential lock pedal...................................... 43 (13) Brake pedal..................................................... 31, 35
(4) 3-Point hitch lowering speed knob................... 53 (14) Foot throttle..................................................... 34
(5) Synchro-shuttle shift lever............................... 34 (15) Position control lever....................................... 52
(6) Front wheel drive lever [4WD model]............... 34 (16) Draft control lever (If equipped)........................ 52
(7) Range gear shift lever...................................... 33 (17) Cup holder....................................................... -
(8) Seat belt.......................................................... 30 (18) Remote control valve lever (if equipped).......... 54
(9) Operator's seat................................................ 29 (19) PTO clutch control switch................................ 45
(10) Tool box........................................................... - (20) Remote control valve coupler (if equipped)...... 55
