TIRES, WHEELS AND BALLAST60
BRear Wheels

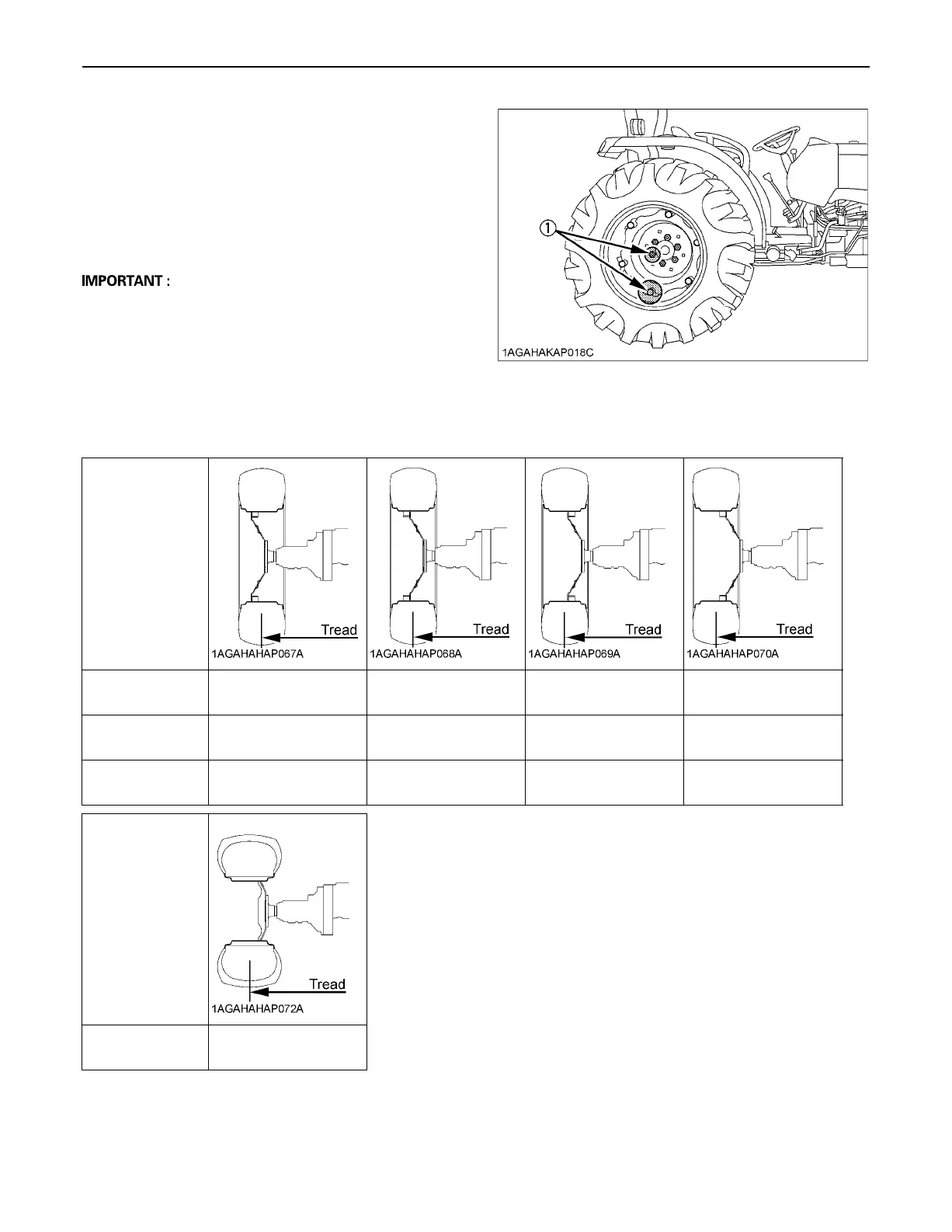

Rear tread width can be adjusted as shown with the
standard equipped tires.
To change the tread width
1. Remove the wheel rim and / or disk mounting bolts.
2. Change the position of the rim and / or disk (right and
left) to the desired position, and tighten the bolts.
A Always attach wheels as shown in the drawings.
A If not attached as illustrated, transmission parts may
be damaged.
A When re-fitting or adjusting a wheel, tighten the bolts
to the following torques then recheck after driving the
tractor 200 m (200 yards) and 10 times of shuttle
movement by 5 m (5 yards), and thereafter according
to service interval.
(See "MAINTENANCE" section.)
(1) 196.0 to 225.0 N-m (20.0 to 23.0 kgf-m, 144.6 to 166.0 ft-lbs)
Models
14.9-26
Farm
--- ---
1375 mm
(54.2 in.)
1490 mm
(58.6 in.)
13.6-28
Farm
1275 mm
(50.2 in.)
1385 mm
(54.4 in.)
1480 mm
(58.2 in.)
1585 mm
(62.4 in.)
17.5L-24
IND
1310 mm
(51.6 in.)
1420 mm
(55.9 in.)
1450 mm
(57.1 in.)
1555 mm
(61.2 in.)
Models
44 x 18-20
Turf
1470 mm
(57.9 in.)
