UNIVERSAL SYMBOLS

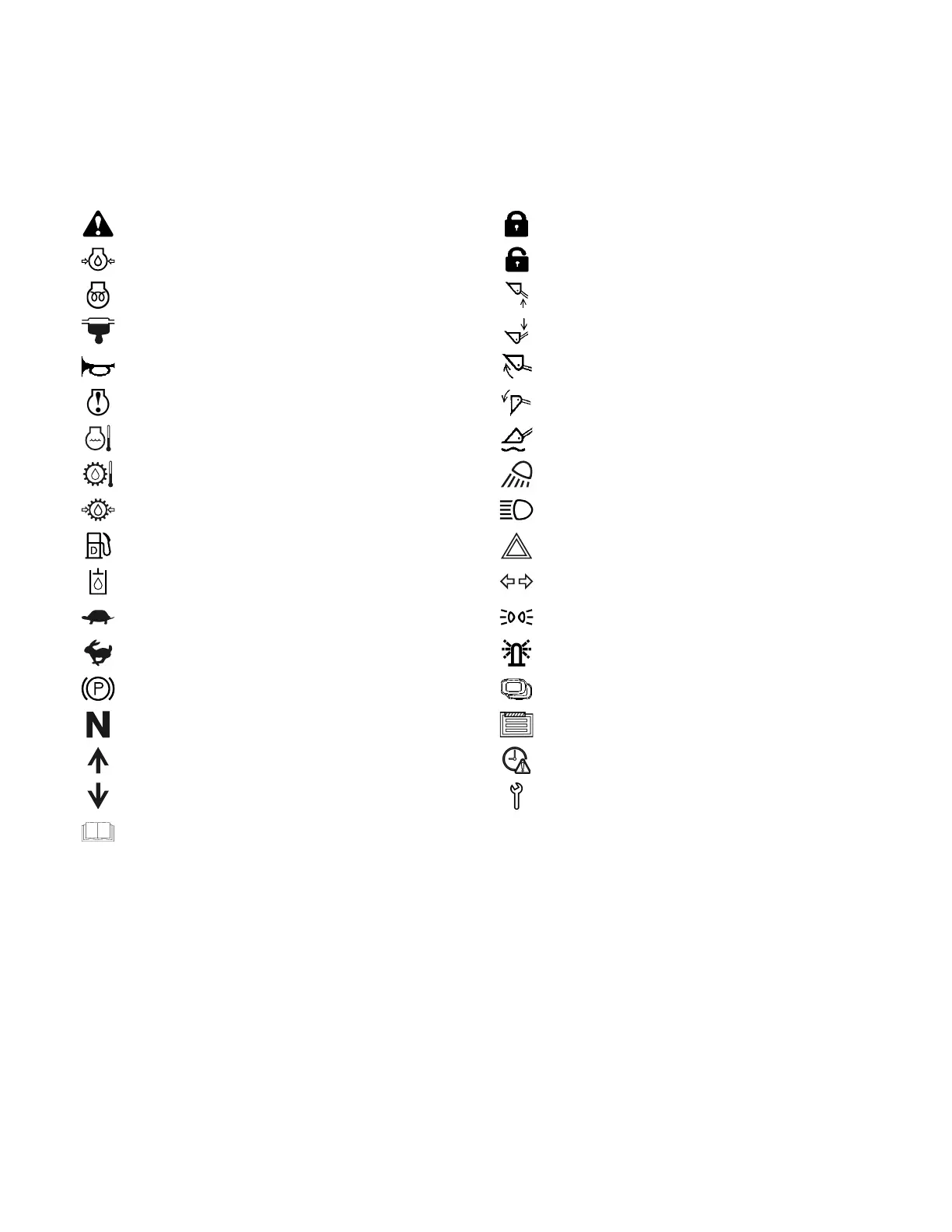

As a guide to the operation of your machine, various universal symbols have been utilized on the instruments and controls.
The symbols are shown below with an indication of their meaning.
Safety Alert Symbol
Engine Oil-Pressure
Diesel Preheat/Glow Plugs
Water separator fill-up
Horn
Engine Warning
Coolant Temperature
LST Temperature
LST Oil-Pressure
Diesel Fuel
Hydraulic Oil
Low Travel Speed
High Travel Speed
Parking Brake
Neutral
Travel Forward
Travel Backward
Read the Operating Instructions
Lock
Unlock
Bucket Up
Bucket Down
Bucket Tilt
Bucket Dump
Bucket Float
Working Light
High-beam
Hazard Switch
Hazard / Turn signal
Clearance light
Rotary Beacon
Display Selector Switch
User Setting Switch
Set Clock Indicator
Periodic Check Indicator
