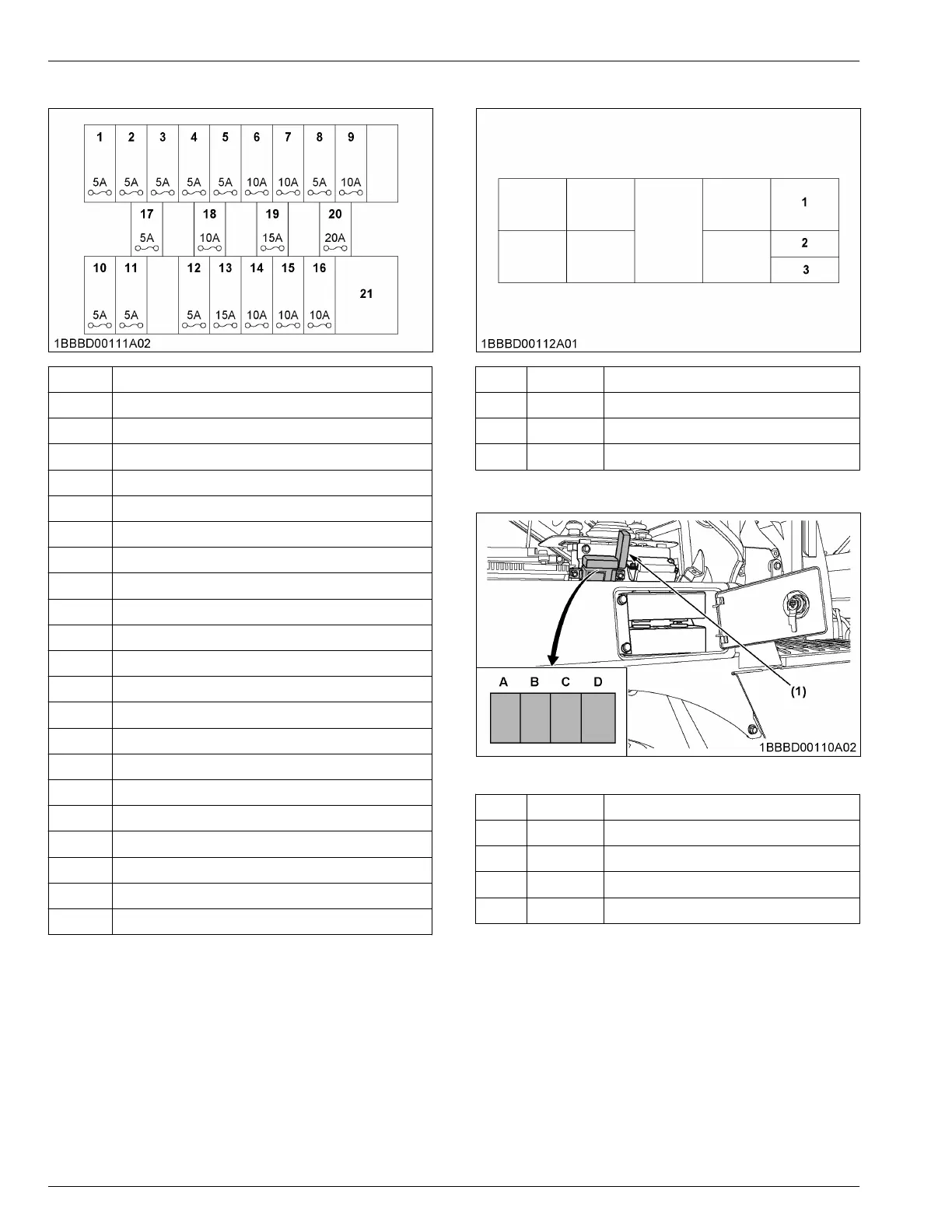

• Fuse box A
Applied circuit
1 Fuel pump
2 Flasher
3 Main ECU (AC)
4 Head lamp switch
5 Clearance lamp
6 Stop lamp
7 Alternator
8 Travel speed switch (Low hold switch)
9 Working lamp
10 Starter signal
11 Engine ECU
12 Auto leveler
13 Electrical outlet
14 Head lamp
15 Hazard
16 Shuttle change lever
17 Spare
18 Spare
19 Spare
20 Spare
21 Fuse puller
• Fuse box B
Rating Applied Circuit
1 30A Engine ECU
2 10A Horn
3 10A Main ECU (+B)
Slow blow fuse box
(1) Slow blow fuse box
Rating Applied circuit
A 80A Alternator
B 60A Main 1
C 60A Main 2
D 50A Main 3
(To replace the slow-blow-fuse, see Replacing the
slow blow fuses on page 89)
IMPORTANT :
• The main fuse protects the entire electrical
system. If the main fuse or another fuse has
blown, determine why it blew and repair
anything necessary.
Never bridge the fuses, always replace them
with a new fuse of the same rating.
