Road transport
45
Removing the tine
supports
Remove any crops and coarse dirt.
Remove the tine supports from the rotor and secure them in the
transport holder (see adjacent illustration).
Do not remove one of the tine supports and secure using a rotor
securing device.

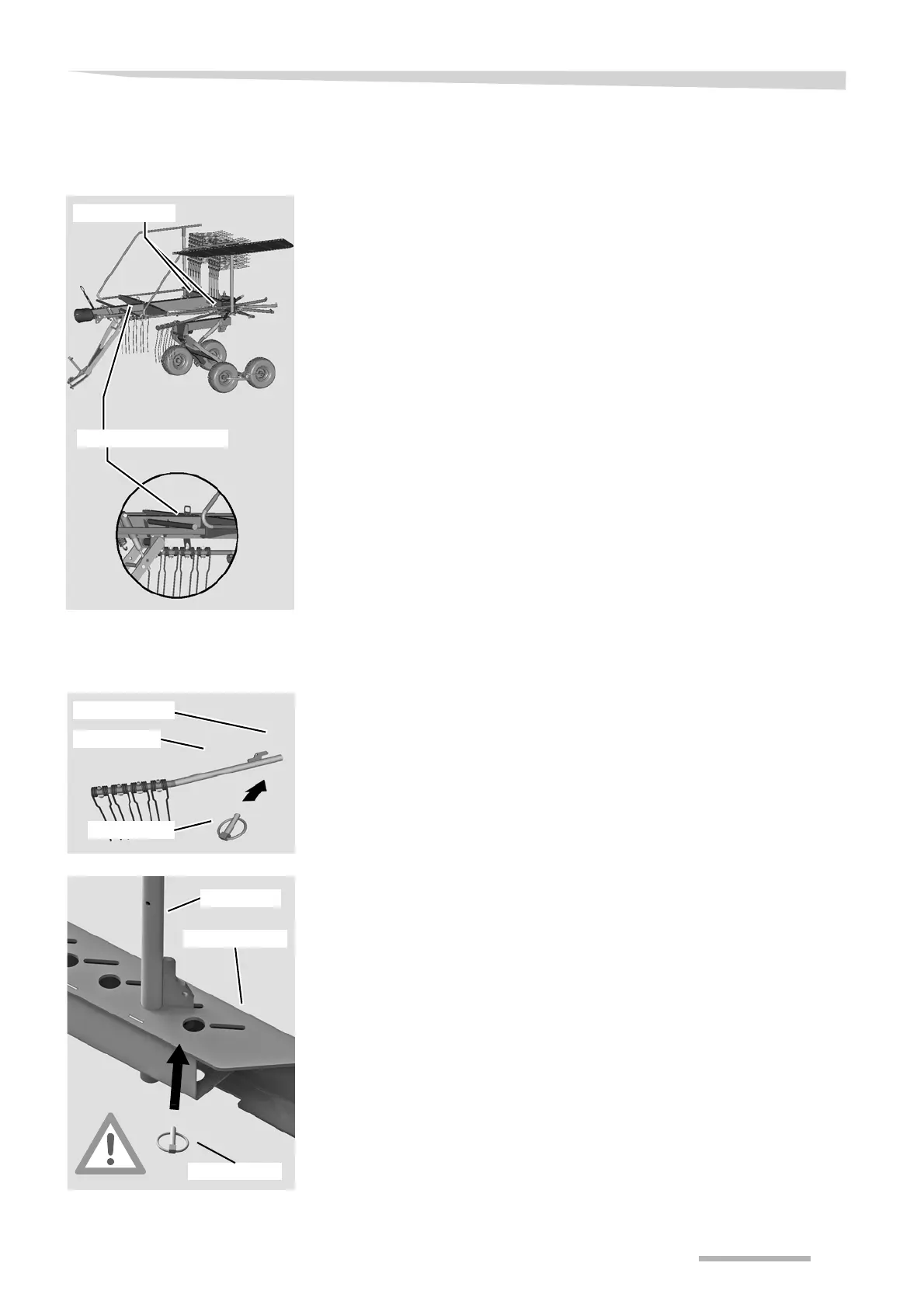

Placing the tine supports
in the transport holder
Loosen and remove the lynch pin from the tine support.
Pull off the tine support.
Insert the tine support into the transport holder.
Secure the tine support with a lynch pin.
Transport holder
Rotor securing device
Lynch pin
Tine support
Rear hole
Transport holder
Lynch pin
Tine support
