Circuit diagrams
76

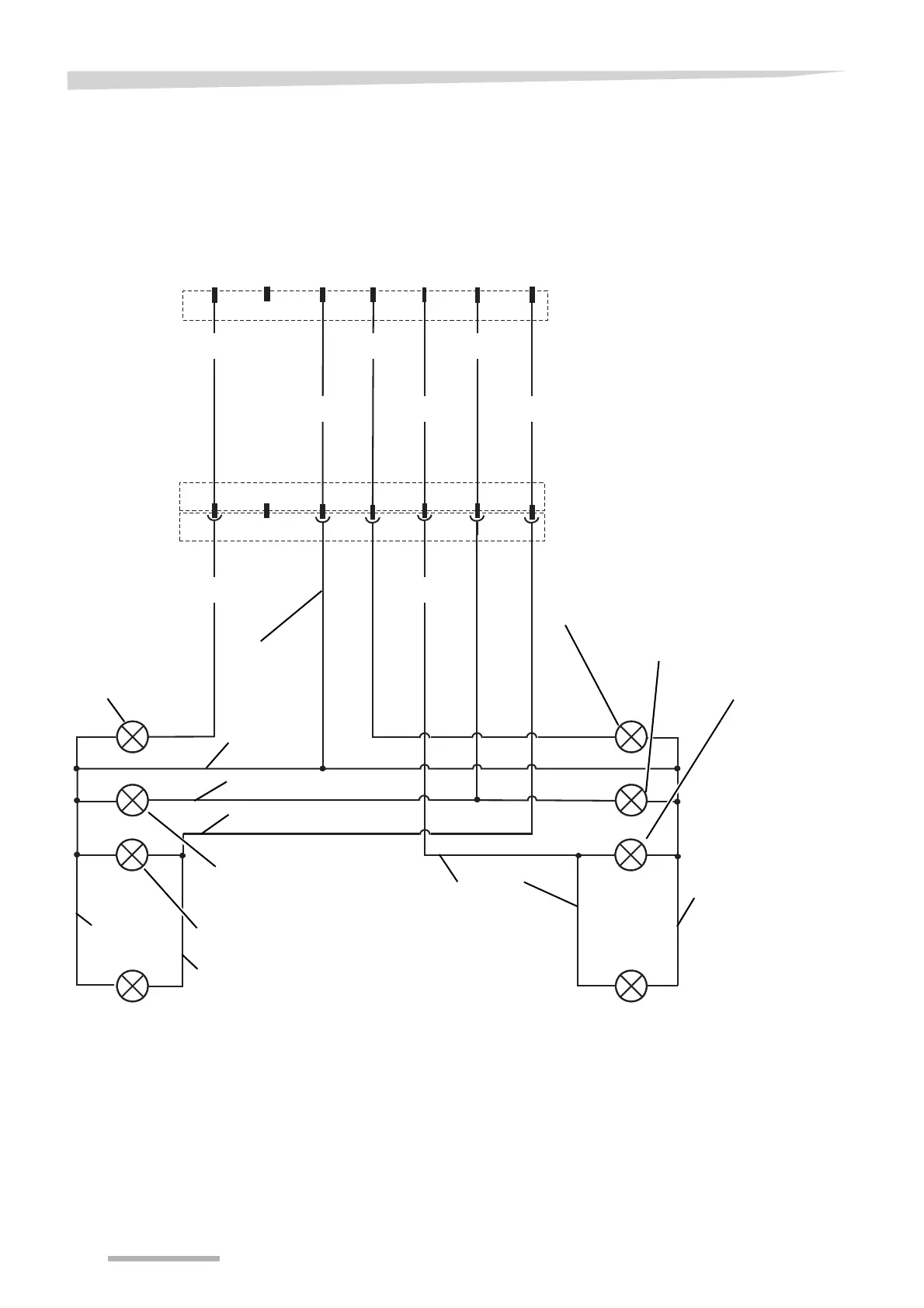

Lighting
equipment circuit
diagram
1/L 2/54g 3/31 4/R 5/58R 6/54 7/58L
Yellow
White
Green
Brown
Red
Black
Right indicator
Right brake light
Right rear light
Right side light
Yellow
White
Red
Brown
Black
White
Left side light
White
Black
Black
Connectors and sockets
7-pin in accordance with ISO 1724
Left rear light
Left indicator
Left brake light
Earth
Connecting plug
7-pin in accordance with ISO 1724
