HYDRAULIC OUTLET
HYDRAULIC OUTLET (IF
EQUIPPED)
1. Hydraulic outlet lever
WARNING
To avoid serious injury or death, shift the range
gear shift lever to the “NEUTRAL” position, and
lock the parking brake lever firmly when you leave
the vehicle while the engine is running.
Steps for operation
1. Remove the hydraulic hoses for hydraulic dump.
2. Clamp the hoses so that they are not caught in
rotary object.
3. Check the outlet and return directions of the
hydraulic coupler and then connect the hydraulic
hose.
4. Make sure that the hydraulic lever at the side of the
working vehicle is in the “NEUTRAL” position.
5. Shift the hydraulic outlet lever to the “A” position or
“C” position according to the implement of use.
6. Lock the hydraulic outlet lever at the “NEUTRAL”
position with the restricting plate after use.

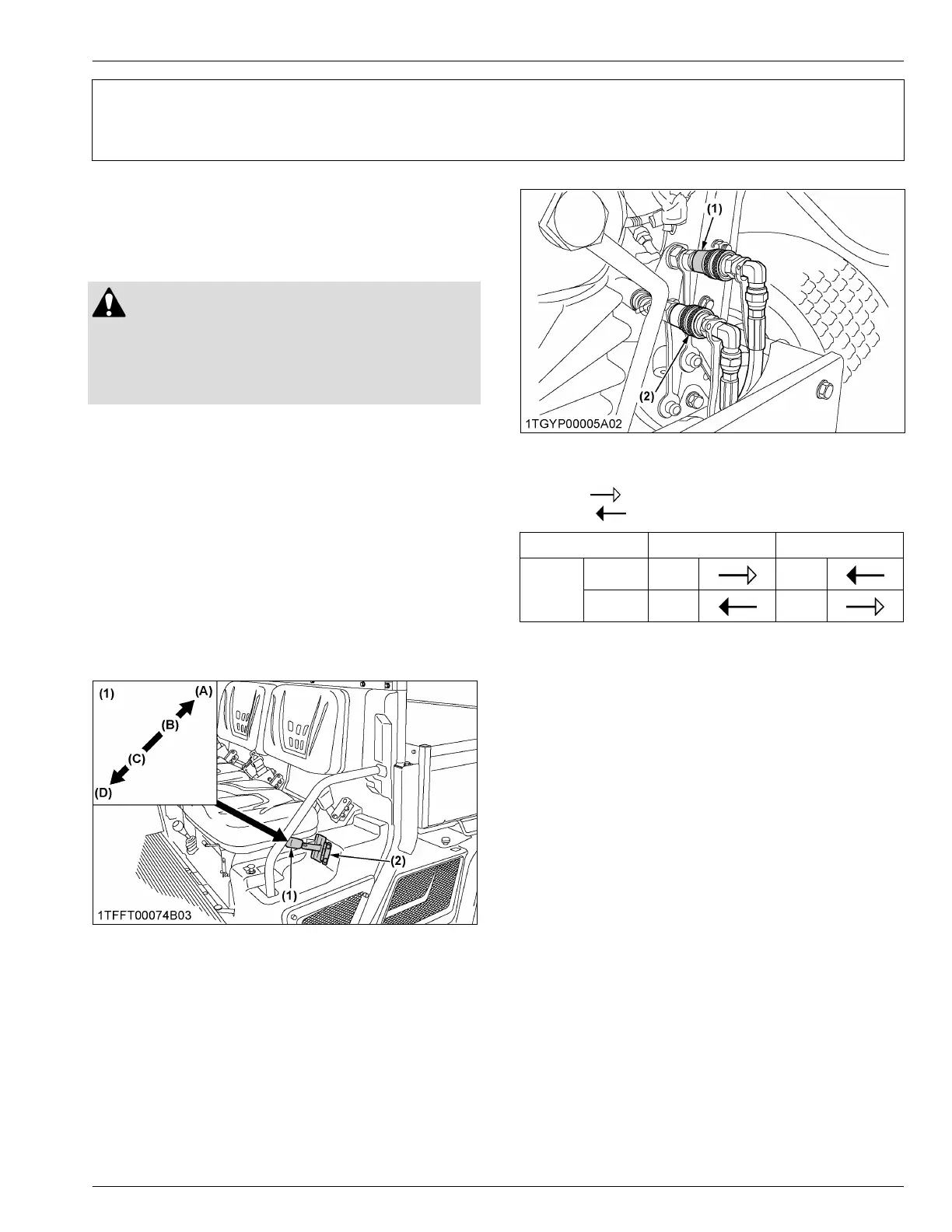

(1) Hydraulic outlet lever (if
equipped)
(2) Restricting plate (if equip-
ped)
(A) “ON”
(B) “OFF”
(C) “ON”
(D) “FLOAT with detent”
(1) Hydraulic outlet (if equipped) (yellow)
(2) Hydraulic outlet (if equipped) (white)
Outlet
Return
Lever Pull (A) Push (B)
Port
(yellow) OUT IN
(white) IN OUT
IMPORTANT :
• Do not hold the hydraulic outlet lever in the
“PULL” or “PUSH” position once the remote
cylinder has reached the end of its stroke, as
this will cause oil to flow through the relief
valve. Forcing oil through the relief valve for
extended periods will overheat the oil.
• Continuing to use the hydraulic outlet lever may
cause oil temperature to rise excessively. The
use of oil at a high temperature causes the
seals to become damaged and fail.
• Shift the hydraulic outlet lever to the
“NEUTRAL” position and then stop the engine.
• Because of the safety devices, the engine will
not start except when the hydraulic outlet lever
is placed in the “OFF” position and range gear
shift lever is placed in the “NEUTRAL” position.
• Do not operate the hydraulic outlet lever when
driving. Otherwise loss of control or failure of
the power steering could occur.
• Do not use a hydraulic implement which has a
hydraulic motor except those approved by
Kubota.
HYDRAULIC OUTLET (IF EQUIPPED) HYDRAULIC OUTLET
