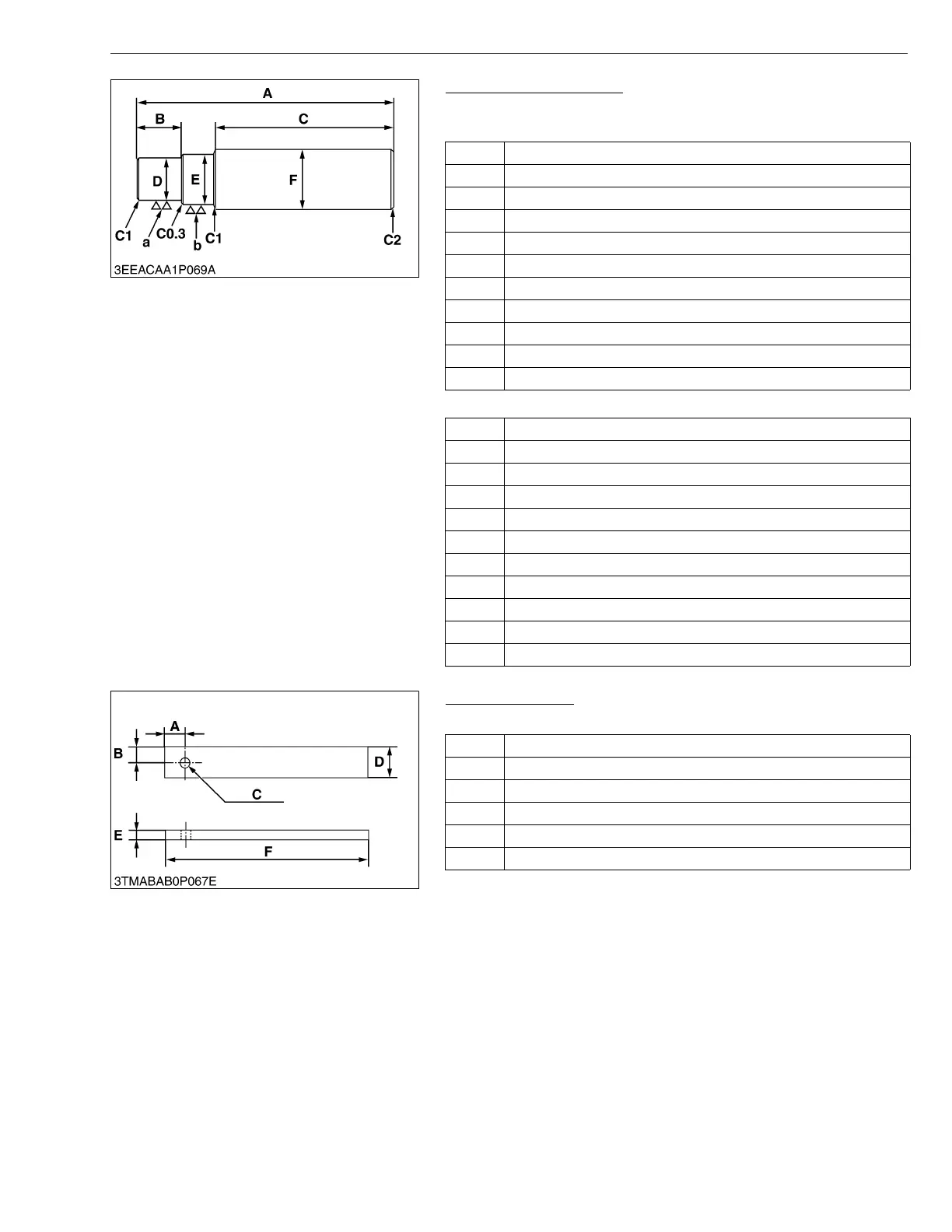

Bushing Replacing Tool
Application: Use to press out and press fit the bushing.
1. For small end bushing
2. For idle gear bushing
W12358870
Flywheel Stopper
Application: Use to loosen and tighten the flywheel screw.
W10259480
A 145 mm (5.71 in.)
B 20 mm (0.79 in.)
C 100 mm (3.94 in.)
D 19.90 to 19.95 mm dia. (0.7835 to 0.7854 in. dia.)
E 21.90 to 21.95 mm dia. (0.8622 to 0.8641 in. dia.)
F 25 mm dia. (0.98 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
A 150 mm (5.91 in.)
B 23 mm (0.91 in.)
C 100 mm (3.94 in.)
D 19.90 to 19.95 mm dia. (0.7835 to 0.7854 in. dia.)
E 21.90 to 21.95 mm dia. (0.8622 to 0.8641 in. dia.)
F 25 mm dia. (0.98 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
A 20 mm (0.79 in.)
B 15 mm (0.59 in.)
C 10 mm dia. (0.39 in. dia.)
D 30 mm (1.2 in.)
E 8.0 mm (0.31 in.)
F 200 mm (7.87 in.)
