S-29
SM-E3B SERIES WSM
DIESEL ENGINE

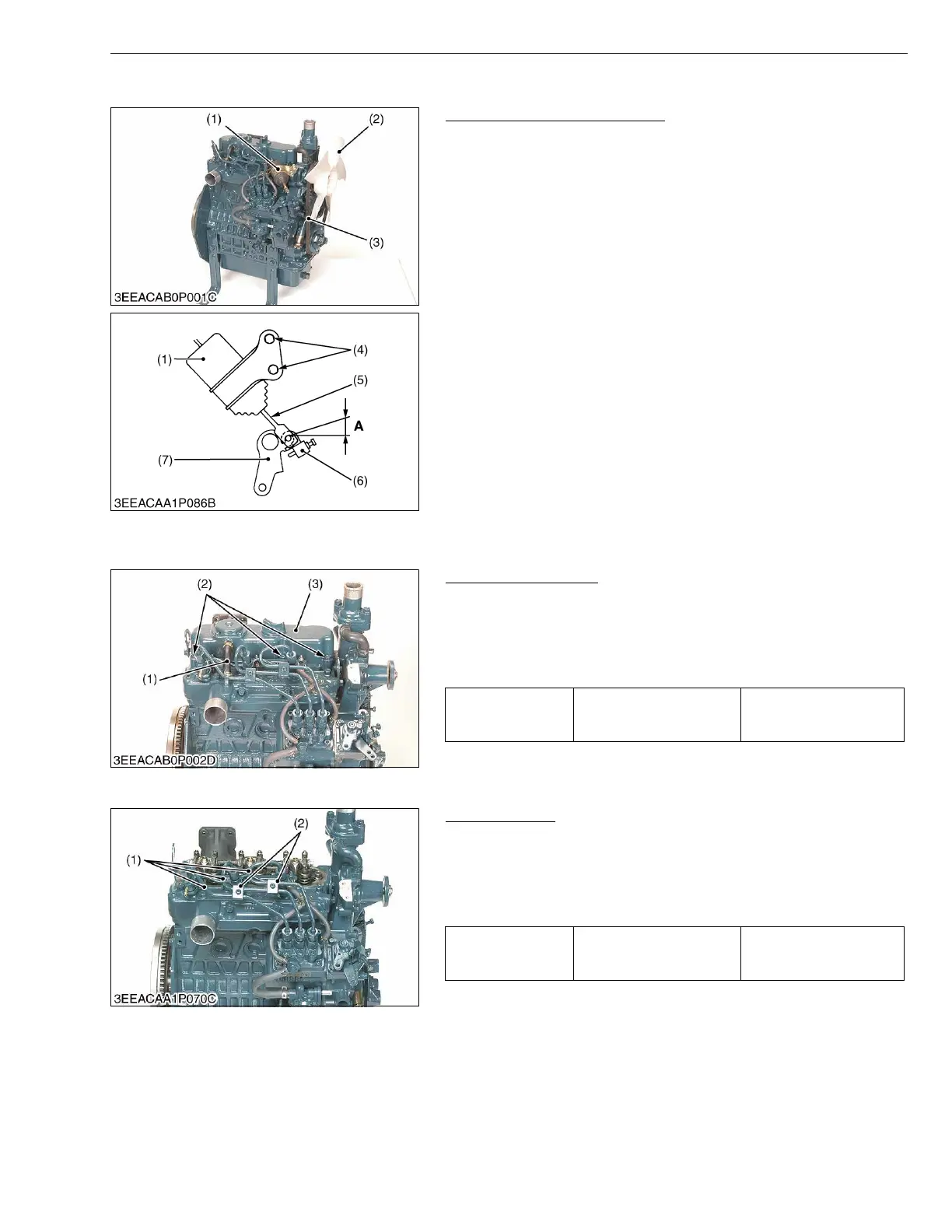

(2) External Components
Alternator, Starter and Others
1. Remove the air cleaner and muffler.
2. Remove the engine stop solenoid (1).
3. Remove the cooling fan (2), fan pulley and fan belt (3).
4. Remove the alternator.
5. Remove the starter.
(When reassembling)
• Check to see that there are no cracks on the belt surface.
• Keep the engine stop lever (7) to touch the stopper (6).
Tighten the engine stop solenoid mounting screw (4) so that
there be no gap between the engine stop lever and the
engine stop solenoid plunger (5).
• After reassembling the fan belt, be sure to adjust the fan belt
tension.
• Do not confuse the direction of the fan.
W1023769
(3) Cylinder Head, Valves and Oil Pan
Cylinder Head Cover
1. Disconnect the breather hose (1).
2. Remove the cylinder head cover screws (2).
3. Remove the cylinder head cover (3).
(When reassembling)
• Check to see if the cylinder head cover gasket is not defective.
W1028468
Injection Pipes
1. Loosen the screws to the pipe clamp (2).
2. Detach the injection pipes (1).
(When reassembling)
• Sent compressed air into the pipes to blow out dust. Then,
reassemble the pipes in the reverse order.
W1028640
(1) Engine Stop Solenoid
(2) Cooling Fan
(3) Fan Belt
(4) Engine Stop Solenoid Mounting
Screw
(5) Plunger
(6) Stopper
(7) Engine Stop Lever
A : 0 mm (0 in.)
Tightening torque Cylinder head cover screw
9.81 to 11.2 N·m
1.00 to 1.15 kgf·m
7.24 to 8.31 lbf·ft
(1) Breather Hose
(2) Cylinder Head Cover Screws
(3) Cylinder Head Cover
Tightening torque Injection pipe retaining nut
25 to 34 N·m
2.5 to 3.5 kgf·m
18 to 25 lbf·ft
(1) Injection Pipe (2) Pipe Clamp
To Next Page
