Kubota SM-E3B Series - General; 5. Special Tools (Continued)

G-37
SM-E3B SERIES WSM
G GENERAL

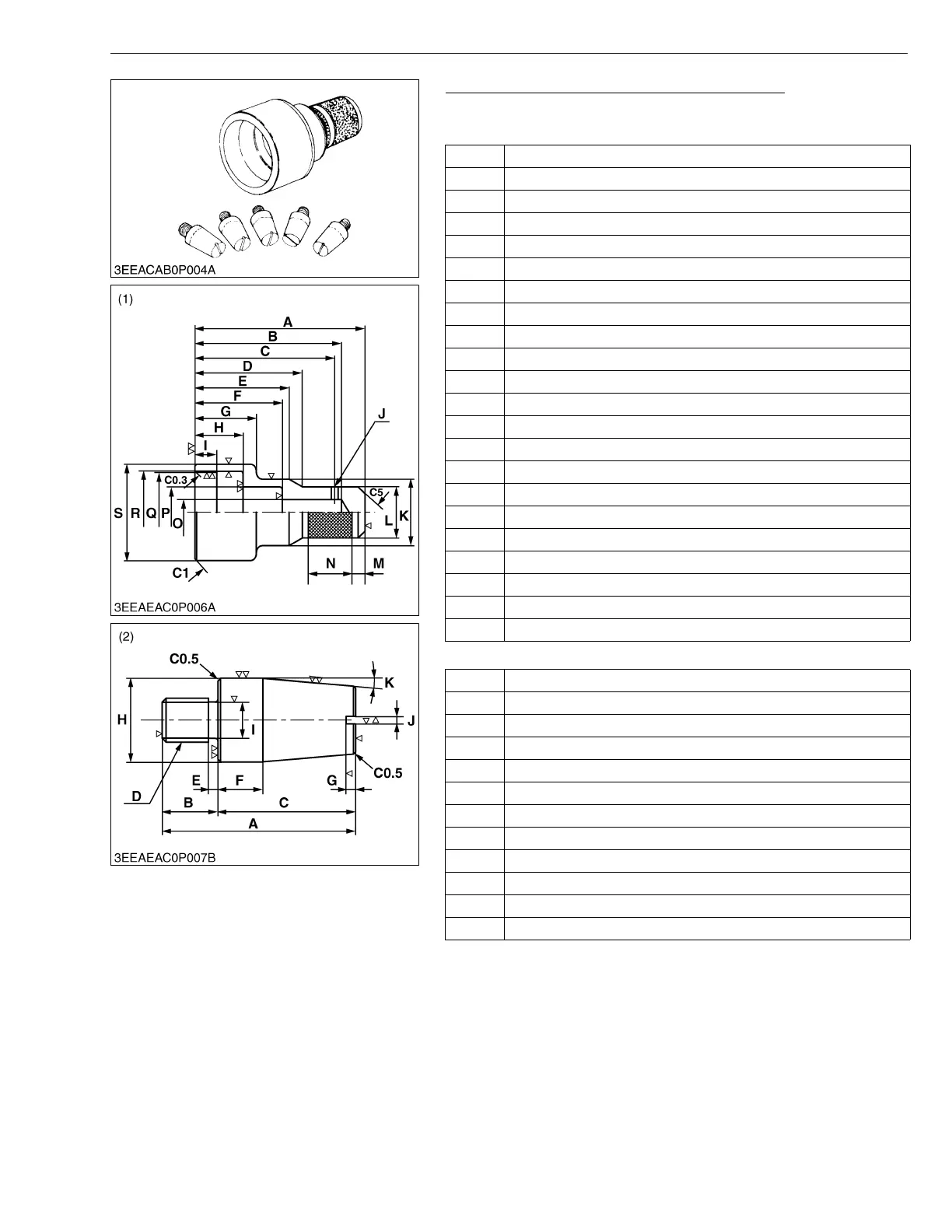

Crank Sleeve Setter (for Z482/D722/D782-E3B)
Application: Use to fix the crankshaft sleeve.
(1) Auxiliary Socket for Pushing
(2) Sleeve Guide
W1026961
A 130 mm (5.12 in.)
B 112 mm (4.41 in.)
C 107 mm (4.21 in.)
D 82 mm (3.2 in.)
E 72 mm (2.8 in.)
F 67 mm (2.6 in.)
G 47 mm (1.8 in.)
H 37.00 to 37.20 mm (1.457 to 1.464 in.)
I 17 mm (0.67 in.)
J 5.0 mm dia. (0.20 in. dia.)
K 52 mm dia. (2.0 in. dia.)
L 40 mm dia. (1.6 in. dia.)
M 10 mm (0.39 in.)
N 33 mm (1.3 in.)
O 20 mm dia. (0.79 in. dia.)
P 40 mm dia. (1.6 in. dia.)
Q 63.10 to 63.15 mm dia. (2.485 to 2.486 in. dia.)
R 64 mm dia. (2.5 in. dia.)
S 75 mm dia. (3.0 in. dia.)
C0.3 Chamfer 0.3 mm (0.01 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C5 Chamfer 5.0 mm (0.20 in.)
A 42 mm (1.7 in.)
B 12 mm (0.47 in.)
C 30 mm (1.2 in.)
D M10 × Pitch 1.25
E 2.0 mm (0.079 in.)
F 10 mm (0.39 in.)
G 2.0 mm (0.079 in.)
H 17.90 to 17.95 mm dia. (0.7048 to 0.7066 in. dia.)
I 8.0 mm dia. (0.31 in. dia.)
J 1.8 mm (0.071 in.)
K 0.09 rad (5 °)
C0.5 Chamfer 0.5 mm (0.02 in.)
KiSC issued 03, 2011 A
