S-24
SM-E3B SERIES WSM
DIESEL ENGINE

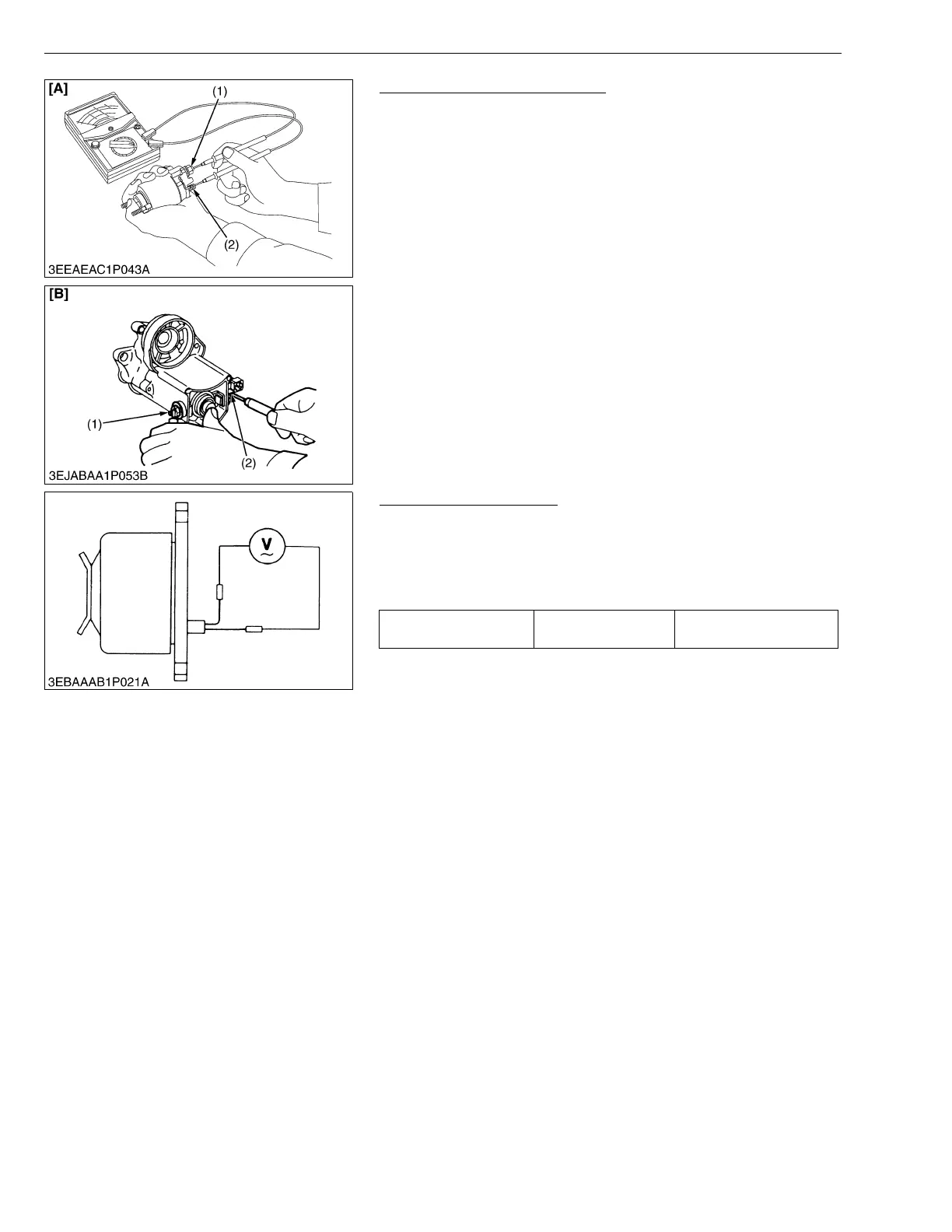

Magnet Switch Continuity Test
1. Check the continuity across the C terminal (1) and the B terminal
(2) with a circuit tester, pushing in the plunger.
2. If not continuous or if a certain value is indicated, replace the
magnet switch.
0000010771E
No-load Dynamo Output
1. Disconnect the lead wires from the dynamo.
2. Start the engine and operate the dynamo at the specified speed.
3. Measure the output voltage with a volt meter.
If the measurement is not within the specified values, replace the
dynamo.
W1021164
(1) C Terminal
(2) B Terminal
[A] Electromagnetic Drive Type
[B] Planetary Gear Reduction Type
No-load output voltage Factory spec.
AC 20 V or more at
5200 min
-1
(rpm)
