GENERAL
SM-E4B SERIES, WSM
G-35

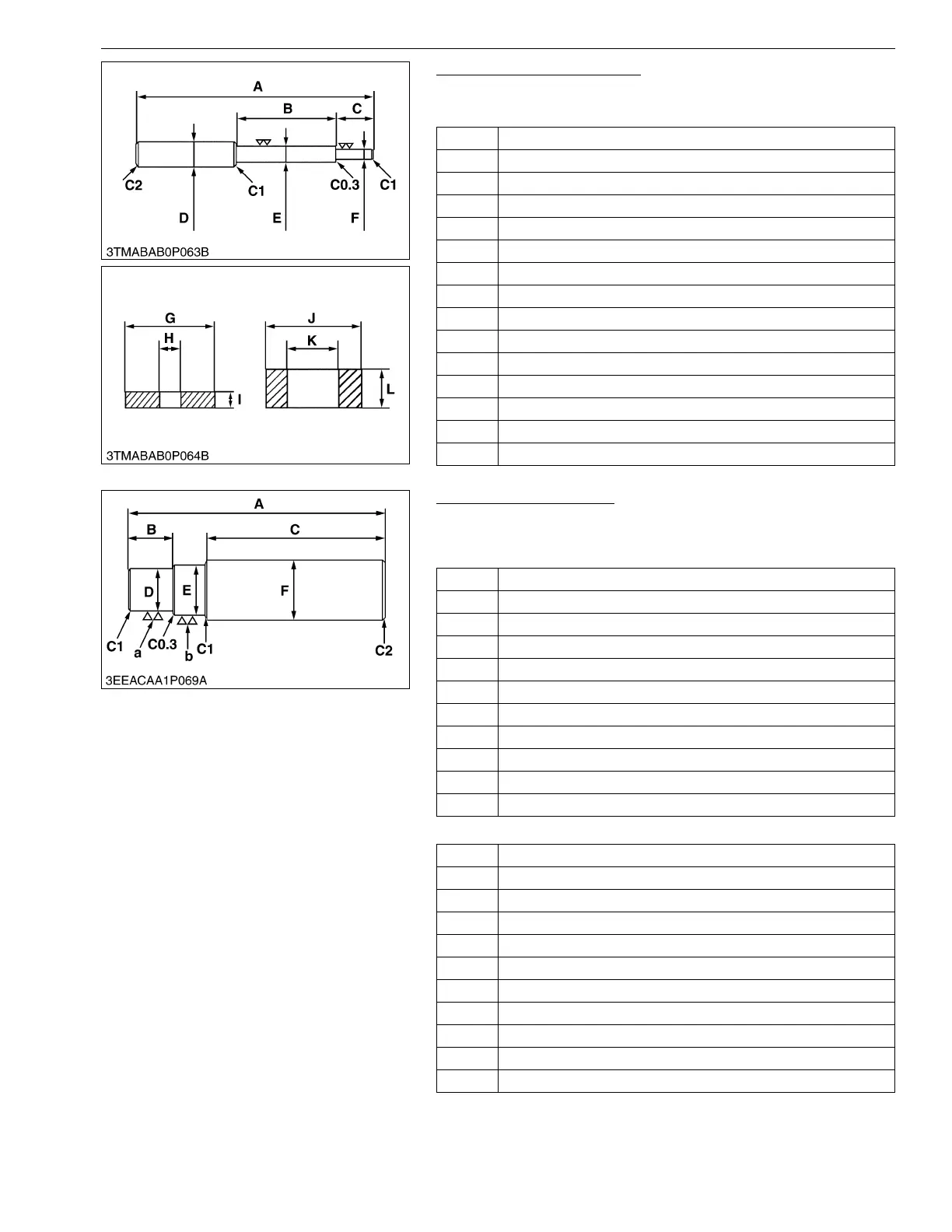

Valve Guide Replacing Tool
Application
• Use to press out and press fit the valve guide.
9Y1210785GEG0045US0
Bushing Replacing Tool
Application
• Use to press out and press fit the bushing.
Q For small end bushing
Q For idle gear bushing
9Y1210785GEG0046US0
A 220 mm (8.66 in.)
B 80 mm (3.1 in.)
C 40 mm (1.6 in.)
D 20 mm dia. (0.79 in. dia.)
E 9.960 to 9.980 mm dia. (0.3922 to 0.3929 in. dia.)
F 5.50 to 5.70 mm dia. (0.217 to 0.224 in. dia.)
G 25 mm dia. (0.98 in. dia.)
H 6.00 to 6.10 mm dia. (0.237 to 0.240 in. dia.)
I 5.0 mm (0.20 in.)
J 18 mm dia. (0.71 in. dia.)
K 10.6 to 10.7 mm dia. (0.418 to 0.421 in. dia.)
L 6.90 to 7.10 mm (0.272 to 0.279 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
A 145 mm (5.71 in.)
B 20 mm (0.79 in.)
C 100 mm (3.94 in.)
D 19.90 to 19.95 mm dia. (0.7835 to 0.7854 in. dia.)
E 21.90 to 21.95 mm dia. (0.8622 to 0.8641 in. dia.)
F 25 mm dia. (0.98 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
A 150 mm (5.91 in.)
B 23 mm (0.91 in.)
C 100 mm (3.94 in.)
D 19.90 to 19.95 mm dia. (0.7835 to 0.7854 in. dia.)
E 21.90 to 21.95 mm dia. (0.8622 to 0.8641 in. dia.)
F 25 mm dia. (0.98 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
a 6.3 μm (250 μin.)
b 6.3 μm (250 μin.)
