Flywheel Stopper
Application
• Use to loosen and tighten the flywheel screw.
9Y1210785GEG0047US0

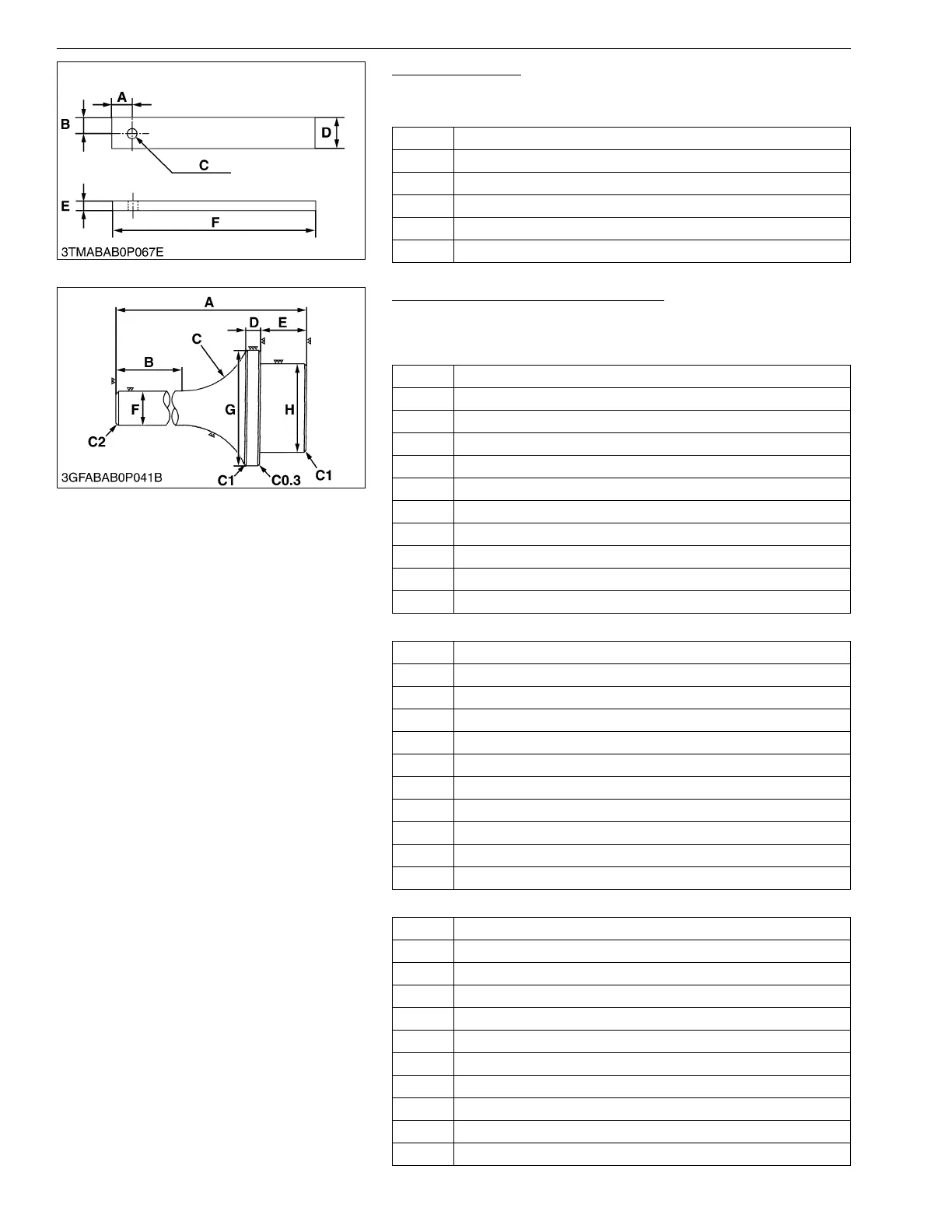

Crankshaft Bearing 1 Replacing Tool
Application
• Use to press out and press fit the crankshaft bearing 1.
Q Press Out
Q Press Fit for Z482/D722-E4B, D782-E4B
Q Press Fit for Z602/D902-E4B
9Y1210785GEG0048US0
A 20 mm (0.79 in.)
B 15 mm (0.59 in.)
C 10 mm dia. (0.39 in. dia.)
D 30 mm (1.2 in.)
E 8.0 mm (0.31 in.)
F 200 mm (7.87 in.)
A 135 mm (5.31 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 22 mm (0.87 in.)
F 20 mm dia. (0.79 in. dia.)
G 47.90 to 47.95 mm dia. (1.886 to 1.887 in. dia.)
H 43.90 to 43.95 mm dia. (1.729 to 1.730 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
A 130 mm (5.12 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 9.0 mm (0.35 in.)
E 24 mm (0.94 in.)
F 20 mm dia. (0.79 in. dia.)
G 68 mm dia. (2.7 in. dia.)
H 39.90 to 39.95 mm dia. (1.571 to 1.572 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
A 130 mm (5.12 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 9.0 mm (0.35 in.)
E 24 mm (0.94 in.)
F 20 mm dia. (0.79 in. dia.)
G 68 mm dia. (2.7 in. dia.)
H 43.90 to 43.95 mm dia. (1.729 to 1.730 in. dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.3 mm (0.01 in.)
