S-94
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
DIESEL ENGINE

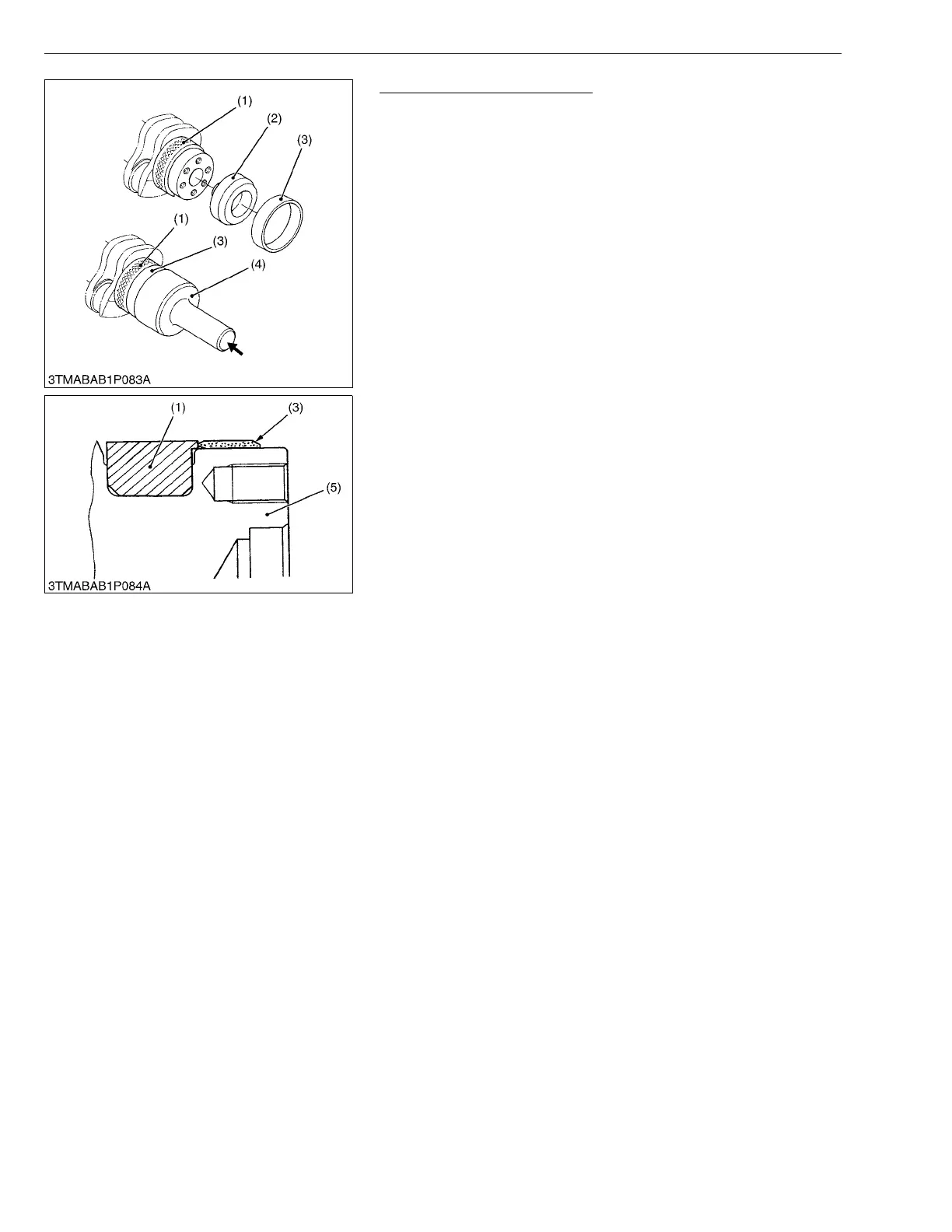

Replacing Crankshaft Sleeve
1. Remove the used crankshaft sleeve (3).
2. Set the sleeve guide (2) to the crankshaft (5).
3. Set the stopper (1) to the crankshaft (5) as shown in figure.
4. Heat a new sleeve to a temperature between 150 and 200 °C
(302 and 392 °F), and fix the sleeve to the crankshaft (5) as
shown in figure.
5. Press fit the sleeve using the auxiliary socket for pushing (4).
(Refer to “SPECIAL TOOLS”.)
NOTEQ
• Mount the sleeve with its largely chamfered surface facing
outward.
• Should heating is not enough, a sleeve might stop halfway,
so careful.
W1033503
(1) Stopper
(2) Sleeve Guide
(3) Crankshaft Sleeve
(4) Auxiliary Socket for Pushing
(5) Crankshaft
