G-41
03-M-E3B, 03-M-DI-E3B, 03-M-E3BG WSM
G GENERAL

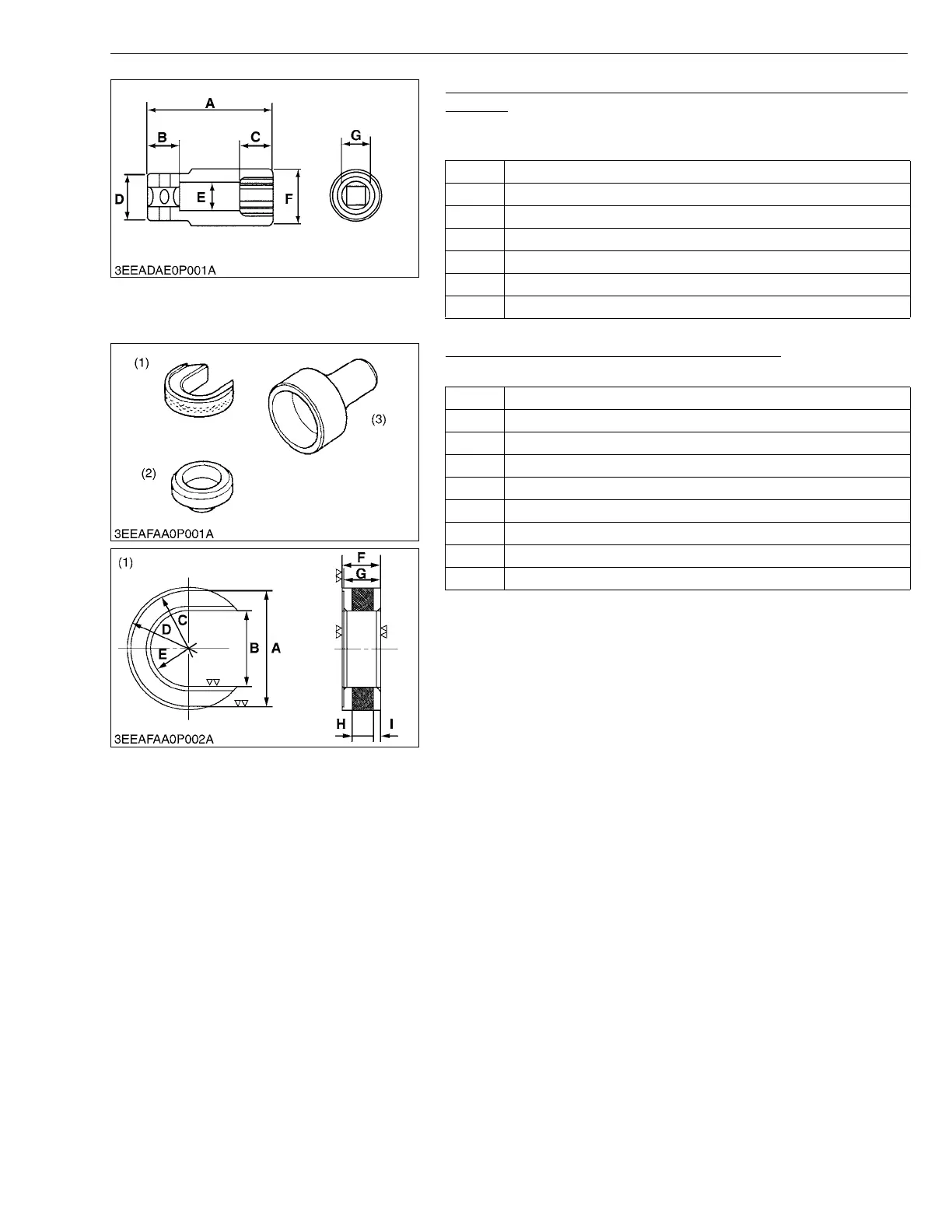

Socket Wrench for Crank Pulley Nut (46 mm Deep Socket
Wrench)
Application: Use to loosen and tighten the fan drive pulley mounting
nut.
W1044361
Auxiliary Socket for Fixing Crankshaft Sleeve
Application: Use to fix the crankshaft sleeve of the diesel engine.
W1027695
A 100 mm (3.94 in.)
B 25.0 mm (0.984 in.)
C 27.0 mm (1.06 in.)
D 45.0 mm dia. (1.77 in. dia.)
E 35.0 mm dia. (1.38 in. dia.)
F 62.5 mm dia. (2.46 in. dia.)
G 46.0 mm (1.81 in.)
A 80.0 mm (3.15 in.)
B 60.10 to 60.30 mm (2.367 to 2.374 in.)
C 80.0 mm dia. (3.15 in. dia.)
D 85.0 mm dia. (3.35 in. dia.)
E 60.10 to 60.30 mm dia. (2.367 to 2.374 in. dia.)
F 26.30 to 26.40 mm (1.036 to 1.039 in.)
G 25.85 to 25.90 mm (1.018 to 1.019 in.)
H 15.0 mm (0.591 in.)
I 5.0 mm (0.20 in.)
(1) Stopper
(2) Sleeve Guide
(3) Auxiliary Socket for Pushing
To Next Page
