STα-30 · STα-35, WSM
ELECTRICAL SYSTEM
4. LIGHTING SYSTEM

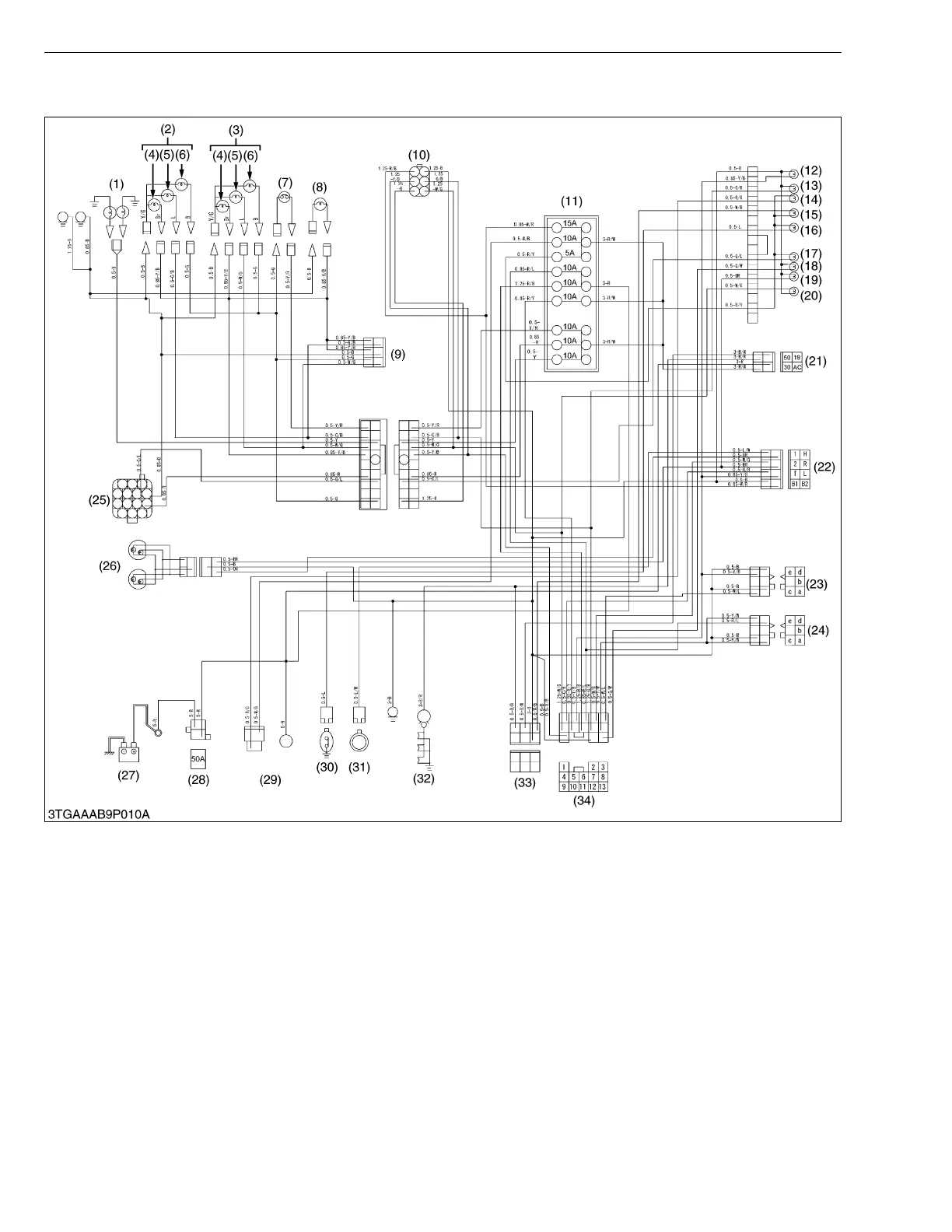

The lighting system consists of main switch, combination switch, hazard switch, parking switch, brake light switch,
head lights, combination lights, brake lights, etc..
(1) Working Light
(2) Combination Light (Left)
(3) Combination Light (Right)
(4) Position Light
(5) Hazard Light
(6) Brake Light
(7) Brake Light Switch
(8) Number Plate Light
(9) Connector (Trailer)
(10) Connector (Cabin)
(11) Fuse
(12) Illumination Lamp
(13) Hazard / Turn Signal Indicator
Lamp R
(14) Battery Charge Lamp
(15) Pre-heat Indicator Lamp
(16) Engine Oil Pressure Lamp
(17) Bi-speed Turn Indicator Lamp
(18) Hazard Indicator Lamp
(19) High Beam Indicator Lamp
(20) Hazard / Turn Signal Indicator
Lamp L
(21) Key Switch
(22) Combination Switch
(23) Hazard Switch
(24) Parking Switch
(25) Control Box
(26) Head Light
(27) Battery
(28) Slow Blow Fuse
(29) Alternator
(30) Engine Oil Pressure Switch
(31) Horn
(32) Glow Plug
(33) Glow Lamp Relay
(34) Hazard Unit
KiSC issued 11, 2006 A
