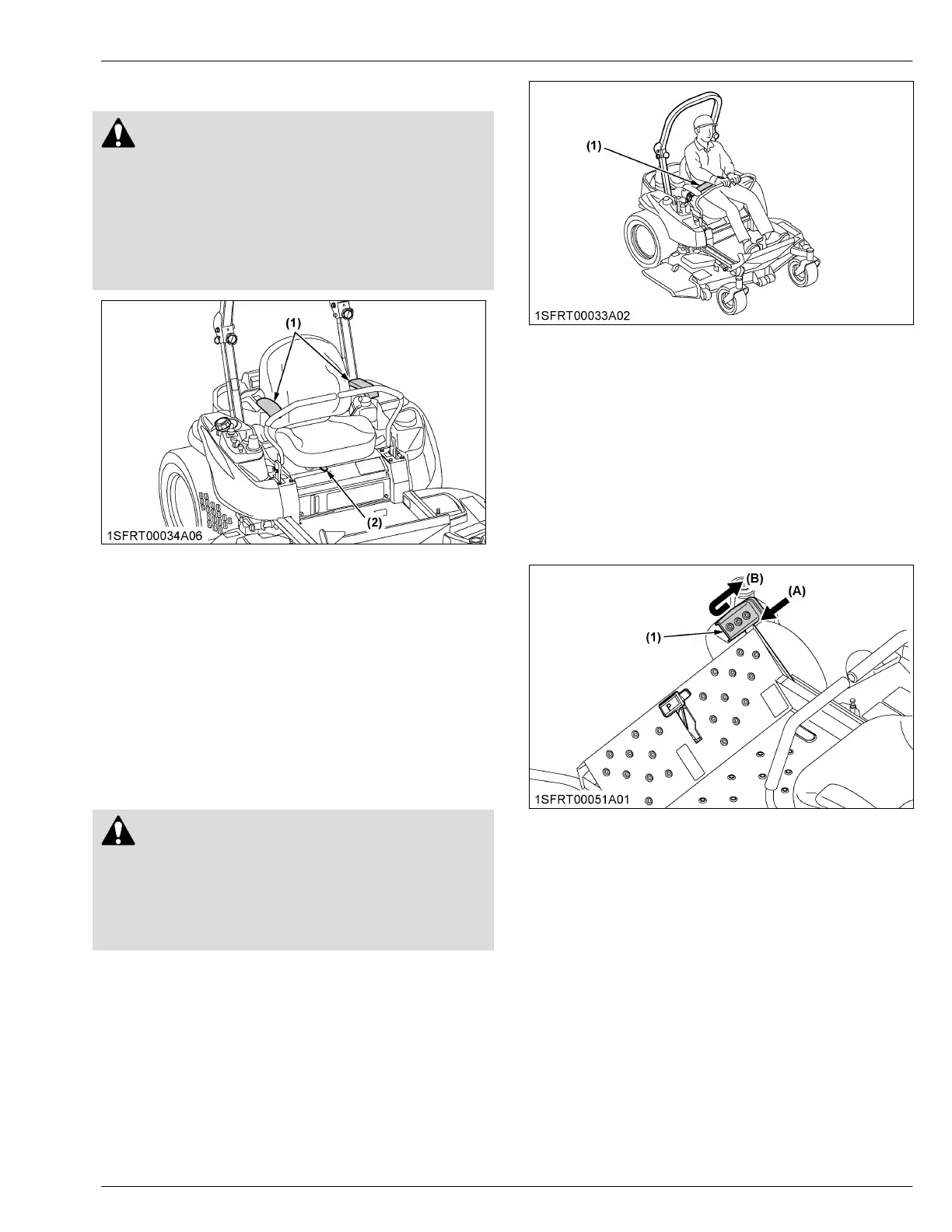

1. Operator's seat
WARNING
To avoid serious injury or death:
• Make adjustments to the seat only while the
machine is stopped.
• Make sure that the seat is completely secured
after each adjustment.
• Do not allow anyone other than the driver to
ride on the machine.
(1) Armrest (2) Seat adjusting lever
Fore-aft adjustment
Pull the seat adjusting lever and slide the seat.
Armrest
The armrest may be set at the upright position if
desired.
IMPORTANT :
• After adjusting the operator's seat, be sure to
check and see that the seat is securely locked.
2. Seat belt
WARNING
To avoid serious injury or death:
• Always use the seat belt when the ROPS is
installed.
• Do not use the seat belt if a foldable ROPS is
down or if there is no ROPS.
Adjust the seat belt for proper fit and connect to the
buckle. The seat belt is an auto-locking retractable
type.
(1) Seat belt
3. Mower lift pedal
1. The mower lift pedal is used to raise and lower the
mower deck.
• To raise and lock the mower deck at the carry
position, push the pedal to the end of the pedal
stroke.
• To lower the mower deck, push the pedal all the
way then release the pedal to the desired
mower deck cutting height.
(1) Mower lift pedal
(A) “RAISE and LOCK” position
(B) “LOWER” position
4. Throttle lever
• Move the throttle lever backward to decrease the
engine speed.
• Move it forward to increase the engine speed.
STARTING THE MACHINE OPERATING THE MACHINE
