68mmSTROKESERIES WSM.01160
M2 SYSTEME DE LUBRIFICATION f SCHNIIERUNGSSYSTEM
L
D107F025
@
I
I
I
I
I
I I
*1
I
4 4
A( (7)
I I

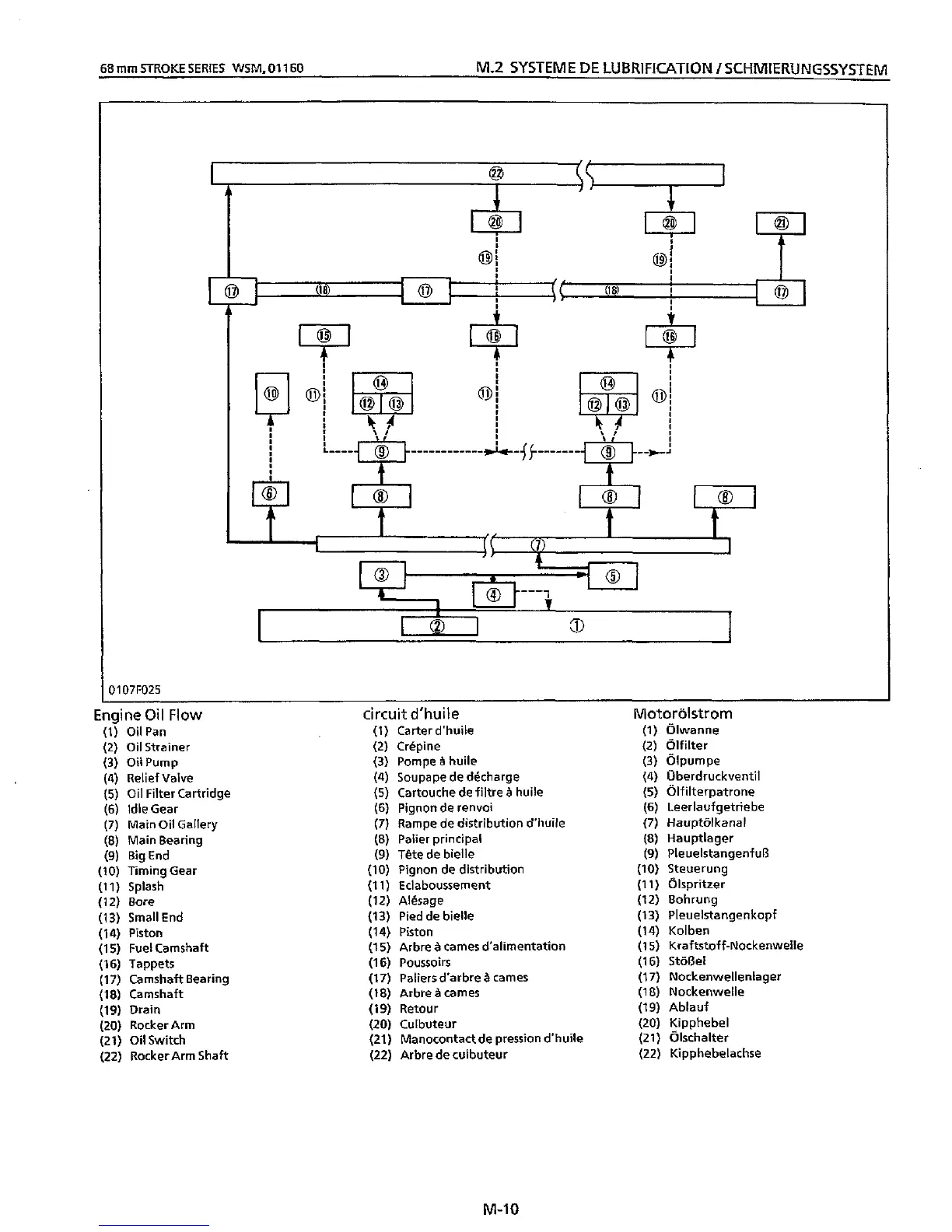

Engine Oil Flow
(1) Oil Pan
(2) Oil Strainer
(3) OilPump
(4) Relief Valve
(5) Oil Filter Cartridge
(6) IdleGear
(7) Main Oil Gallery
(8) Main Bearing
(9) Big End
(10) Timing Gear
(11) Splash
(12) Bore
(13) Small End
(14) Piston
(1 5) Fuel Camshaft
(16) Tappets
(17) Camshaft Bearing
(18) Camshaft
(19) Drain
(20) Rocker Arm
(21) Oil Switch
(22) Rocker Arm Shaft
circuit d'huile
(1) Carter d'huile
(2) Crkpine
(3) Pompe B huile
(4) Soupape de d6charge
(5) Cartouche de filtre B huile
(6) Pignon de renvoi
(7) Rampe de distribution d'huile
(8) Palier principal
(9) Tete de bielle
(10) Pignon de distribution
(1 1) Eclaboussement
(12) Alesage
(13) Pied de bielle
(14) Piston
(15) Arbre 8 cames d'alimentation
(16) Poussoirs
(17) Paliersd'arbre 8 cames
(18) Arbre 8 cames
(19) Retour
(20) Culbuteur
(21) Manocontact de pression d'huile
(22) Arbre de culbuteur
Motorolstrom
(1) ijlwanne
(2) ijlfilter
(3) ijlpumpe
(4) Uberdruckventil
(5) iilfilterpatrone
(6) Leerlaufgetriebe
(7) Hauptolkanal
(8) Hauptlager
(9) PleuelstangenfuR
(10) Steuerung
(I I) tiispritzer
(12) Bohrung
(13) Pleuelstangenkopf
(14) Kolben
(1 5) Kraftstoff-Nockenwelle
(16) StbOel
(17) Nockenwellenlager
(18) Nockenwelle
(19) Ablauf
(20) Kipphebel
(21) alschalter
(22) Kipphebelachse
M-1 0
