Putting into service

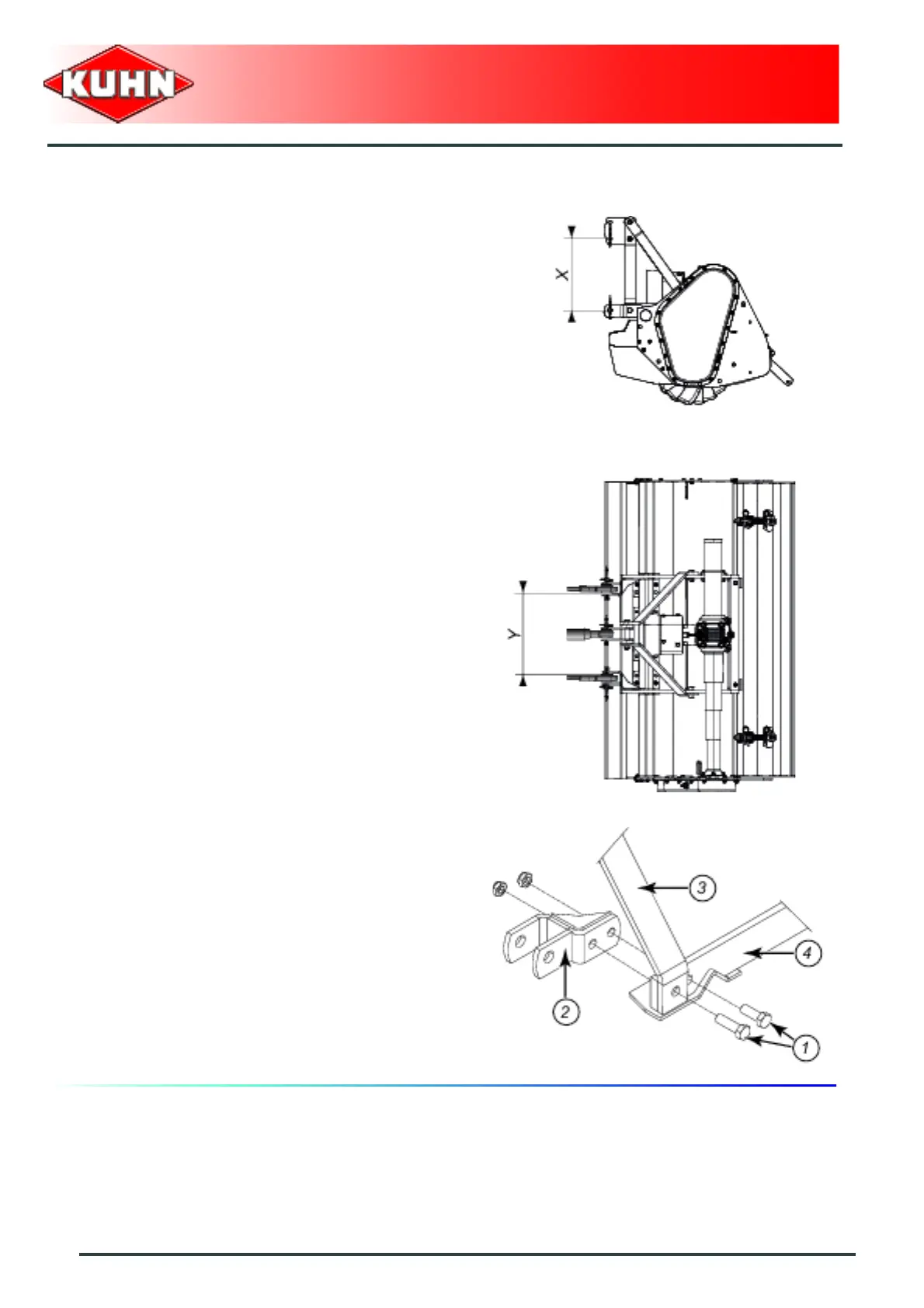

- Category 1N linkage:
• X = 390 mm (1’3.3’’)
• Y = 400 mm (1’3.7’’)
• Remove 2 bolts (1).
• Position coupling yokes (2) on the inside of hitch
frame (4).
• Position the (3) half-triangles on the outside of hitch
frame (4).
• Reinstall bolts (1).
• Tightening torque: 21 daN m (155 lbf ft).
