Instructions for work
Rotary cultivators
EL53
35

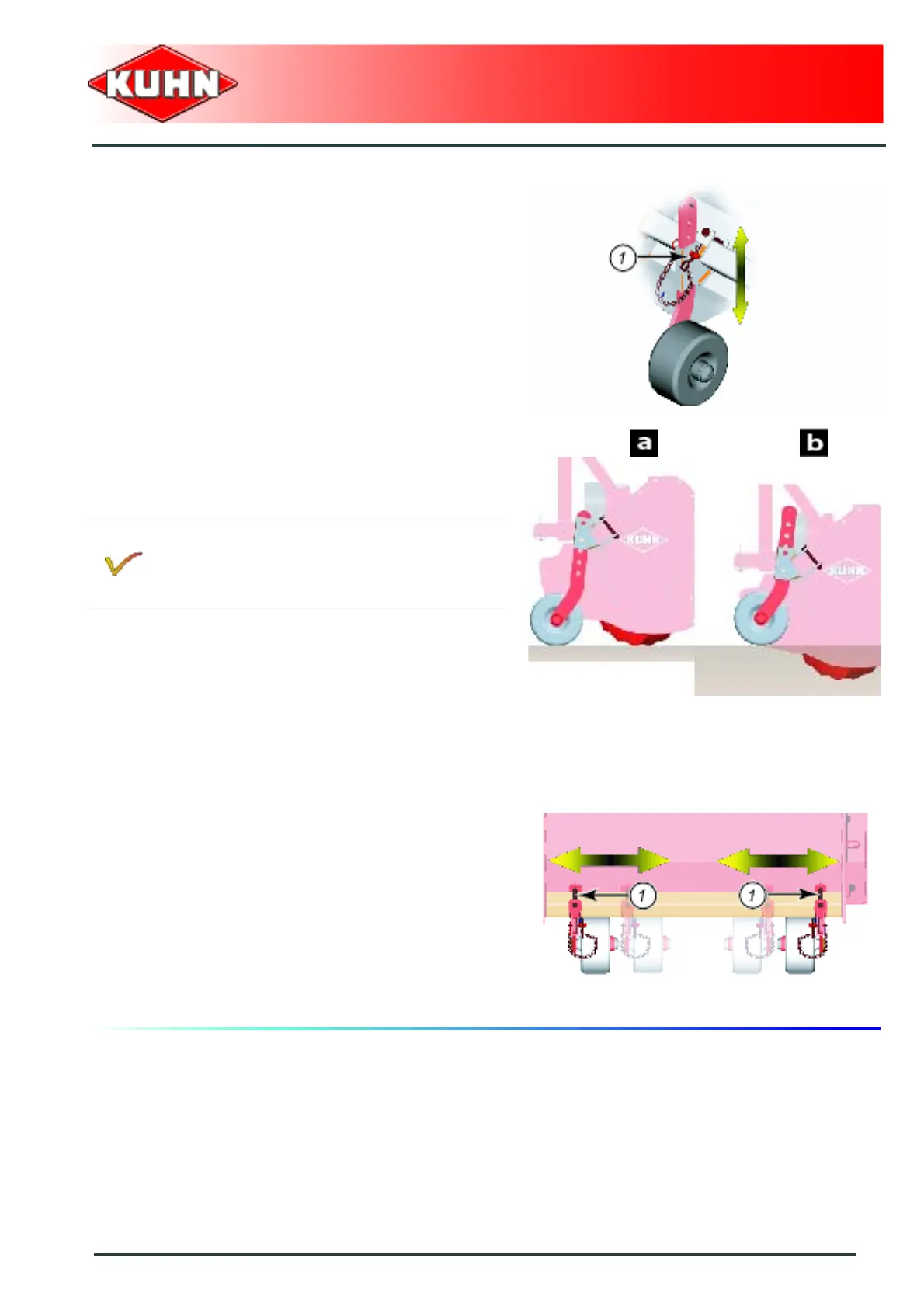

Adjusting the working depth with wheels diameter
190 mm (7.5’’):
The working depth is set by the wheel height:
- Lift the machine slightly off the ground.
- Remove R-clip and pin (1).
- Position wheel arm in hole corresponding to the
required setting.
- Insert pin (1).
- Secure using R-clip.
Adjusting the distance between wheels:
- Lift the machine slightly off the ground.
- Unscrew the 2 bolts (1).
- Slide wheel support to the required position.
- Tighten bolts (1)
• Torque: 8.5 daN m (63 lbf ft).
Relations between the working depth and the
position of the wheels:
Position a = 50 mm (2’’).
Position b = 150 mm (6’’).
