Maintenance and storage
 Tool replacement
Tool replacement
- Lower the machine.
- Uncouple PTO shaft on machine side.

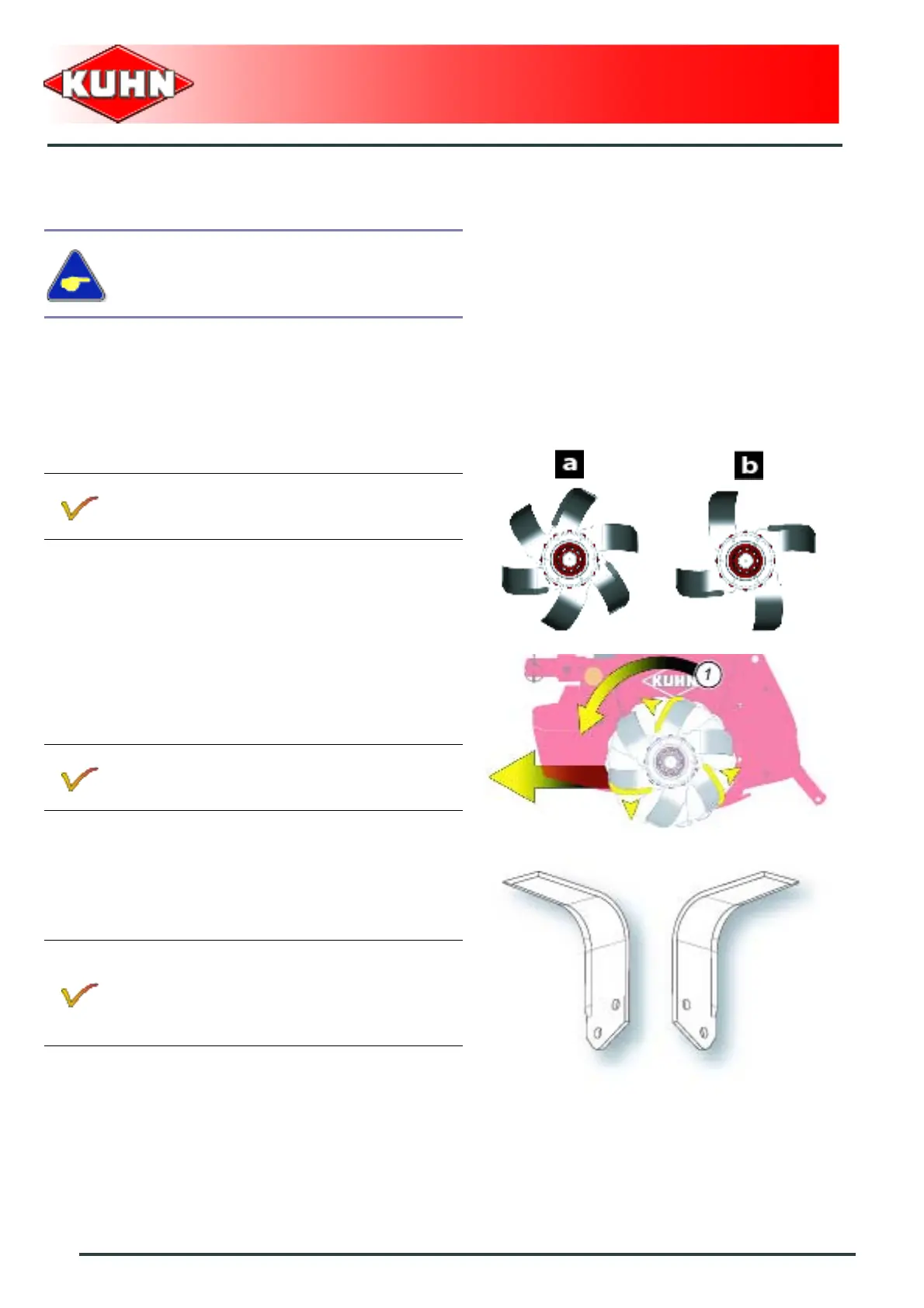

- The machine rotor is fitted as standard with C-blades.
- According to the work to carry out, there are two blade
layouts:
• Fitting of 3 pairs of blades per flange: 3 right blades
and 3 left blades (factory fitted) (a).
• Fitting of 2 pairs of blades per flange: 2 right blades
and 2 left blades (b).
- Partial replacement:
• Replace concerned tools.
• Tightening torque: 10 daN m (75 lbf ft).
Immediately replace worn or damaged parts
with genuine KUHN parts.
- Right blades: Part no. K1620010.
- Left blades: Part no. K1620000.
For a finer crumbling, it is possible to fit 6 blades
per flange.
To distinguish right blades from left blades, note
that the sharp edge faces the rotor direction of
rotation (1).
For shallow depth work, the machine can be
fitted with L-blades available through KUHN
PARTS:
- Right blades: Part no. K1601940.
- Left blades: Part no. K1601930.
