Kunbus FNL Series User Manual

FNL 11 / 31
3.2 Connect Power Supply
The power supply basis for the FNL module is 24 V DC. The
following options for a correct connection exist:
0 V is to be connected either to clamp 9 or 10 whereas +24 V to
clamp 11 or 12.
The resulting free clamps can be used for distributing the power
supply to other 24 V devices in the cabinet.
The four clamps are to be combined in one plug which is coded for
the sake of an unmistakable assignment. It can be inserted manually
and removed again with a screwdriver.
The power up current impulse of FNL is round about 1.5 A. The used
power supply may not switch off at this charge.

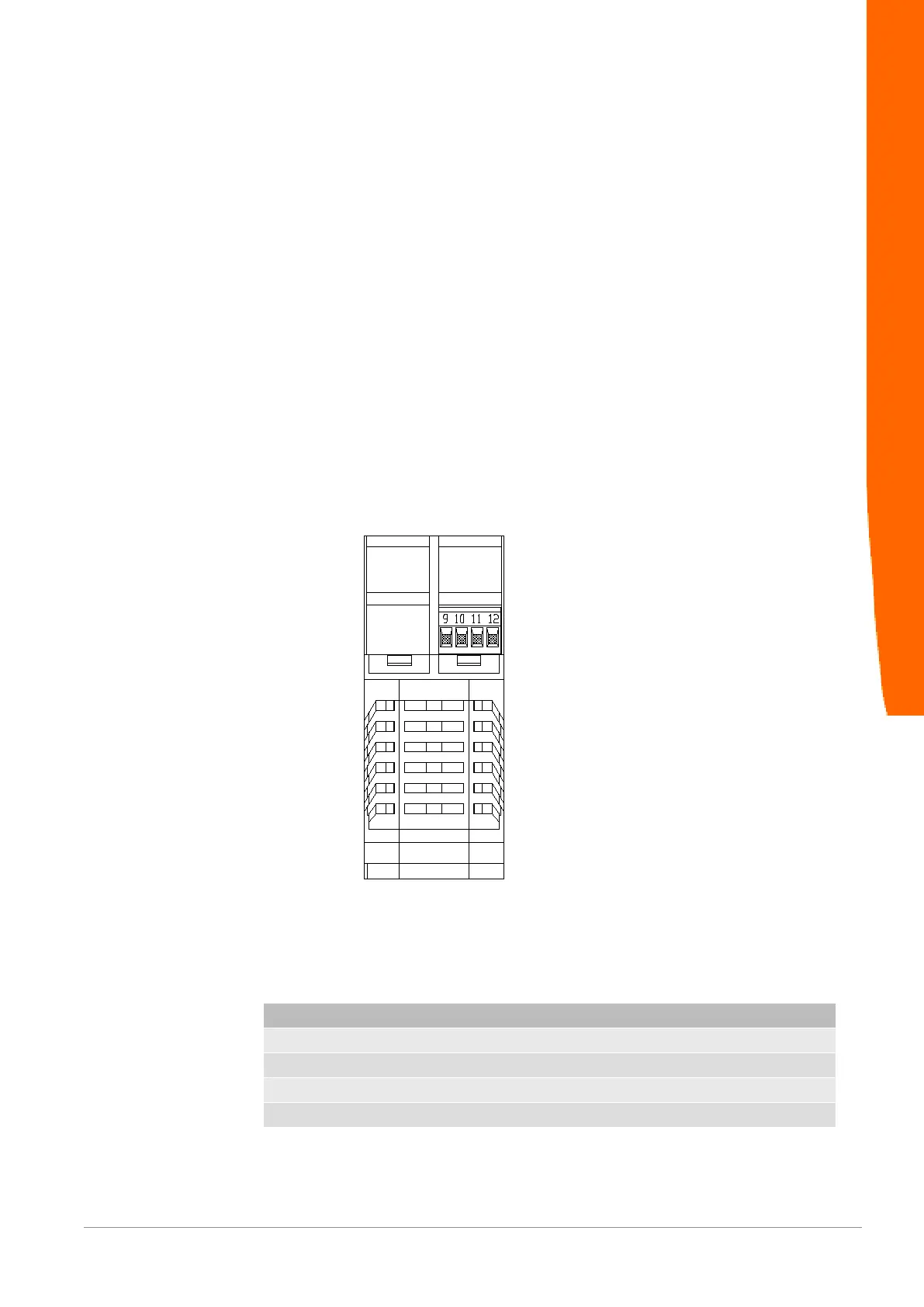

Illustration3: Power supply connection
Clamp Assignment
9 0V
10 0V
11 +24V
12 +24V
