GV 640 Service Manual 43

For internal use only

6.2 Power module

Components may be electrostatic!

Observe handling regulations!

6.3

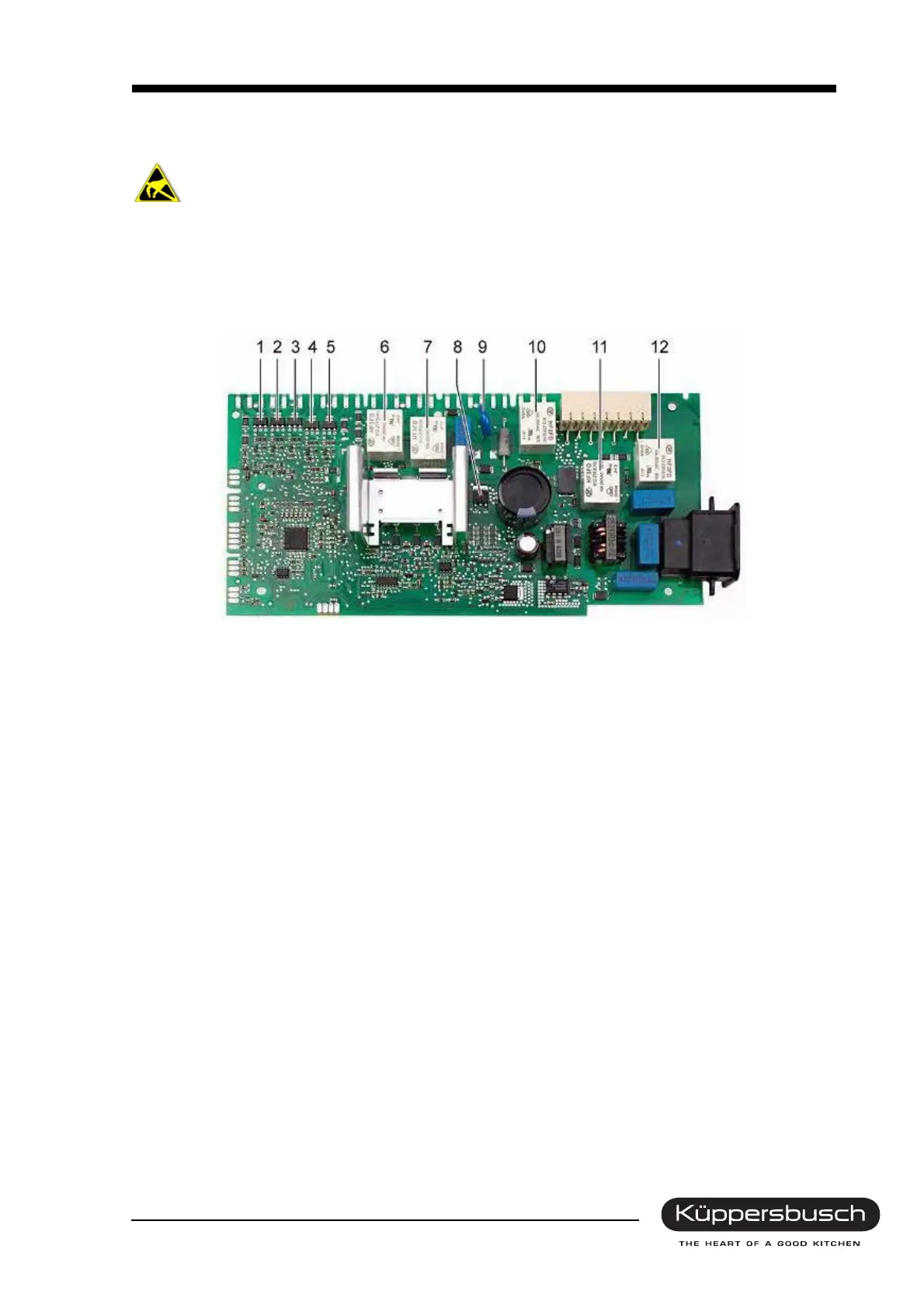

Connections

1 TH401 = Water diverter

2 TH403 = Reserve

3 TH404 = Heat exchanger drain valve

4 TH405 = Regeneration valve 11 K303 = heater

5 TH402 = Filling valve 12 K301 = heater

6 K201 = Circulation pump change-over relay

7 K202 = Discharge pump change-over relay

8 T412 = Dispenser coil

9 Varistor, excessive voltage protection

10 K304 = Starting current limiter
