ELECTRICAL CONNECTION
• Connect the hood to the mains through a two-pole switch
having a contact gap of at least 3 mm.
• Open the lighting unit by turning the knob provided.
• Ensure that the supply cable connector is properly in-
serted into the Suction device socket

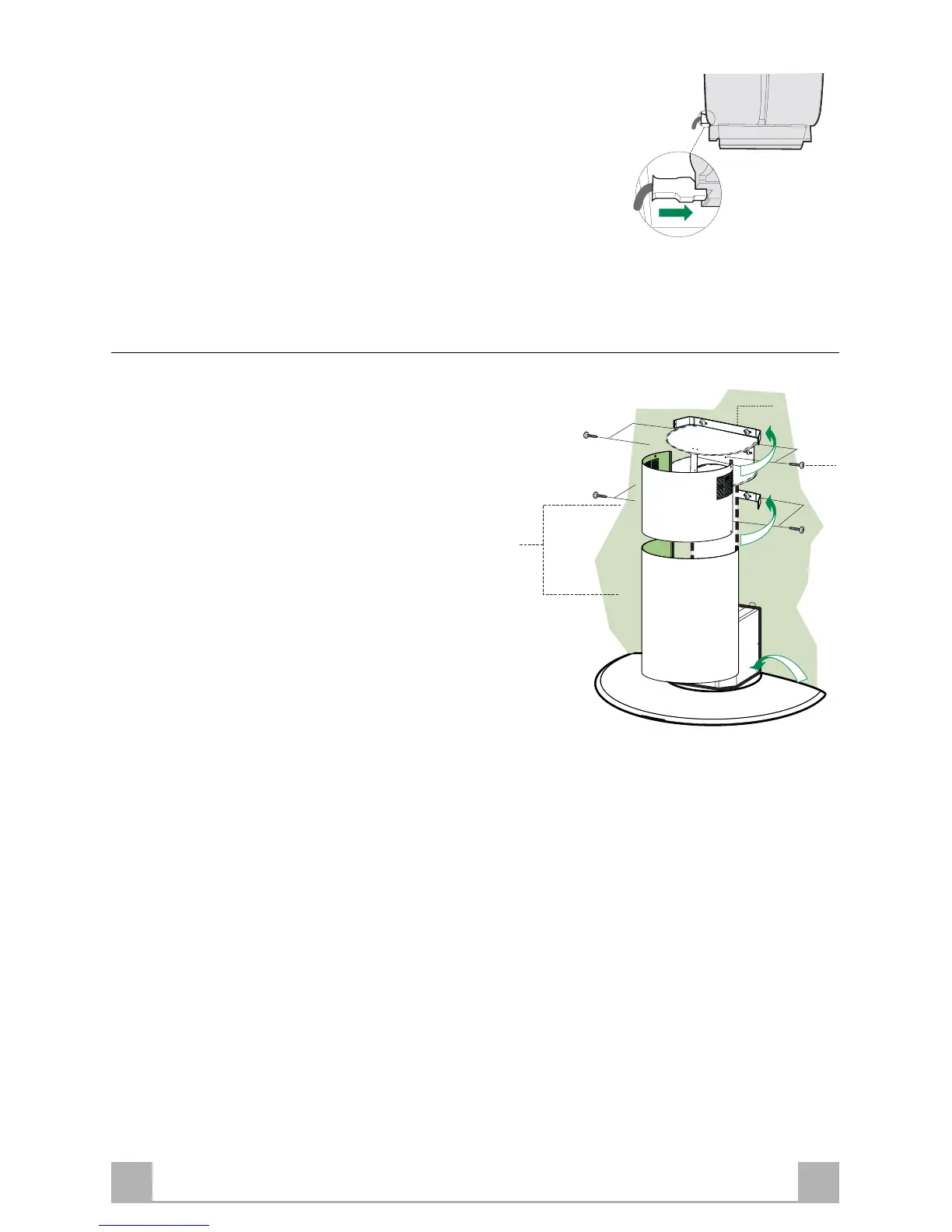

Flue assembly
Upper exhaust flue
• Slightly widen the two sides of the upper flue
and hook them behind the brackets 7.2.1, making
sure that they are well seated.
• Secure the sides to the brackets using the 4
screws 12c (2,9 x 9,5) supplied.
Lower exhaust flue
• Open the two side flaps of the Chimney stack
slightly, hook them between the upper Chimney
stack and the wall, and close them again until they
fit into place, fastening the lower part of the chim-
ney stack into the hood canopy.
12c
