Beam Alignment
It is possible that due to transportation, rigging, moving around or vibrations caused by various elements
during a set up or laser performance some of the internal optical parts can move slightly resulting in
colour misalignment.

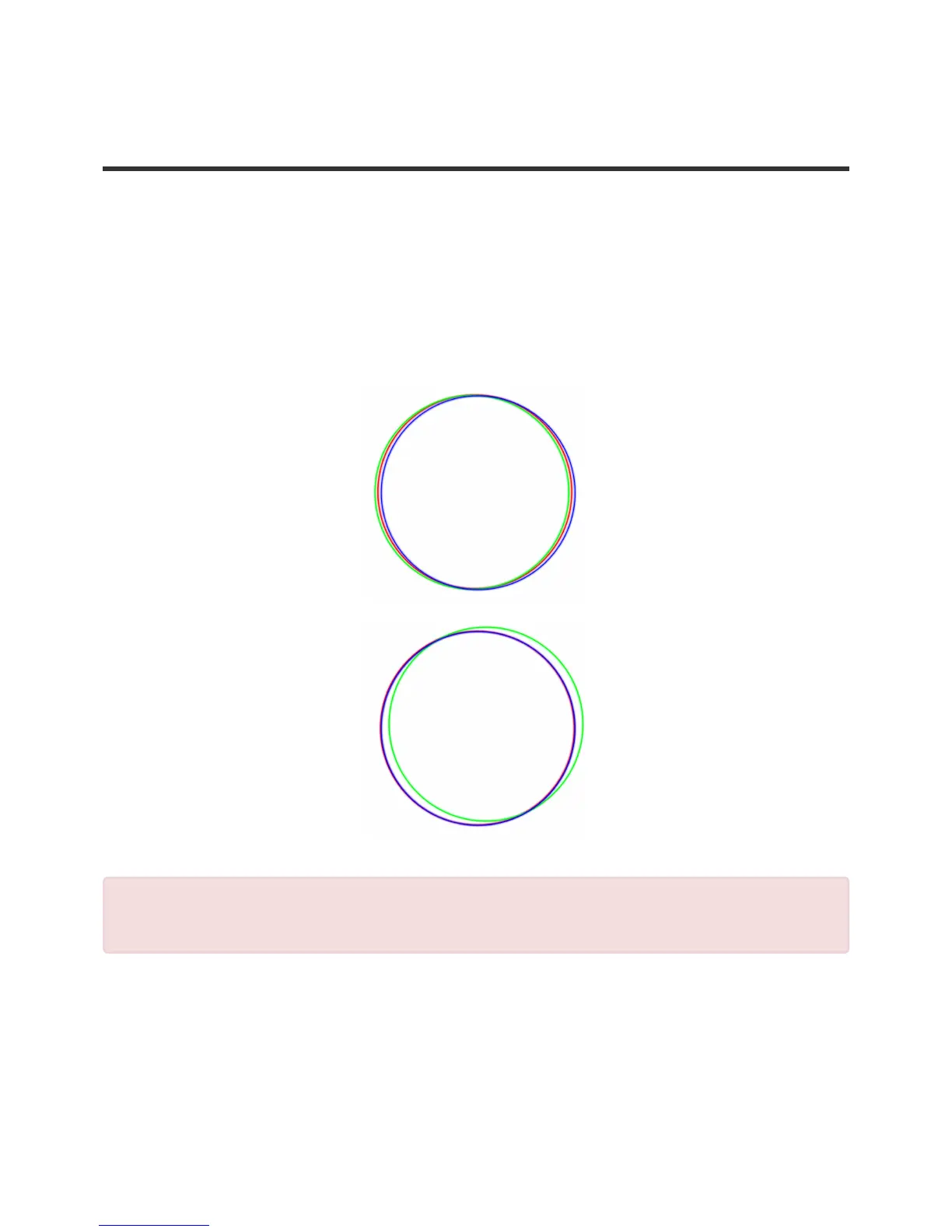

The colour misalignment is when two or more colours (red, green and blue) physically do not overlay
each other properly like on the picture below. This makes it impossible to get nicely mixed colours like
yellow, cyan, magenta and white (including all their shades). If this occurs it is necessary to carry out the
beam alignment procedure.
Beam alignment principle.
There are three laser modules within this system where each module produces one of the basic RGB
colours (red, green or blue).
The goal of the alignment procedure is to align all three beams (colours) so they overlay each other
Be cautious when aligning the beams and wear sufficient laser safety protection to avoid
accidental exposure to Class 4 laser radiation.
!
Kvant spol. s.r.o. Spectrum series - v16816
Page 24 of 38
